Product Overview

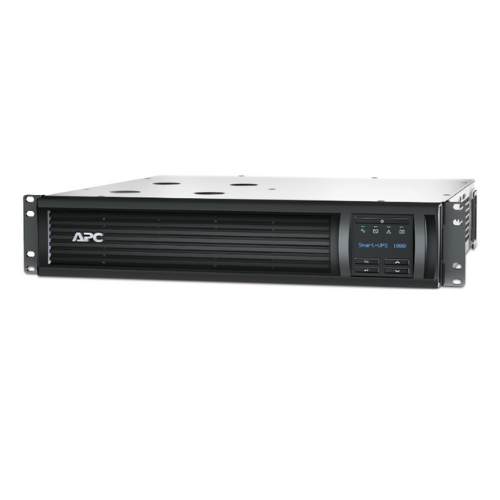

APC SMT1000RM2UC is a 1000 VA (700W) (equivalent to 1000VA) line-interactive uninterruptible power supply (UPS) that is designed to provide mission-critical IT infrastructure. Having a 2U rackmount form and 120 V input/output, this UPS offers impeccable power security to servers, network equipment, and other susceptible electronics. Its sine wave output, Automatic Voltage Regulation (AVR), and complete monitoring capability make it an ideal data center, server room, and edge computing application.
Key Features and Benefits
-
High-Capacity Power Protection: The capacity of the protection is 1000 VA (700 watts), and therefore, the devices that can be connected will be operational even when the power goes off.
-
Pure Sine Wave Output: Smooth and steady power. Gives stable and clean control, and is compatible with sensitive electronics and Active PFC power supplies.
-
Automatic Voltage Regulation (AVR): Changes slight variations in power, but does not switch to battery power, so preserves battery capacity to handle bigger disturbances.
-
Full connectivity: It comes with a SmartConnect Ethernet port, an Ethernet port that enables it to be monitored and controlled remotely on the EcoStruxure IT platform.
-
SmartSlot Compatibility: Optional network management cards add to the capabilities of the available monitoring.
-
LCD Display: LCD provides real-time status information of the device, estimated total running time, battery capacity, and load.
-
Rackmount Design: A 2U rackmount can be fitted in the regular 19-inch server racks and will utilize as much space as possible.
-
Energy Saving: It is based on lead-acid battery technology, and it is highly efficient in saving on energy consumption, as well as operating costs.
Technical Specifications
|
Feature |
Specification |
|
Model |
SMT1000RM2UC |
|
Form Factor |
2U Rackmount |
|
Input Voltage |
120V AC |
|
Output Voltage |
120V AC |
|
Capacity |
1000VA / 700W |
|
Topology |
Line Interactive |
|
Waveform |
Pure Sine Wave |
|
Outlets |
6 x NEMA 5-15R |
|
Input Plug |
NEMA 5-15P |
|
Surge Energy Rating |
680 Joules |
|
Transfer Time |
6 ms |
|
Battery Type |
Lead-Acid |
|
Recharge Time |
3 hours |
|
LCD Display |
Multifunction, hot-swappable |
|
SmartConnect Port |
Yes |
|
SmartSlot |
Yes |
|
Operating Temperature |
0–40°C (32–104°F) |
|
Operating Humidity |
0–95% (non-condensing) |
|
Dimensions (W x D x H) |
17.3" x 18.8" x 3.4" |
|
Weight |
62 lbs (28.1 kg) |
|
Warranty |
3-Year Limited Warranty |
Product Information
APC SMT1000RM2UC is designed to offer cost-effective and adequate power protection to critical IT equipment. Its line-interactive topology ensures that the connected equipment receives only clean and stable power, free from voltage fluctuations and disturbances. The UPS has a pure sine wave output, and this renders it suitable for use in sensitive electronics where the quality of power is warranted.
The SMT1000RM2UC has a SmartConnect Ethernet port and can be remotely monitored and managed through the EcoStruxure IT platform. Such an attribute is critical to IT administrators who are required to maintain constant functionality and address possible problems in the shortest possible time.

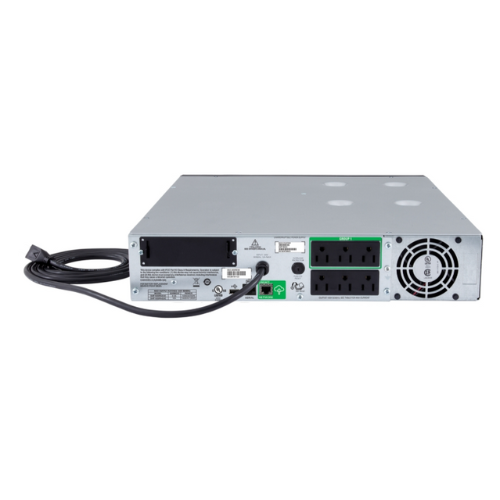

The UPS is capable of being flexible, having a 2U rackmount form factor that can be easily installed in simple 19-inch server racks. The 6 NEMA 5-15R outlets offer the necessary connectivity to support connections of various devices, and the surge protection option will divert any excessive voltage to the electronic sensitive devices in case of an AC power surge or power spike, so as to avoid damage.
To ensure long-term power outages, the SMT1000RM2UC can use extra external battery packs (purchased separately), which will ensure that the business will not shut down and continue functioning long enough.
To conclude, APC SMT 1000RM2UC is a powerful and effective UPS device that provides high-capacity power protection, long run time, and complete monitoring services, and has therefore made it the best option in terms of protecting critical IT infrastructure.
