Product Overview

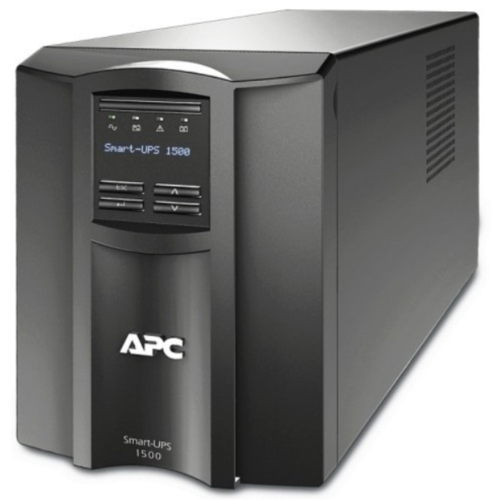

The APC SMT1500C Smart-UPS is a high-speed uninterruptible power supply (UPS) that is used to offer stable power coverage to vital electronic devices. This line-interactive UPS has a capacity of 1500 VA / 1000 W, so that the devices connected to it would have a regular and clean power supply, i.e., it will protect the devices against any power disruptions like surges, spikes, and power outages.
Key Features and Benefits
-
Pure Sine Wave Output: Pure sine wave is a smooth and consistent power output that is suitable for producing sensitive equipment like servers, networking equipment, and point of sale equipment.
-
Automatic Voltage Regulation (AVR): These correct minor variations in power without altering the battery, extend battery life, and ensure constant voltage.
-
SmartConnect Cloud Monitoring: Provides access to remote monitoring and remote control. Using a secure cloud portal, it is possible to check the status in real time and send proactive warnings.
-
SmartSlot Expansion: The facility to provide an optional Network Management Card (NMC) is also available to allow enhanced monitoring and control.
-
LCD Display: Shows clear and succinct information on the state of UPS, battery condition, and power condition.
-
Surge Protection: It is a surge protector with a maximum surge energy rating of up to 680 Joules to protect against a power surge to the equipment it is connected to.
-
Energy Star Certified: Meets the standards of high energy efficiency and reduces the usage and operating costs of electricity.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
1500 VA / 1000 W |
|
Topology |
Line Interactive |
|
Waveform Output |
Pure Sine Wave |
|
Input Voltage |
120 VAC ± 5% |
|
Output Voltage |
120 VAC ± 5% |
|
Surge Protection |
680 Joules |
|
Battery Type |
Sealed Lead-Acid (VRLA) |
|
Runtime (Full Load) |
6.5 minutes |
|
Runtime (Half Load) |
23.1 minutes |
|
Recharge Time |
3 hours |
|
LCD Display |
Yes |
|
SmartConnect |
Yes |
|
SmartSlot |
Yes |
|
Outlets |
8 x NEMA 5-15R |
|
Communication Ports |
USB, Serial, SmartConnect |
|
Dimensions (HxWxD) |
8.62" x 6.73" x 17.28" (219 x 171 x 439 mm) |
|
Weight |
24.2 lbs (11 kg) |
|
Warranty |
3 years |
Product Information
The APC SMT1500C Smart-UPS is developed to provide a range of electronic equipment with reliable power protection. Its line-interactive topology makes sure that the small-scale voltage variations are compensated without using the battery, and thus the battery life is extended. The sine wave is also stable and pure, making it good to use in sensitive equipment that needs a stable voltage.

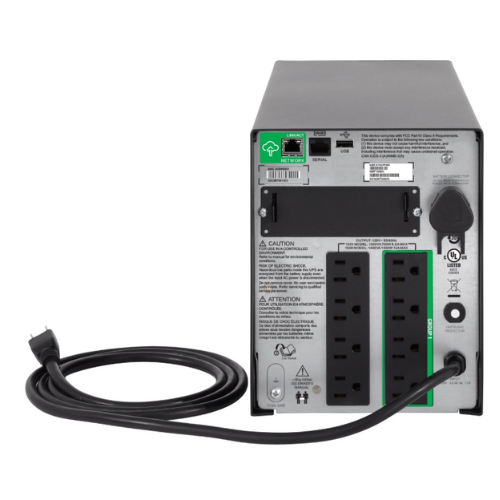

Having an LCD, users can easily track real-time data regarding the status of the UPS, battery health, and power status. The unit has 8 NEMA 5-15R outlets, hence lots of connections to various appliances. Also, the UPS has a USB and serial communication port, and as a result, there is easy integration with the devices connected to it.
To prevent power surges, the SMT1500C has a surge protection rating of 680 Joules, which diverts excess voltage to non-sensitive equipment. The unit is also an Energy Star unit that has passed strict energy efficiency requirements in order to lower the amount of electricity used as well as the operating expenses.
With a 3-year warranty, including the coverage of the UPS and batteries, the APC SMT1500C Smart-UPS is a reliable and efficient tool for power protection of critical electronic devices
