Product Overview

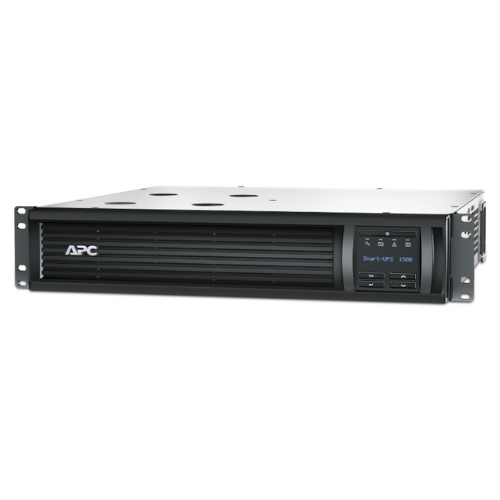

APC SMT1500RM2UC Smart-UPS 1500VA LCD RM 2U 120 V is a high-capacity uninterruptible power supply (UPS) that provides high-performance, reliable power protection to crucial electronic equipment. Having a capacity of 1440 VA/1000W, this line-interactive UPS will provide continuous and high-quality power to the sensitive equipment, which is why it is a good fit in servers, storage systems, networking equipment, and point-of-sale (POS) terminals. Its 2U rackmount design enables it to be installed efficiently in server racks, and space can be used efficiently.
Key Features and Benefits
-
Line-Interactive Topology: This topology relies on Automatic Voltage Regulation (AVR) in order to compensate for slight variations in power without transferring to a battery to conserve battery life in more severe failures.
-
Pure sine wave output: This is a smooth and stable power supply that can work with sensitive electronics and has a low chance of damaging equipment.
-
SmartConnect Port: SmartConnect Port is a service that may be utilized to make remote monitoring via clouds, with sending real-time alerts, firmware updates, and proactive support services on the APC SmartConnect platform.
-
SmartSlot: It is possible to install an optional Network Management Card (NMC) to provide advanced monitoring and management of the network.
-
LCD Display: It will provide clear and concise information about UPS status, battery health, load levels, and input/output voltage, making it easy to monitor and control.
-
Energy Star Certified: Assures efficiency in its functioning in terms of cuts on operational costs and the environmental impact.
-
Comprehensive Warranty: It comes with a 3-year UPS warranty and a 2-year battery warranty, which gives them the security and provides them with a guarantee that they can depend on.
Technical Specifications
|
Feature |
Specification |
|
Model |
APC SMT1500RM2UC |
|
Topology |
Line-Interactive with AVR |
|
Capacity |
1440VA / 1000W |
|
Input Voltage |
120V AC ± 10% |
|
Output Voltage |
120V AC ± 10% |
|
Output Waveform |
Pure Sine Wave |
|
Output Frequency |
50/60Hz ± 3Hz (synchronized to mains) |
|
Outlets |
6 x NEMA 5-15R Battery Backup Outlets |
|
Input Connection |
NEMA 5-15P with 8 ft (2.44 m) Cord |
|
Battery Type |
Sealed Lead-Acid (VRLA) |
|
Battery Voltage |
36V |
|
Recharge Time |
Approximately 3 hours |
|
Runtime at Half Load |
Approximately 25.9 minutes (500W) |
|
Runtime at Full Load |
Approximately 7.2 minutes (1000W) |
|
Dimensions (WxHxD) |
17.01" x 3.39" x 18.78" (432 mm x 86 mm x 477 mm) |
|
Weight |
58.42 lbs (26.5 kg) |
|
Warranty |
3 years (UPS), 2 years (battery) |
|
Certifications |
ENERGY STAR Certified, UL1778, cUL, CSA C22.2, FCC Class A |
Included Accessories
-
Rack Mounting Support Rails
-
USB Communication Cable
-
RS-232 Communication Cable
-
Documentation CD
-
Installation Guide
Product Information
APC SMT1500RM2UC Smart-UPS 1500 VA LCD RM 2U 120 V is designed to have dependable power protection for sensitive electronic devices. Its AVR-based line-interactive topology allows minor power variations to be fixed without switching to the battery to save battery life during more serious power outages. The sine-wave output is pure and thus is compatible with a broad variety of devices, and the SmartConnect port allows remote monitoring and control over the device via the cloud. With a 2U rackmount design, this UPS is ideally suited for deployment in server racks, utilizing space optimally in data centers and network closets.
