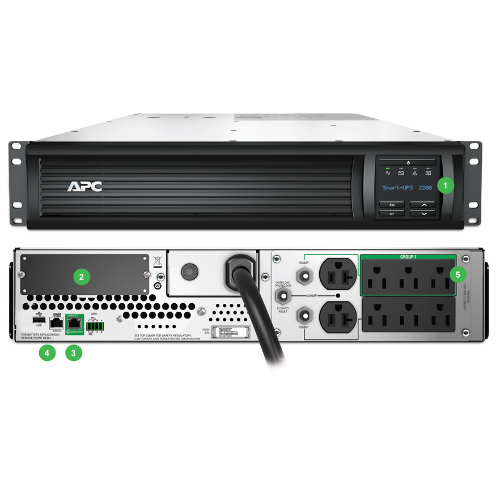

Product Overview
APC SMT2200RM2UC is a high-performance uninterruptible power supply (UPS) with a line interactive design and is designed to provide IT equipment with a reliable, clean, and continuous power. With a capacity of 2200 VA / 1920 W pure sine output, this 2U rackmount UPS will shield against power outages, surges, spikes, and other forms of power distortion in servers, network, storage, and telecommunications equipment. It can be either rack-mounted or installed in tower formation, and hence can be used in the enterprise environment and data centres because of its small size.
Key Features and Benefits
-
Clean Sine Wave Output: Provides pure, consistent power to ensure the high performance and stability of sensitive equipment.
-
Automatic Voltage Regulation (AVR): Upsets the changes in voltage without battery operation, which prolongs the battery life and protects the interconnected appliances.
-
SmartConnect Port: Allows remote monitoring and management (Cloud-based). Gives real-time UPS status, diagnostics, and firmware updates.
-
SmartSlot Expansion: Optional network management cards are supported to provide more monitoring and control.
-
LCD Display: Provides real-time and easy monitoring of UPS status, battery health, and load levels.
-
Multipurpose Outlets: 6 NEMA 5-15R and 2 NEMA 5-20R outlets are installed to allow flexibility.
-
Energy-Efficient Design: Operating costs will be minimized by providing features that conserve energy.
-
Long Run Duration: Supports the use of extra battery packs to ensure the continuity of working even in case of extended power outages.
-
Extensive Warranty: 3-year warranty and a 400,000 Connected Equipment Guarantee, to be at peace.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
2200 VA / 1920 W |
|
Topology |
Line-Interactive |
|
Output Voltage (Battery Mode) |
120V ±5% |
|
Output Waveform |
Pure Sine Wave |
|
Input Voltage |
120V ±10% |
|
Frequency |
50/60 Hz ±3 Hz |
|
Power Factor |
0.9 |
|
Battery Type |
Valve Regulated Lead-Acid (VRLA) |
|
Battery Runtime (Half Load) |
~10 minutes |
|
Recharge Time |
~4 hours |
|
Form Factor |
2U Rack/Tower Convertible |
|
Outlets |
6 x NEMA 5-15R, 2 x NEMA 5-20R |
|
Dimensions (WxDxH) |
17" x 26.9" x 3.5" (432 x 683 x 89 mm) |
|
Weight |
39.57 lbs (17.95 kg) |
|
Certifications |
UL1778, CSA C22.2 No. 107.3-05, FCC Class B |
|
Warranty |
3-year limited warranty |
|
Connected Equipment Guarantee |
$400,000 |
Product Information
The SMT2200RM2UC offers high-quality power protection, offering dependable line interactive topology and pure sine output to protect critical IT equipment. It is a 2U rackmount capable of very efficiently fitting in server racks or offices in a small office setting, with the SmartConnect port enabling remote monitoring and control. The LCD and SmartSlot expansion are beneficial to administrators as they can easily and nearly effortlessly monitor the battery status and the health of the system.
Having the capability to accommodate extra battery packs, this UPS will be able to provide a more extended period of operation when there is a long period of outage, which will keep vital equipment running. The SMT2200RM2UC offers reliable power protection to the needs of enterprise and data centre power protection with a 3-year warranty and a large Connected Equipment Guarantee.
