Product Overview

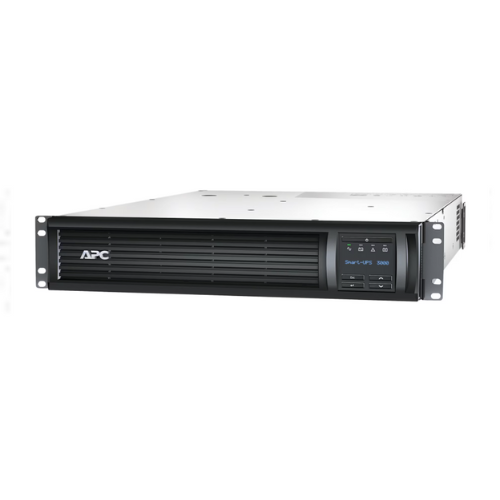

The APC SMT3000RM2UC Smart-UPS is a powerful uninterruptible power supply (UPS) that provides a reliable battery backup and surge protection for critical electronic equipment. This 2U rackmount UPS has the capacity of 3000VA/2700W, capable of operating continuously when power is cut off, and that is why this device is suitable for servers, storage systems, network closets, and point-of-sale applications. Its topology is line-interactive with Automatic Voltage Regulation (AVR) to provide clean and stable power, and the pure sine wave output is compatible with sensitive electronics.
Key Features and Benefits
-
AVR-based, Line-Interactive Topology: Corrects minor power variations and does not switch to battery, so that the battery lasts longer and the voltage does not vary.
-
Pure Sine Wave Output: Gives pure and uninterrupted power to delicate electronics, therefore, rendering maximum performance and durability.
-
SmartConnect Cloud Monitoring: Helps to monitor systems remotely, update firmware, and send proactive email messages to improve system reliability and minimize downtime.
-
LCD Display: It provides a real LCD display of UPS status, battery capacity, and load levels that make it easy to monitor and manage.
-
ENERGY STAR Certified: Passes high standards of energy efficiency that help lower the operation costs and impact on the environment.
-
Flexible Outlets: 6 NEMA 5-15R and 2 NEMA 5-20R outlets give more than enough connectivity to allow connecting many devices.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
3000VA / 2700W |
|
Topology |
Line Interactive |
|
Input Voltage |
120V AC ± 5% |
|
Input Voltage Range |
82–144V (adjustable 75–154V) |
|
Output Voltage |
120V AC ± 5% |
|
Output Waveform |
Pure Sine Wave |
|
Transfer Time |
4–8 ms |
|
Outlets |
6 x NEMA 5-15R, 2 x NEMA 5-20R |
|
Surge Energy Rating |
1080 Joules |
|
Battery Type |
Sealed Lead-Acid |
|
Recharge Time |
3 hours |
|
Runtime at Half Load |
Approximately 16 minutes |
|
Runtime at Full Load |
Approximately 3 minutes |
|
Dimensions (WxHxD) |
17.0" x 3.5" x 26.9" (432 mm x 89 mm x 683 mm) |
|
Weight |
44.3 kg (97.6 lbs) |
|
Warranty |
3 years (repair or replace) |
|
Compliance |
ENERGY STAR Certified, RoHS, CE, UL Listed |
Product Information
The APC SMT3000RM2UC Smart-UPS is designed to provide efficient protection of electronic devices of critical importance in case of a power blackout. Its AVR-based line-interactive topology ensures that the equipment connected to it is supplied with a steady voltage, and the pure sine wave output does not affect some sensitive electronics. The UPS has 6 x NEMA 5-15R and 2 x NEMA 5-20R outlets, which provide a lot of connectivity to various devices. The SmartConnect feature can be used to monitor and manage cloud-based systems, enabling real-time information on UPS performance and making proactive maintenance available. This UPS is available in a 2U rackmount design, so it can fit in the home and the office setting, and provides good protection without eating too much space.
