Product Overview

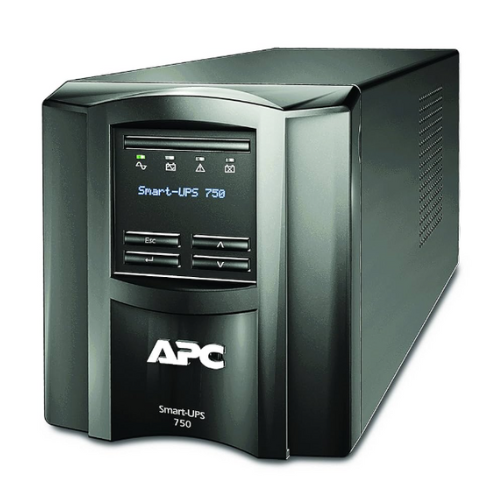

The APC SMT750C Smart-UPS is a UPS uninterruptible power supply (UPS) that is a line interactive, which is intended to provide reliable surge protection and battery backup of sensitive electronic equipment. The small tower UPS is rated at 750 VA/500 W, so it will not be affected by power outages and will protect against hostile voltage variations, and this may be used in home offices and small companies, as well as in the IT fields.
Key Features and Benefits
-
Line-Interactive Topology: Automatically adaptive to small swings in power without switching to battery, so battery life is saved, and energy usage is minimized.
-
Pure Sine Wave Output: Gives even power, which is stable and does not produce any damage, so that it may be used with sensitive electronics.
-
SmartConnect Cloud Monitoring: Remotely monitor and manage using a web portal, receiving proactive alerts and updates, and updating firmware.
-
Automatic Voltage Regulation (AVR): Raises or lowers the voltage to maintain it steady to ensure the equipment connected to the booster does not operate in an under-voltage or over-voltage condition.
-
LCD Display: It has real-time status and diagnostics, which means that a customer can monitor how UPS is performing and the state of the battery at any given time easily.
-
Small Size: Space-saving tower form is small and does not need to be rack-mounted, and it can be installed easily in the home or office interior.
-
ENERGY STAR Certified: In this case, it has high energy efficiency standards, which reduce the operation and environmental cost.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
750VA / 500W |
|
Topology |
Line Interactive |
|
Output Waveform |
Pure Sine Wave |
|
Input Voltage |
120V AC ± 10% |
|
Output Voltage |
120V AC ± 10% |
|
Output Frequency |
50/60Hz ± 3Hz (synchronized to mains) |
|
Outlets |
6 x NEMA 5-15R |
|
Input Connection |
NEMA 5-15P |
|
Battery Type |
Sealed Lead-Acid |
|
Battery Voltage |
12V |
|
Battery Modules Included |
1 |
|
Recharge Time |
Approximately 3 hours |
|
Extended Runtime |
Supports external battery packs (sold separately) |
|
SmartConnect |
Yes (cloud-based monitoring) |
|
Communication Ports |
USB, Serial, SmartConnect Ethernet Port |
|
Management Software |
PowerChute Serial Shutdown |
|
Audible Noise Level |
40 dBA at 1 meter |
|
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
|
Storage Temperature |
-15°C to 45°C (5°F to 113°F) |
|
Operating Humidity |
0% to 95% (non-condensing) |
|
Operating Elevation |
0 to 10,000 ft (0 to 3,000 meters) |
|
Dimensions (WxHxD) |
5.4" x 6.3" x 14.5" (137 mm x 161 mm x 368 mm) |
|
Weight |
18.5 lbs (8.4 kg) |
|
Warranty |
3 years (repair or replace) |
|
Compliance |
ENERGY STAR Certified, UL1778, cUL, CSA C22.2, FCC Class A |
Product Information
The APC SMT750C Smart-UPS will offer efficient power assurance to the delicate electronic equipment. Its line-interactive topology gives it constant operation in the event of a power disruption, and the pure sine wave output is compatible with a great variety of devices. The UPS has 6 NEMA 5-15R outlets, which provide a rich connection with several devices. The SmartConnect cloud portal streamlines the functionality of the system by providing both remote monitoring and proactive alerts, as well as updating the firmware. It is a small tower structure that one can easily connect to different settings. ENERGY STAR certification guarantees operational efficiency in energy saving and costs of operation, as well as environmental impact.
