Product Overview

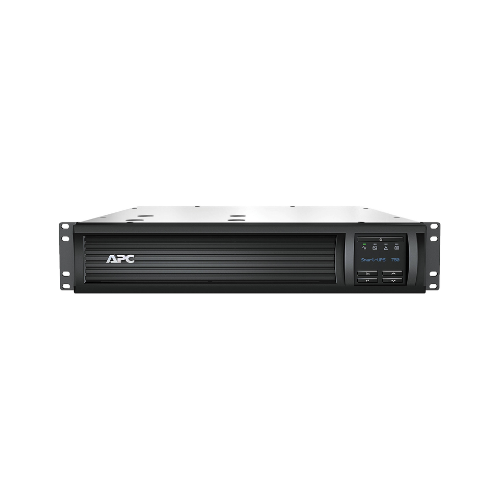

Maintaining the performance of critical IT equipment, the APC SMT750RM2UC Smart-UPS supplies clean, uninterrupted power, which comes with a bright touch panel LCD. Alongside the automatic voltage control, which optimizes the device uninterrupted, the unit guards power supplies, servers, and networking equipment from surges and spikes. The charge stable unit also has a compact design needed for mid-sized and small companies. These features, together with a sleek design, also enable small distributed IT setups to efficiently handle the workload.
Key Features and Benefits
-
High Power Capacity: The device has power and power supply capabilities set at 750VA and 500VA, effective in the protection of multiple equipment during downtimes.
-
Line-Interactive Topology: The interruption of the power supply during the shifting of backup units is an issue, but with this technology, it is resolved. Battery-less backup systems can function up to a specific limit.
-
Pure Sine Wave Output: Devices such as these are needed to be utilized for advanced electronics, as the power supply will be clean with no interruption.
-
AVR: The battery life is preserved in the event of sudden charge or discharge, as the unit can correct any sudden level of interruption that can occur.
-

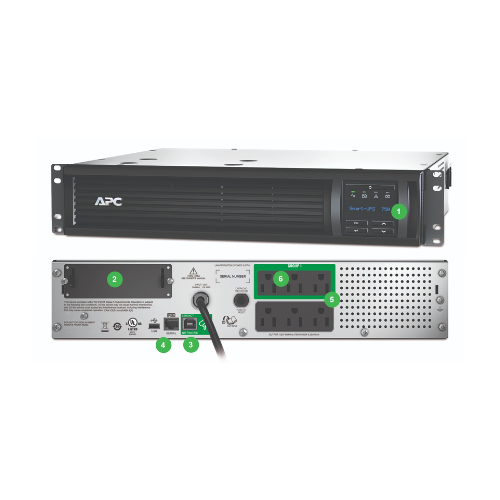

SmartConnect Port: Monitoring the remaining power for a long duration is resolved by the smart connect port, as it allows for the features of the device for powering remote units, along with software upgrades.
-
SmartSlot: Preparation for setups is enhanced by the inclusion of the network expansion unit, which now allows the enhanced smart network device for the more advanced devices needed for the unit.
-
LCD Display: Offering data and access over the remaining time is essential for devices, as it allows the user to set limits on power.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
750VA / 500W |
|
Topology |
Line-Interactive |
|
Output Voltage (Battery Mode) |
120V ±8% |
|
Output Waveform |
Pure Sine Wave |
|
Input Voltage |
120V ±10% |
|
Input Connection |
NEMA 5-15P |
|
Output Connections |
6 x NEMA 5-15R (Battery Backup) |
|
Battery Type |
Sealed Lead-Acid (SLA) Maintenance-Free |
|
Battery Runtime (Full Load) |
Approximately 5.5 minutes |
|
Battery Runtime (Half Load) |
Approximately 16 minutes |
|
Recharge Time |
3 hours |
|
Form Factor |
2U Rackmount |
|
Dimensions (WxDxH) |
17.3" x 17.2" x 3.5" (438 x 437 x 89 mm) |
|
Weight |
26.68 lbs (12.1 kg) |
|
Certifications |
UL1778, CSA C22.2 No. 107.3-05, FCC Class A |
|
Warranty |
3-year UPS, 2-year Battery |
Product Information
The APC SMT750RM2UC Smart-UPS was designed with the purpose of protecting critical IT infrastructure with quality and reliable power protection. Its line-interactive topology is designed so that connected equipment receives clean and uninterrupted power without any disturbances such as voltage sags, surges, and electrical noise. Its output is a pure sine wave, which is advantageous for sensitive networking equipment, like servers, that need stable power for optimal performance.
The UPS boasts flexibility in environments like data centers, server rooms, and telecom by offering a 2U rackmount design. Also, the SmartConnect port allows for remote management, which gives IT admins the ability to monitor the UPS performance and status from anywhere.
Lastly, features such as Automatic Voltage Regulation, the user-replaceable battery, and Energi Star certification, the SMT750RM2UC gives users peace of mind as their operations are uninterrupted.
