Product Overview

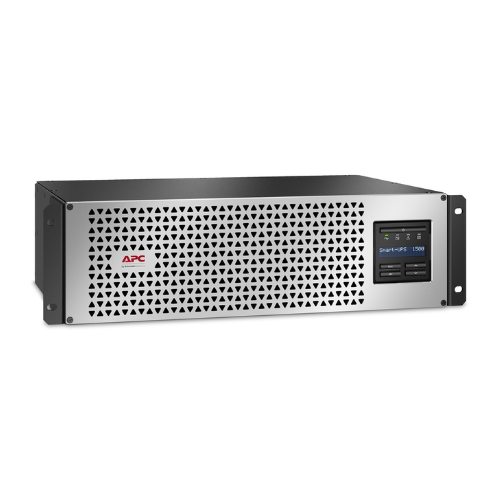

The APC SMTL1500RM3UCNC Smart-UPS is a high-performance, line-interactive uninterruptible power supply (UPS), which is designed to supply reliable, clean, and continuous power to vital IT systems. It has a 1500 VA / 1350W capacity with pure sine wave output and offers a 3U rackmount UPS for conducting protection against power disturbances on their servers, networking devices, and other sensitive electronic equipment against power surges, power spikes, and power outages. Its ability to fit in small to medium-sized businesses as well as distributed IT set-ups makes it good.
Key Features and Benefits
-
High Power Capacity: The high power capacity can supply up to 1500VA, which corresponds to 1350W to enterprises and to supply various other devices in the event of using the power when there is a power failure.
-
Line-Interactive Topology: Automatically attempts to correct voltage variables without changing to battery to maintain a steady flow of power.
-
Pure Sine Wave Output: Sine output is clean and stable, which is vital with sensitive electronic equipment.
-
Automatic Voltage Regulation (AVR): Corrects under- and oversupply of voltage instantly without battery action, thereby saving on battery life.
-
SmartConnect Port: This is a cloud-based remote power watch that allows upgrading of the firmware, remote diagnostics, and email proactive emails.
-
SmartSlot: The APC Network Management Card may be added to enable the use of an APC Network Management Card to enable even better network management.
-
LCD Display: This provides real-time data about UPS status, battery status, and load, which are easily readable.
-
User-Replaceable Battery: It is designed with a hot-swappable battery design, which allows users to replace the battery without shutting down the UPS, preventing hours of non-operation.
-
Energy Star Certified: Adheres to stringent energy efficiency standards, making the use of electricity and related operation expenses low.
-
Minimal Design: It occupies a small structure of 3U rackmountable, which is economical and can be accommodated in any setting.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
1500VA / 1350W |
|
Topology |
Line-Interactive |
|
Output Voltage (Battery Mode) |
120V ±8% |
|
Output Waveform |
Pure Sine Wave |
|
Input Voltage |
120V ±10% |
|
Input Connection |
NEMA 5-15P |
|
Output Connections |
6 x NEMA 5-15R (Battery Backup) |
|
Battery Type |
Lithium-Ion |
|
Battery Runtime (Full Load) |
Approximately 10 minutes |
|
Battery Runtime (Half Load) |
Approximately 30 minutes |
|
Recharge Time |
3 hours |
|
Form Factor |
3U Rackmount |
|
Dimensions (WxDxH) |
17.2" x 11.9" x 5.2" (437 x 303 x 132 mm) |
|
Weight |
26.5 lbs (12 kg) |
|
Certifications |
UL1778, CSA C22.2 No. 107.3-05, FCC Class A |
|
Warranty |
3-year UPS, 2-year Battery |
Product Information
The APC SMTL1500RM3UCNC Smart-UPS has been designed in such a way that it offers exceptional power protection against critical IT infrastructure that is highly reliable and of good quality. Its line interactive topology means that the equipment connected to it is provided with clean and uniform energy, which is not interrupted by electrical-related irritants like voltage drops, electrical spikes, and electrical noise. The crude sine wave output is especially useful with sensitive equipment such as servers and networking devices, which would use constant power smoothly to perform to their best.
The UPS is capable of easily fitting into a range of environments, which includes the data center, server rooms, and telecommunications premises, thanks to its installation flexibility, which it enjoys in its rackmount design (3U racks). The SmartConnect port allows remote monitoring and management in IT administration, where the administrators of the UPS systems know the status and performance of the UPS systems everywhere.
The SMTL1500RM3UCNC comes with additions such as Automatic Voltage Regulation, a replaceable battery by users, and the Energy Star certification, so that users can be sure of continuous work of the UPS and no interruption in their operations whenever they require it.
