Product Overview

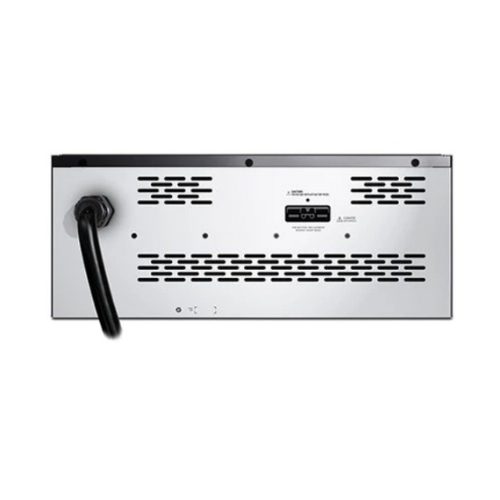

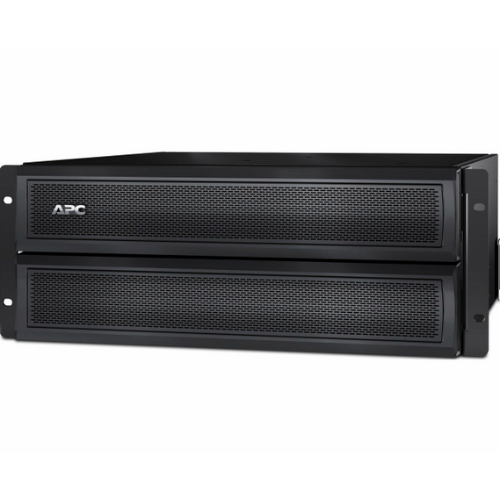

The APC SMX120BP Smart-UPS X-Series External Battery Pack is developed to increase the battery life of compatible APC Smart-UPS X-Series models. This external battery pack has a 1200 VAh capacity, a 48 V sealed lead-acid battery setup, which guarantees that equipment connected to it is not self-discharged in case of prolonged power failure. It has a 4U rackmount shape that makes it flexible to be installed in data centers or server rooms.
Key Features and Benefits
-
Long Run Time: Will make sure that the APC Smart-UPS X-Series supports an additional battery capacity that can run for a long time in the case of outages.
-
Hot-Swappable Batteries: It is a kind of battery that can be replaced without interfering with the operations of equipment attached to it.
-
Maintenance-Free Design: It has sealed lead-acid batteries, which are leak-proof and require minimal maintenance.
-
Flexible Installation: It is either a 4U rackmount or a tower unit, and can be adaptable to any configuration.
-
Plug-and-Play Connection: Connections with compatible UPS units are simple, which means that one can install them quickly and easily.
-
Environmental Concerns will facilitate recycling used batteries, which will be APC-approved for disposing of used batteries responsibly.
Technical Specifications
|
Feature |
Specification |
|
Model |
APC SMX120BP |
|
Battery Capacity |
1200VAh |
|
Battery Type |
Sealed Lead-Acid (VRLA) |
|
Voltage |
48V |
|
Form Factor |
Rackmount (4U) / Tower Convertible |
|
Dimensions (WxHxD) |
17.01" x 6.85" x 19.29" (432 mm x 174 mm x 490 mm) |
|
Weight |
53.6 kg (118.17 lbs) |
|
Warranty |
2 years (repair or replace) |
|
Compatibility |
APC Smart-UPS X-Series models (e.g., SMX2000RMLV2U, SMX3000RMLV2U) |
|
Battery Replacement |
APCRBC143 |
|
Mounting |
Rackmount (4U) / Tower Convertible |
|
Certifications |
UL, CE, RoHS |
Product Information
The APC SMX120BP Smart-UPS X-Series External Battery Pack is designed to offer ways of scaling up run time in emergent critical applications. Its hot-swappable sealed lead-acid batteries are maintenance-free and make sure that power is available even when the power is off, and the flexibility in the 4U rackmount design provides a way to utilize the available space efficiently. The external battery pack is compatible with different models of the APC Smart-UPS X-Series, which makes it an important accessory to businesses that seek reliable protection of power.
