Product Overview
The APC SMX120RMBP2U is a high-performance external battery pack that is made as an extension of APC Smart-UPS X series uninterruptible power supplies (UPS). This battery pack is the one that IT professionals and network administrators are looking to have because of its versatile and 2U rackmount or tower configuration, which offers reliable protection of their equipment against power outages.
Key Features and Benefits
-
Long Run Time: Add up to 10 battery packs to your UPS to achieve scalable runtime so that you can operate continuously even in the event of long power outages.
-
Hot-Swappable Design: Change batteries without shutting down the equipment that they serve, reducing maintenance time and keeping the system available.
-
Smart Battery Management: The Smart battery charging and discharging cycles are optimized with advanced algorithms to increase the life and performance of the battery.
-

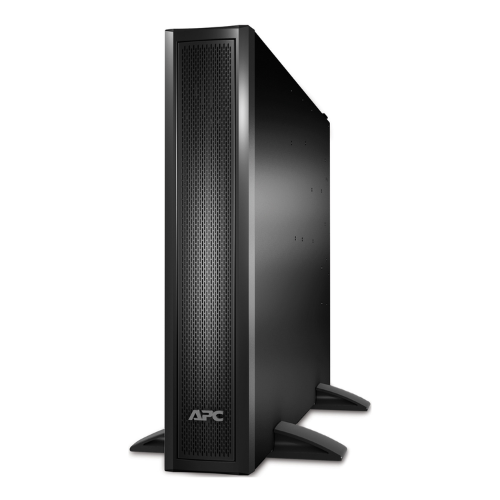

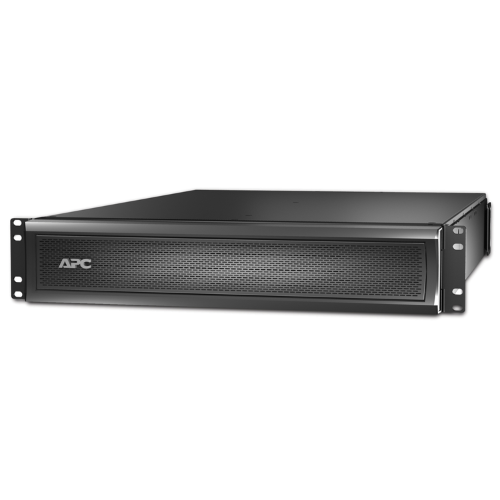

Flexible Mounting Alternatives: Easily switch between rackmount or tower mount depending upon your installation location.
-
User-Replaceable Batteries: This eases the length of time to maintain and lowers service expenses since trained staff can replace batteries on their own.
Technical Specifications
|
Feature |
Specification |
|
Battery Voltage |
120 V DC |
|
Battery Chemistry |
Lead-Acid (Sealed, Spill-Proof, Maintenance-Free) |
|
Form Factor |
2U Rackmount / Tower Convertible |
|
Dimensions (HxWxD) |
3.3" x 17.0" x 26.3" (85 mm x 432 mm x 667 mm) |
|
Weight |
124.25 lbs (56.36 kg) |
|
Mounting |
Rackmount with included brackets; Tower with included feet |
|
Operating Temperature |
32°F to 104°F (0°C to 40°C) |
|
Relative Humidity |
0% to 95% (non-condensing) |
|
Operating Altitude |
Up to 10,000 ft (3,048 m) |
|
Battery Replacement |
APCRBC118 |
|
Warranty |
2 years (repair or replace) |
|
Compliance |
RoHS, CE, UL Listed |
Product Information
APC SMX120RMBP2U is designed to offer effective and dependable power security to vital IT infrastructure. Its smart battery control system is the guarantee of maximum functionality and most efficient operation and life, and the ability to be mounted in different locations provides ease of integration into any environment. Its 2U size allows easy replacement of batteries and making it convenient and efficient in ensuring that the power supply is not interrupted.
