Product Overview

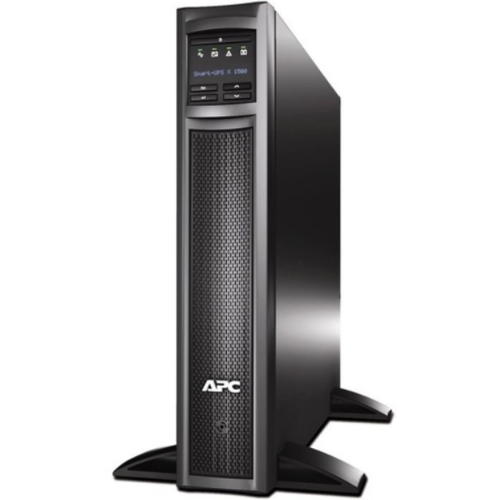

APC SMX1500RM2UC Smart-UPS X is a high-performance uninterruptible power supply (UPS) that is designed to give dependable battery backup and overcurrent security to valuable electronic devices. This line-interactive UPS has a power capacity of 1440 VA/1350 W. It is a pure sine wave with a maximum power capacity of 1440 VA/1350 W, which makes it compatible with sensitive devices. Its 2U rack/ tower convertible form factor is versatile in installation in different environments. It is also powered by a SmartConnect Ethernet port that allows cloud-based remote monitoring and control, giving real-time data on UPS performance and battery status.
Key Features and Benefits
-
Pure Sine Wave Output: Produces clean and stable power, which is compatible with delicate electronics and eliminates possible damage.
-
AVR-based Line-Interactive Topology: Intel-based line-interactive topology, corrects small fluctuations in power, automatically switching to battery rather than decreasing the battery life or energy used.
-
SmartConnect Cloud Monitoring: Security and remote monitoring and management through a web portal that allows proactive warning and firmware upgrades.
-
Long Run Time: (SMX48RMBP2U) can accept as many as five external battery packs (with a maximum backup time on a single outage of 12 hours).
-
Flexible Installation: The convertible rack/tower design with rail kit and support foot is removable to accommodate alternative systems easily.
-
ENERGY STAR Certified: This is highly efficient energy use, low operation costs, and reduced environmental impact.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
1440VA / 1350W |
|
Topology |
Line Interactive |
|
Output Waveform |
Pure Sine Wave |
|
Input Voltage |
120V AC ± 10% |
|
Output Voltage |
120V AC ± 10% |
|
Output Frequency |
50/60Hz ± 3Hz (synchronized to mains) |
|
Outlets |
8 x NEMA 5-15R |
|
Input Connection |
NEMA 5-15P |
|
Battery Type |
Sealed Lead-Acid |
|
Battery Voltage |
12V |
|
Battery Modules Included |
1 |
|
Recharge Time |
Approximately 3 hours |
|
Extended Runtime |
Supports up to 5 external battery packs (SMX48RMBP2U) |
|
SmartConnect |
Yes (cloud-based monitoring) |
|
Communication Ports |
USB, Serial, SmartConnect Ethernet Port |
|
Management Software |
PowerChute Serial Shutdown |
|
Audible Noise Level |
40 dBA at 1 meter |
|
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
|
Storage Temperature |
-15°C to 45°C (5°F to 113°F) |
|
Operating Humidity |
0% to 95% (non-condensing) |
|
Operating Elevation |
0 to 10,000 ft (0 to 3,000 meters) |
|
Dimensions (WxHxD) |
17.2" x 3.5" x 17.2" (437 mm x 89 mm x 437 mm) |
|
Weight |
28.7 lbs (13 kg) |
|
Warranty |
3 years (repair or replace) |
|
Compliance |
ENERGY STAR Certified, UL1778, cUL, CSA C22.2, FCC Class A |
Product Information
The APC SMX1500RM2UC Smart-UPS X is designed to deliver adequate power protection against electronic-sensitive equipment. Its line interactive topology means that it can continue to operate during power disruptions, and pure sine wave output is compatible with a broad number of devices. The UPS has eight NEMA 5-15R ports, which provide numerous opportunities to connect various devices. The SmartConnect cloud portal increases the effectiveness of operations by providing remote monitoring, proactive notifications, and updates of firmware. It has a 2U rack/tower convertible design, which will easily integrate into a wide range of environments. ENERGY STAR Certification will be energy efficient to operate, thereby saving on operational expenses and impacts on the environment.
