Product Overview

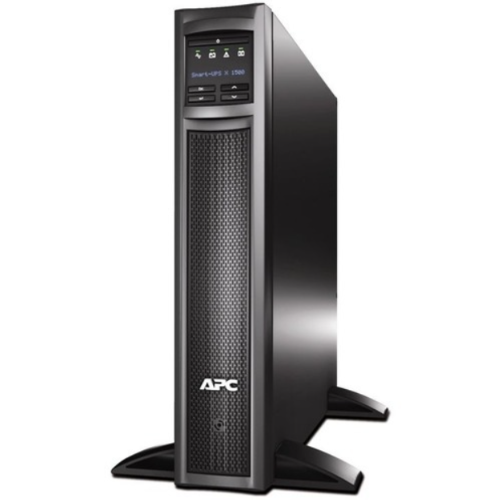

The APC SMX1500RM2UCNC Smart-UPS X is a high-power uninterruptible power supply (UPS) that provides reliable, clean, and stable power to critical machines and equipment. Having 1500 VA/1350W, this high-density 2U rackmount or tower-convertible UPS is available to provide a continuous power supply during power outages and to protect delicate electronics against voltage spikes. It is the perfect fit in IT servers, networking equipment, storage, and office devices, and is capable of protecting these devices and providing intelligent management to ensure minimum downtime is experienced and systems have maximum reliability.
Key Features and Benefits
-
AVR Advanced Line-Interactive Topology: The system automatically compensates for voltage variation and does not switch to battery operation, which prolongs the battery life and helps to provide a consistent power supply.
-
Pure Sine Wave Output: Pure sine wave is compatible with sensitive electronics, providing a steady and clean power supply to the best of its ability in ensuring good performance of its devices.
-
SmartConnect Cloud Monitoring: A remote monitoring and management platform, fully secured through the use of a web portal, which allows proactive alerts and firmware updates.
-
8 Battery and Surge-Protected Outlets: Provides a great deal of connectivity to a wide variety of gadgets, making it easy to install and eliminating the need to rely on an external power strip.
-
Flexible Tower/Rackmount Form Factor: Is deployable as a 2U rackmount or tower and can be used flexibly in various installation applications.
-
ENERGY STAR Certified: Cuts down the amount of energy used and operational expenses, and fuels the sustainability of the environment.
-
Extended Run-Time: Battery pack takes optional external battery packs (sold separately) to provide a long backup power during extended outages.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
1500VA / 1350W |
|
Topology |
Line Interactive |
|
Output Waveform |
Pure Sine Wave |
|
Input Voltage |
120V AC ± 10% |
|
Output Voltage |
120V AC ± 10% |
|
Outlets |
8 x NEMA 5-15R |
|
Plug Type & Cord |
NEMA 5-15P, 10 ft. cord |
|
Communication Ports |
USB, Serial, SmartConnect Ethernet Port |
|
Management Software |
PowerChute Serial Shutdown |
|
Data Line Protection |
Telephone, Network, Coaxial |
|
Battery Type |
Sealed Lead-Acid |
|
Runtime at Half Load |
Approximately 14.8 minutes |
|
Runtime at Full Load |
Approximately 5.8 minutes |
|
Recharge Time |
3 hours |
|
Dimensions (WxHxD) |
17.0" x 3.5" x 19.3" (432 mm x 89 mm x 490 mm) |
|
Weight |
54.6 lbs (24.8 kg) |
|
Warranty |
3 years (repair or replace) |
|
Compliance |
ENERGY STAR Certified, UL1778, cUL, CSA C22.2, FCC Class A |
Product Information
The APC SMX1500RM2UCNC has been designed to provide high-capacity power protection and intelligent monitoring. Its AVR-based line-interactive topology and stable voltage will allow connected devices to operate using stable voltage; its pure sine wave output will allow sensitive electronics to operate without damage. Having eight battery and surge-protected outlets, it can fit many devices without any difficulties.
The SmartConnect cloud portal adds more efficiency to operations, providing remote monitoring, proactive alerts, and updates to the firmware. It is flexible in its 2U rackmount or tower configuration, and may easily be integrated with server racks or on its own. ENERGY STAR certification and optional external battery packs provide energy-saving operation and the possibility of an extended time of backup in the case of a prolonged outage. It is an excellent UPS that is applicable to businesses and IT experts in need of reliable, smart power protection for their essential systems.
