Product Overview
APC SMX3000HVT is a high-performance, line-interactive uninterruptible power supply (UPS), which is used to ensure effective power protection of important electronic devices. This 4U rackmount or tower convertible UPS has 3000 VA / 2700 W capacity, such that devices connected to it receive a stable and clean power supply to protect against power problems, including surges, spikes and outages.
Key Features and Benefits
-
Line-Interactive Topology: Provides the advantage of providing continuous, high-quality power, by automatically correcting small voltage variations without switching to battery; a pure sine wave output is produced.
-
Long Run time: Can accommodate up to 10 external battery packs (SMX120BP) to have extended run time when there is a power outage in the facility to prevent disconnection of attached equipment.
-
SmartSlot of Optional Accessories: Optional accessory cards to be added, which could be network management cards, can be used to make it more functional and controllable.
-
Short Depth Design: It will offer additional allowance to manage the cables and is therefore suitable in areas that have limited rack space.
-
Pure Sine Wave Output: Provides power that is clean and smooth, and is therefore suitable for sensitive equipment such as servers, networking equipment, and point-of-sale systems.
-
Automatic Voltage Regulation (AVR): Automatically adjusts small changes in power without disengaging the battery, prolongs battery life, and maintains a steady voltage.
-
LCD Display: Any LCD will provide concise and clear information on UPS status, battery health, and power conditions, making it easy to set up and monitor.
-
Energy Star Certified: Exceeds strict energy-saving measures, decreasing power usage and the cost of operation.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
3000 VA / 2700 W |
|
Topology |
Line-Interactive |
|
Waveform Output |
Pure Sine Wave |
|
Input Voltage Range |
141–255 V |
|
Output Voltage |
208 V ± 5% |
|
Input Connection |
NEMA L6-20P |
|
Output Connections |
2 x NEMA L6-20R, 4 x IEC 320 C13, 2 x IEC 320 C19 |
|
Form Factor |
4U Rack/Tower Convertible |
|
LCD Display |
Yes |
|
SmartSlot |
Yes |
|
Battery Type |
Sealed Lead-Acid (VRLA) |
|
Runtime (Full Load) |
6.3 minutes |
|
Runtime (Half Load) |
15.7 minutes |
|
Recharge Time |
3 hours |
|
Dimensions (HxWxD) |
6.9" x 17.2" x 19.6" (175 x 437 x 498 mm) |
|
Weight |
45.2 lbs (20.5 kg) |
|
Warranty |
3 years |
Product Information
The APC SMX3000HVT Smart-UPS X has been developed to provide high-density line-interactive power protection to a wide range of highly sensitive electronic equipment. The 4U rackmount design allows it to be used efficiently in space, and the short depth gives it some additional space to make cable management easier. It is also suitable for limited rackspace.

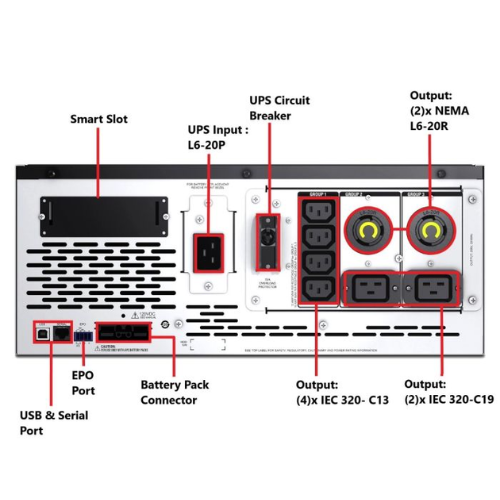

The UPS has 2 x NEMA L6-20R, 4 x IEC 320 C13, and 2 x IEC 320 C19 outlets to provide them with the flexibility of connecting to a wide range of devices. The rack/tower convertible model gives the ability to customize and mount the design in various positions, such as rack mount and tower position, to suit any environment.
The SmartSlot allows an optional accessory card to be installed, which adds functionality and manageability, e.g., network management cards. Also, the UPS is Energy Star certified, which complies with strict energy efficiency requirements to minimize the use of electricity and operational expenses.
The UPS has a maximum of 10 external battery packs (SMX120BP) so that, during power outages, all the equipment connected to it will continue to operate. The built-in LCD screen offers simple and accurate information on UPS status, battery status and power conditions, making it easy to set up and monitor.
The APC SMX3000HVT Smart-UPS X has a 3-year warranty and is effective and efficient in offering power protection to important electronic equipment.
