Product Overview

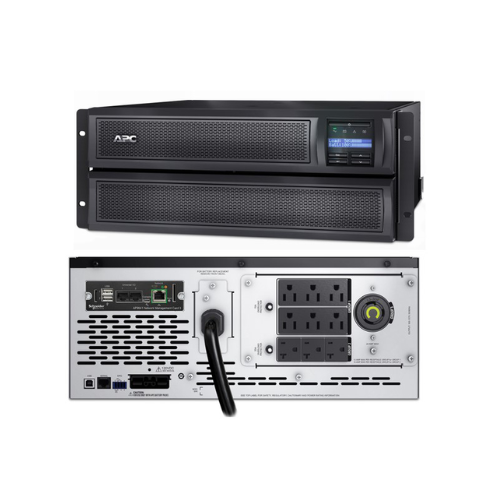

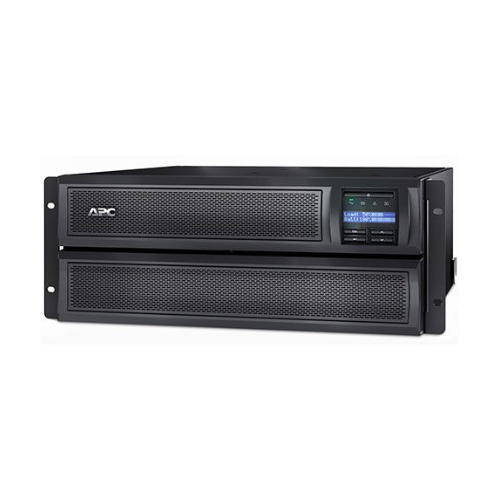

APC SMX3000LVNC is a high-performance line-interactive Uninterruptible Power Supply (UPS) that has been designed to provide a stable, clean, and continuous power to essential IT equipment. With an output of 3000VA / 2700W and pure sine wave, this 4U rackmount/ tower convertible UPS safeguards servers, network devices, storage equipment, and telecommunications equipment against power problems such as surges, spikes, and outages. It is a rack-mounting and tower installation that is easily adaptable to its multi-use in an enterprise setup and data center.
Key Features and Benefits
-
Pure Sine Wave Output: Delivers smooth, steady power to maximize the performance and life of delicate equipment.
-
Automatic Voltage Regulation (AVR): Controls the voltage variations without battery operation, extends the battery life, and protects equipment connected to it.
-
SmartConnect Port: It can be used to monitor and control remotely in the cloud, real-time UPS status, diagnostics, or software upgrades.
-
SmartSlot Expansion: supports optional network management cards to enhance monitoring and control.
-
LCD Display: Displays real-time information about UPS status, battery life, and load easily.
-
Flexible connectivity: 6 x NEMA 5-15R, 3 x NEMA 5-20R, 1 x NEMA L5-30R.
-
Energy-Efficient Design: reduces the operating cost since it contains features that conserve energy.
-
Long Run Time Capability: It has the capability to support more battery packs so that it can continue to run even when it faces extended outages.
-
Full Warranty: 2-year warranty and Connected Equipment Guarantee of 150,000 to be on the safe side.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
3000 VA / 2700 W |
|
Topology |
Line-Interactive |
|
Output Voltage (Battery Mode) |
100V–127V ±5% |
|
Output Waveform |
Pure Sine Wave |
|
Input Voltage |
100V–127V ±10% |
|
Frequency |
50/60 Hz ±3 Hz |
|
Power Factor |
0.9 |
|
Battery Type |
Valve Regulated Lead-Acid (VRLA) |
|
Battery Runtime (Half Load) |
~10 minutes |
|
Recharge Time |
~3 hours |
|
Form Factor |
4U Rack/Tower Convertible |
|
Outlets |
6 x NEMA 5-15R, 3 x NEMA 5-20R, 1 x NEMA L5-30R |
|
Dimensions (WxDxH) |
17.0" x 19.0" x 7.0" (432 x 483 x 178 mm) |
|
Weight |
62 lbs (28.1 kg) |
|
Certifications |
UL1778, CSA C22.2 No. 107.3-05, FCC Class B |
|
Warranty |
2-year limited warranty |
|
Connected Equipment Guarantee |
$150,000 |
Product Information
The APC SMX3000LVNC is designed to offer the power protection of critical IT infrastructure in a reliable and high-quality manner. Its line-interactive topology provides a clean and stable supply of power to the equipment connected to it without introducing any disturbances to it (voltage sags, surges, and electrical noise). The sine wave output that is pure is of special advantage in the case of sensitive equipment such as servers and networking equipment, which need consistent power to deliver the best results.
The UPS is flexible, being a 4U rackmount design, and is applicable in a wide range of setup locations, such as data centers, server rooms, and telecom units. SmartConnect port allows remote monitoring and management, giving the administrators a chance to obtain real-time information and carry out diagnostics anywhere.
The SMX3000LVNC is flexible, with SmartSlot expansion and longer battery module compatibility options to suit your needs in your infrastructure. Its low-energy consumption design assists in cutting down on the operation expenses, whereas its endless warranty and big Connected Equipment Guarantee promise users that they have the capability to rely on the UPS when running essential business processes.
