Product Overview

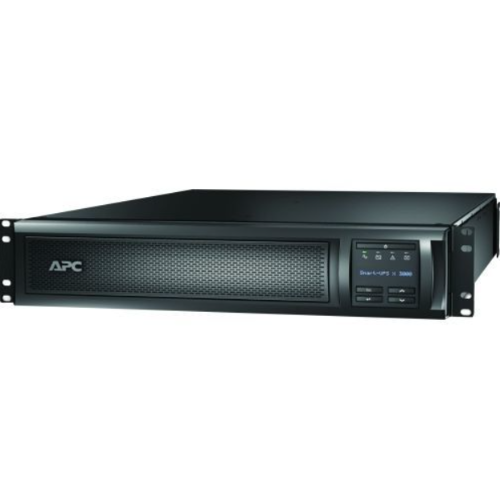

APC SMX3000RMLV2U Smart-UPS X 3000VA Rack/Tower LCD 100V-127V is a high-capacity uninterruptible power supply (UPS) model capable of offering dependable power interruption security to critical electronic devices. This line-interactive UPS has a capacity of 2880VA/2700W, so that it can provide the best of power to the sensitive devices in a continuous power outage that is also of high quality, to suit servers, storage systems, networking equipment, and point-of-sale (POS) terminals. Its 2U rackmount enclosure can easily fit in server racks, and is space-efficient by maximizing the use of available space.
Key Features and Benefits
-
Pure Sine Wave Output: This has clean and uniform power, which will not damage delicate electronics, and the possibility of damaging the equipment is minimal.
-
SmartConnect Port: This is to be utilized to assist in cloud-based remote monitoring, real-time alerts, firmware updates, and proactive support services via the SmartConnect platform of APC.
-
SmartSlot: It can be configured to be provided with an optional Network Management Card (NMC) that can allow the user to have advanced network monitoring and management.
-
LCD Display: The LCD display can show the statistical and brief information about UPS status and battery health, load, and input/output voltage, and thus, it is easy to monitor and control.
-
Energy Star Certified: This is a guarantee that the operation is energy efficient since it reduces the costs of operation and environmental impact.
-
Warranty: A 3-year warranty of UPS and a 2-year warranty of battery provide the customer with a good guarantee and reliability.
Technical Specifications
|
Feature |
Specification |
|
Model |
APC SMX3000RMLV2U |
|
Topology |
Line-Interactive with AVR |
|
Capacity |
2880VA / 2700W |
|
Input Voltage |
100V-127V AC ± 10% |
|
Output Voltage |
100V-127V AC ± 10% |
|
Output Waveform |
Pure Sine Wave |
|
Output Frequency |
50/60Hz ± 3Hz (synchronized to mains) |
|
Outlets |
3 x NEMA 5-15R, 3 x NEMA 5-20R, 1 x NEMA L5-30R |
|
Input Connection |
NEMA L5-30P with 8 ft (2.44 m) Cord |
|
Battery Type |
Sealed Lead-Acid (VRLA) |
|
Battery Voltage |
36V |
|
Recharge Time |
Approximately 3 hours |
|
Runtime at Half Load |
Approximately 18.1 minutes (1350W) |
|
Runtime at Full Load |
Approximately 6.3 minutes (2700W) |
|
Dimensions (WxHxD) |
17.01" x 3.39" x 26.3" (432 mm x 86 mm x 668 mm) |
|
Weight |
84.77 lbs (38.4 kg) |
|
Warranty |
3 years (UPS), 2 years (battery) |
|
Certifications |
ENERGY STAR Certified, UL1778, cUL, CSA C22.2, FCC Class A |
Included Accessories
-
Rack Mounting Support Rails
-
USB Communication Cable
-
RS-232 Communication Cable
-
Documentation CD
-
Installation Guide
Product Information
The APC SMX3000RMLV2U Smart-UPS X 3000VA Rack/Tower LCD 100V-127V is designed to protect sensitive electronic equipment with power security. Its AVR-powered line-interactive topology makes sure that the slight variations of power are corrected without moving to the battery, saving battery time during more serious outages. The sine wave pure output ensures that the device is compatible with a broad variety of devices, and the SmartConnect port allows remote monitoring and control in the clouds. Its 2U rackmount product form fits perfectly well in server racks and, as a result, it helps to save more space in the data centers and network closets
