Product Overview

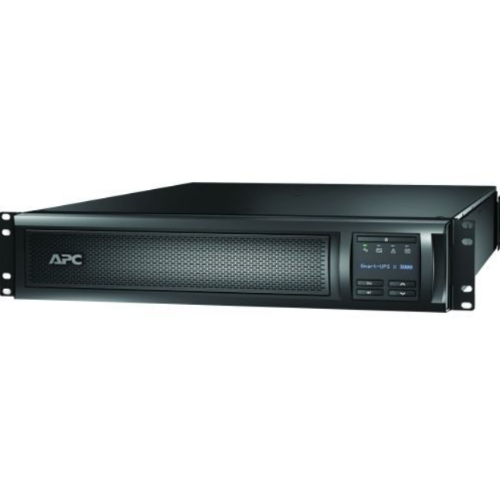

The APC SMX3000RMLV2UNC Smart-UPS X 3000 VA Rack/Tower LCD 100 V-127 V Power Supply is the uninterruptible power supply (UPS) that is high-powered to offer high-quality power protection to critical electronic devices. This line-interactive UPS is scaled at 2880VA/2700W and provides high-quality and continuous power to sensitive equipment, and therefore is suitable for servers, storage systems, networking equipment, and point-of-sale (POS) terminals. Its rackmount design (2U) enables it to fit easily in server racks to maximise space.
Key Features and Benefits
-
Line-Interactive Topology: This uses Automatic Voltage Regulation (AVR) to correct small increases and drops in power without using battery power switching and saving battery power when major outages occur.
-
Pure Sine Wave Output: Provides smooth and stable power output, which is not harmful to sensitive electronics and eliminates the possibility of equipment damage.
-
SmartConnect Port: This provides the ability to monitor the system remotely over the cloud and have real-time alerts, firmware updates, and proactive support services through the APC SmartConnect platform.
-
SmartSlot: This will enable one to have an optional Network Management Card (NMC) to enable advanced network monitoring and management capabilities.
-
LCD Display: The display shows clear and concise data regarding the status of UPS, battery status, load, and input/output voltage, and thus allows easy monitoring and control.
-
Energy Star Certified: The certification is an assurance of energy efficiency in operation, which lowers the operation cost and environmental impact.
-
Complete Warranty: 3-year UPS warranty and 2-year battery warranty, which gives peace of mind and a dependable warranty.
Technical Specifications
|
Feature |
Specification |
|
Model |
APC SMX3000RMLV2UNC |
|
Topology |
Line-Interactive with AVR |
|
Capacity |
2880VA / 2700W |
|
Input Voltage |
100V-127V AC ± 10% |
|
Output Voltage |
100V-127V AC ± 10% |
|
Output Waveform |
Pure Sine Wave |
|
Output Frequency |
50/60Hz ± 3Hz (synchronized to mains) |
|
Outlets |

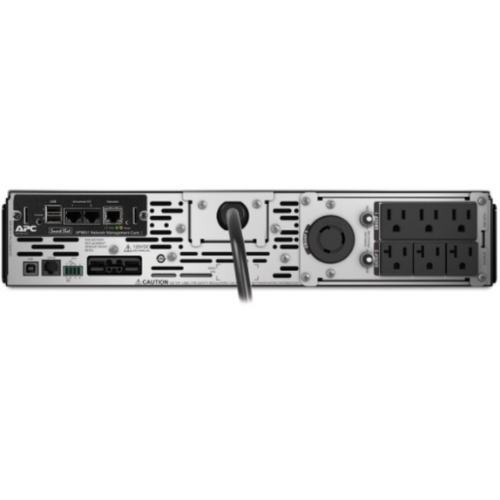

3 x NEMA 5-15R, 3 x NEMA 5-20R, 1 x NEMA L5-30R |
|
Input Connection |
NEMA L5-30P with 8 ft (2.44 m) Cord |
|
Battery Type |
Sealed Lead-Acid (VRLA) |
|
Battery Voltage |
36V |
|
Recharge Time |
Approximately 3 hours |
|
Runtime at Half Load |
Approximately 18 minutes (1350W) |
|
Runtime at Full Load |
Approximately 6 minutes (2700W) |
|
Dimensions (WxHxD) |
17.01" x 3.39" x 26.3" (432 mm x 86 mm x 668 mm) |
|
Weight |
84.77 lbs (38.4 kg) |
|
Warranty |
3 years (UPS), 2 years (battery) |
|
Certifications |
ENERGY STAR Certified, UL1778, cUL, CSA C22.2, FCC Class A |
Included Accessories
-
Rack Mounting Support Rails
-
USB Communication Cable
-
RS-232 Communication Cable
-
Documentation CD
-
Installation Guide
Product Information
APC SMX3000RMLV2UNC Smart-UPS X 3000VA Rack/Tower LCD 100V-127V is designed to offer adequate power security to delicate electronic devices. Its AVR-based line-interactive topology will make certain that minor power irregularities are fixed without powering down to the battery to save battery life in case of more serious outages. The raw sine wave output ensures that it is compatible with a broad variety of devices, and the SmartConnect port allows remote monitoring and management over the cloud. Its 2U rackmount form enables the UPS to be put in use in server racks, and results in the best use of space in the data center or network closet.
