Product Overview

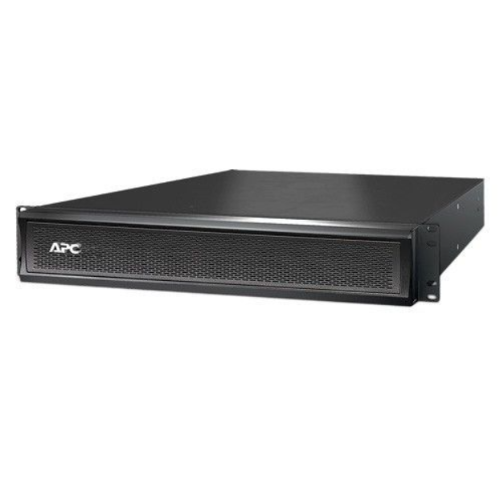

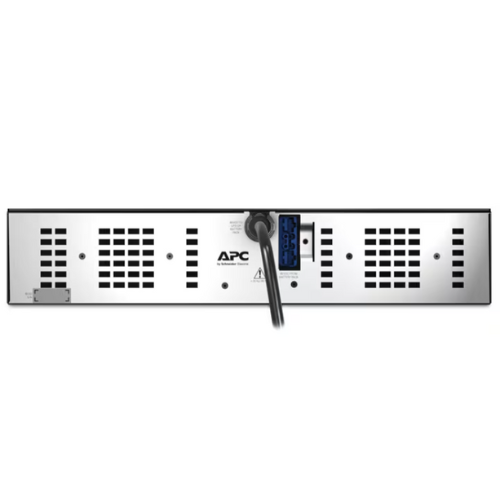

The APC SMX48RMBP2U Smart-UPS X-Series External Battery Pack is a device that is used to extend the working time of APC Smart-UPS X-Series models that allow its use. Having the capacity of 864 VAh with an output of 48 V, this external battery pack will make sure that equipment that is connected to the battery pack is operational even in the event of prolonged power outages. It has a 2U rackmount size that gives it the flexibility to be installed in data centers or server rooms.
Key Features and Benefits
-
Extended Runtime: Allows more run time to APC Smart-UPS X-Series models, and provides extended run times in case of an outage.
-
Hot-Swappable Batteries: The system is capable of changing its battery without disruption of other equipment to which it is connected.
-
Maintenance-Free Design: The design uses sealed lead-acid batteries, which are spill-free and need minimal maintenance.
-
Flexible Mounting: It can be mounted in a 2U rackmount system or as a tower, which will provide a degree of flexibility to accommodate a wide range of setups.
-
Plug-and-Play Connections: Simple connection with other compatible UPS units, simple installation as well.
-
Environmental Issues: Favors the recycling of used batteries that are approved by APC.
Technical Specifications
|
Feature |
Specification |
|
Model |
APC SMX48RMBP2U |
|
Battery Capacity |
864VAh |
|
Battery Type |
Sealed Lead-Acid (VRLA) |
|
Voltage |
48V |
|
Form Factor |
Rackmount (2U) / Tower Convertible |
|
Dimensions (WxHxD) |
17.01" x 3.5" x 19.3" (432 mm x 89 mm x 490 mm) |
|
Weight |
63.1 lbs (28.6 kg) |
|
Warranty |
2 years (repair or replace) |
|
Compatibility |
APC Smart-UPS X-Series models (e.g., SMX1000I-DIG, SMX1500RMI2UNC-5XW, SMX750I-3XW) |
|
Battery Replacement |
APCRBC115 |
|
Mounting |
Rackmount (2U) / Tower Convertible |
|
Certifications |
RoHS, REACH, EOLI, PEP |
Product Information
The APC SMX48RMBP2U Smart-UPS X-Series External Battery Pack has been designed with scalable runtime when used in critical applications. Its sealed lead-acid batteries are hot-swappable and do not require any maintenance, so the system can supply continuous power during power outages, and the flexible 2U rackmount design can be used efficiently to utilize the available space. This external battery pack is compatible with a range of different APC Smart-UPS X-Series models. It is a vital addition to those businesses that need to have solid power protection.
