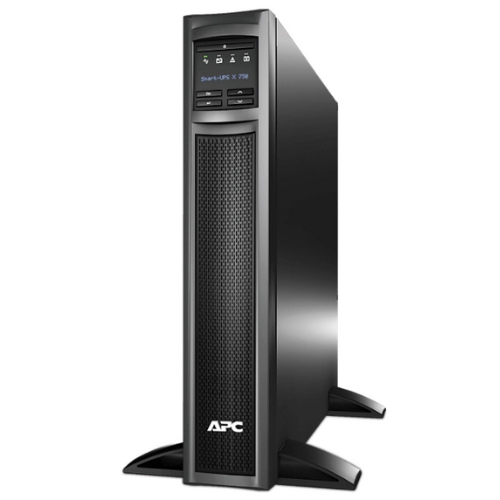

Product Overview
The APC SMX750C Smart-UPS X is an uninterruptible power supply (UPS) of high quality that is aimed at ensuring the adequate backup of the power supply and suppression of surges in electronic devices that have an essential role in the functioning of the specified facility. Having a capacity of 750 VA / 675 W, this 2U rackmount or tower-convertible UPS will keep your equipment running even during power outages as well as shield against voltage changes. It has a line-interactive topology, Automatic Voltage Regulation (AVR) that provides clean, stable power and a pure sine wave output that is compatible with sensitive electronics.
Key Features and Benefits
-
AVR Line-interactive topology: Line-interactive topology corrects small power spikes without transitioning to battery and, therefore, extends battery life and maintains constant voltages.
-
Pure Sine Wave: Provides clean and stable operation to delicate electronics, providing maximum output and maximum life.
-
8 Outlets: Has lots of connectivity, with eight battery and surge-protected outlets.
-
SmartConnect Cloud Monitoring: Allows remote access and control of the UPS through a secure web portal where real-time updates and notices are provided.
-
ENERGY STAR Certified: Able to comply with high standards of energy efficiency, minimizing the operational costs and environmental impact.
-
Flexible Form Factor: The product can be configured as either a tower or rackmount UPS, allowing it to be variable in installing it in different settings.
-
Extended Run time: Has the ability to support more battery packs (available separately) to increase the run times in extended power outages.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
750VA / 675W |
|
Topology |
Line Interactive |
|
Waveform |
Pure Sine Wave |
|
Input Voltage |
120V AC ± 10% |
|
Output Voltage |
120V AC ± 10% |
|
Outlets |
8 x NEMA 5-15R |
|
Plug Type & Cord |
NEMA 5-15P, 10 ft. cord |
|
Communication Ports |
USB, Serial, SmartConnect Ethernet Port |
|
Management Software |
PowerChute Serial Shutdown |
|
Data Line Protection |
Telephone, Network, Coaxial |
|
Battery Type |
Sealed Lead-Acid |
|
Runtime at Half Load |
Approximately 25.6 minutes |
|
Runtime at Full Load |
Approximately 8 minutes |
|
Recharge Time |
8 hours |
|
Dimensions (WxHxD) |
17.3" x 3.5" x 17.0" (440 mm x 89 mm x 432 mm) |
|
Weight |
28.3 lbs (12.84 kg) |
|
Warranty |
3 years (repair or replace) |
|
Compliance |
ENERGY STAR Certified, UL1778, cUL, CSAC22.2, 107.1, FCC DOC Class A |
Product Information
APC SMX750C Smart-UPS X is made to offer uninterrupted and adequate power protection to critical electronic items. Its AVR-based line-interactive topology guarantees that the equipment connected to it gets a constant voltage, and the pure sine output can be used with sensitive electronics. The UPS has eight ports, and there is a sufficient number of ports to connect a variety of devices. The SmartConnect option will enable cloud-based tracking and control that allows real-time visibility of the UPS operations and actively schedules maintenance. The UPS is also certified by the ENERGY STAR, which helps the company to achieve high energy efficiency standards, which lowers its operational costs and environmental impact. The size factor can be changed to tower and rackmount, which makes the flexible form factor appropriate in different installation settings.
