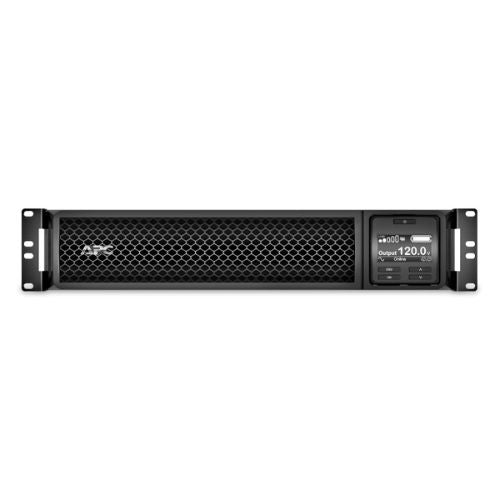

Product Overview
The APC SRT1000RMXLA-NC Smart-UPS SRT is an online UPS system which has high performance and therefore it will be able to protect the servers, networking equipment and most importantly the important IT applications with reliable power protection. A remote power supply with 1000VA / 900W rated clean, continuous power, it has double-conversion online topology which guarantees stable voltage and frequency effects upon external conditions even during unstable power conditions. This model has a built-in network management card (NC), which allows the remote monitoring of the network and managing it either through the web interface or SNMP. Its rack/tower convertible, LCD display, and hot-swappable batteries provide the utmost amount of flexibility and availability in enterprise and data center applications.
Key Features
-
True Online Double-Conversion: Converts constant, clean power to the sensitive equipment to avoid surges, noise, and changes in voltage.
-
Network Management Card (NC): Provides the ability to monitor and control remotely over Ethernet so that it becomes better manageable.
-
High Efficiency and Reliability: It produces 1000VA / 900W output and pure sine wave output to support its intensive applications.
-
LCD Interface: Easy to manage intuitive display with real-time status and power load with battery health.
-
Rack/Tower Convertible: Designed to fit easily depending on rackmount or tower mounting.
-
Hot-Swappable Batteries: Greater longevity during maintenance or battery change.
-
Long RunTime: Built in support of external battery packs to support scale up time.
-
Automatic Voltage Regulation (AVR): Does not waste battery power by maintaining a constant output voltage.
Technical Specifications
|
Feature |
Specification |
|
Model |
APC SRT1000RMXLA-NC |
|
Product Type |
Smart-UPS Online (Rack/Tower Convertible) |
|
Topology |
Double-Conversion (Online) |
|
Capacity |
1000VA / 900W |
|
Output Voltage |
120V AC |
|
Input Voltage Range |
82 – 144V AC |
|
Output Waveform |
Pure Sine Wave |
|
Form Factor |
Rackmount / Tower (2U) |
|
Display Type |
LCD with Status Indicators |
|
Communication Ports |
USB, Serial, SmartSlot, Ethernet (Network Card Included) |
|
Battery Type |
Sealed Lead-Acid, Maintenance-Free |
|
Battery Replacement |
Hot-Swappable |
|
Backup Time (Typical Load) |
~10 minutes at half load |
|
Management |
Web/SNMP via Network Card |
|
Cooling Method |
Forced Air (Fan) |
|
Noise Level |
< 55 dBA |
|
Operating Temperature |
0°C – 40°C |
|
Dimensions (H x W x D) |
85 x 432 x 457 mm (2U) |
|
Weight |
25.2 kg |
|
Color |
Black |
|
Warranty |
3-Year Manufacturer Warranty |
