Product Overview

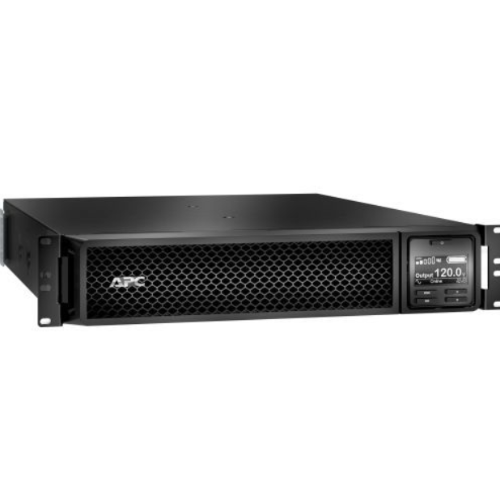

The APC SRT1500RMXLA-NC is a high-performance, double conversion online uninterruptible power supply (UPS) that is capable of offering reliable power protection to any critical electronic equipment. The 1500 VA / 1350 W 2U rackmount UPS is designed to supply a stable supply of power to the devices connected to it to prevent any power issues like surges, spikes, and outages that may affect the devices.
Key Features and Benefits
-
Double-Conversion Online Technology: Provides uninterrupted, pure sine wave power; basic equipment is fed on clean and steady power.
-
Long Run Maximum: Can use up to 10 external battery packs (SRT48RMBP), which enables scalable run time to satisfy the needs of sensitive applications.
-
Integrated Network Management Card: Allows the remote monitoring and control through a secure web interface, real-time status, and proactive messages.
-
LCD Display: Provides sufficient and accurate information on UPS status, battery health, and power status, making it easy to set up and monitor.
-
Rack/Tower Convertible Design: This design has a rail kit that can be easily fitted into the standard 19-inch racks, and can be changed to a tower configuration where necessary.
-
Energy Star Certified: Adheres to strict energy efficiency standards, and minimizes the electricity use and operating expenses.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
1500 VA / 1350 W |
|
Topology |
Double-Conversion On-Line |
|
Waveform Output |
Pure Sine Wave |
|
Input Voltage |
120 VAC ± 5% |
|
Output Voltage |
120 VAC ± 5% |
|
Surge Protection |
680 Joules |
|
Battery Type |
Sealed Lead-Acid (VRLA) |
|
Runtime (Full Load) |
6.5 minutes |
|
Runtime (Half Load) |
23.1 minutes |
|
Recharge Time |
3 hours |
|
LCD Display |
Yes |
|
Network Management Card |
Yes |
|
Outlets |
6 x NEMA 5-15R |
|
Rack Height |
2U |
|
Dimensions (HxWxD) |
8.5" x 17" x 20" (216 x 432 x 508 mm) |
|
Weight |
22 kg (48.5 lbs) |
|
Warranty |
3 years |
Product Information
The APC SRT1500RMXLA-NC Smart-UPS is a power converter designed to offer dependable power security to numerous electronics. Its double conversion online topology is used so that attached equipment gets constant and uninterrupted power, which is clean and stable, and thus can be used in sensitive equipment that needs steady voltage levels.

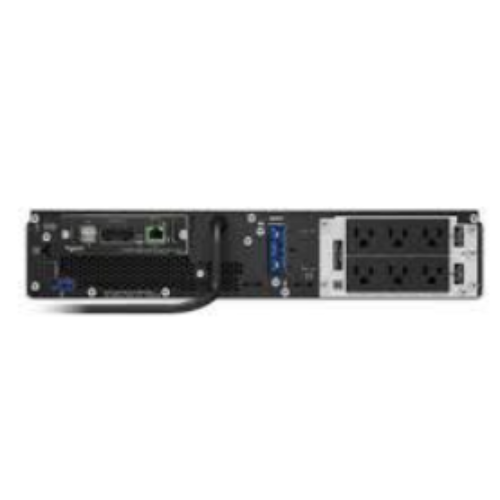

The LCD enables it to be easily used by users to check the real-time information on the status of the UPS, battery health, and power conditions. The unit has 6 NEMA 5-15R sockets, which give sufficient connections to various devices. The UPS also has an inbuilt network management card that enables it to be easily integrated with the networked devices, and also remote monitoring and management.
The SRT1500RMXLA-NC has 680 joules of surge protection rating to prevent any surges of power by diverting excess electrons to non-sensitive equipment. The unit is also Energy Star certified and satisfies the strict energy efficiency requirements to minimize the usage of electricity and the operating expenses.
Supported by 3-year warranty and the UPS and battery cover, the APC SRT1500RMXLA-NC Smart-UPS will offer excellent and efficient protection of the power to the vital electronic devices.
