Product Overview

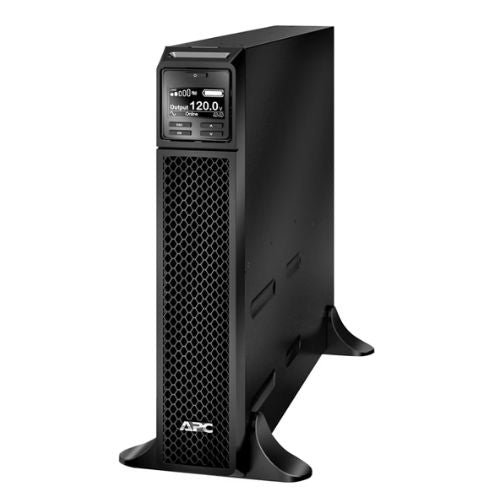

APC SRT1500XLA Smart-UPS is a high-performance uninterruptible power supply (UPS) that can be mounted on a rack to protect critical equipment during periods of power interruptions. Rated at 1500 VA / 1350 W of clean, reliable power to power servers, network switches, storage devices, and other essential electronics in a professional environment, this UPS has the capacity to serve more than 1500 tools on demand. It provides a smooth continuity of power with a smooth sine wave output, which doesn’t tend to become unstable in conditions of change in voltages, blackouts, and surges.
The SRT1500XLA has a 5-minute backup time with full load, and with a 3-hour recharge time, it has the best performance-to-efficiency ratio. The battery life is increased by intelligent battery control, and the delivery of power optimization is done automatically with the help of a voltage regulator (AVR). The LCD gives real-time load, voltage, and battery information; thus, monitoring and managing it becomes easy.
The APC Smart-UPS SRT1500XLA is scalable, reliable, and has compatibility with the network management cards to facilitate remote access, and thus is the selection of SRT where enterprise and data center applications are concerned.
Key Features
-
1500VA / 1350W Power Capacity: Gives stable backup to mission-critical devices.
-
Pure Sine Wave Output: Provides safe usage of delicate IT and networking devices.
-
Rack-Mountable Form Factor: Space-efficient 2U design that is perfect in server rooms and data centers.
-
Battery Recharge 3 Hr: The recovery period is fast, which reduces downtime.
-
5 minutes full load runtime: This gives plenty of time to properly shut down or failover systems.
-
LCD Display Panel: Shows voltage, load level, and battery status so that it can be easily monitored.
-
Automatic Voltage Regulation (AVR): Regulates the input voltage without dropping the battery.
-
Scalable Runtime: External battery packs are supported to extend the backup time.
-
Remote Management Ready: Supports an optional network management card.
-
Excellent Efficiency: Saves energy use and the cost of operation.
Technical Specifications
|
Feature |
Specification |
|
Brand |
APC |
|
Model |
SRT1500XLA |
|
Series |
Smart-UPS |
|
UPS Type |
Line-Interactive / Online Double Conversion |
|
Power Capacity |
1500VA / 1350W |
|
Input Voltage |
120V AC |
|
Output Voltage |
120V AC |
|
Output Waveform |
Pure Sine Wave |
|
Recharge Time |
Approximately 3 Hours |
|
Backup Time (Full Load) |
Up to 5 Minutes |
|
Transfer Time |
0 ms (Online) |
|
Battery Type |
Sealed Lead-Acid, Maintenance-Free |
|
Battery Replacement |
Hot-Swappable |
|
Display Type |
LCD with Status Indicators |
|
Communication Interfaces |
USB, Serial, SmartSlot, Optional Network Card |
|
Management Software |
PowerChute Business Edition |
|
Form Factor |
Rack-Mountable (2U) |
|
Surge Protection |
Included |
|
Noise Level |
< 45 dBA |
|
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
|
Dimensions (W × D × H) |
17 × 19.3 × 3.4 inches |
|
Weight |
57.3 lbs (26 kg) |
|
Color |
Black |
|
Warranty |
3-Year Limited Warranty |
