Product Overview

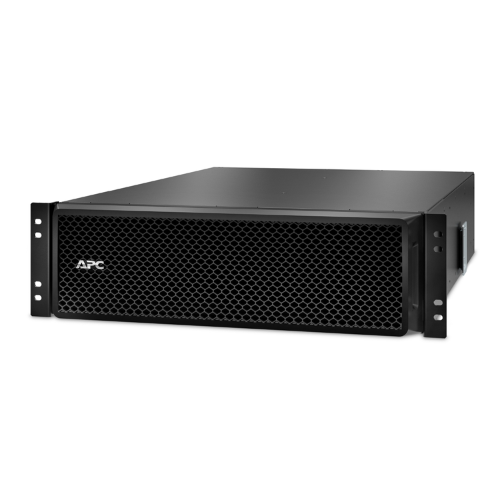

The APC SRT192RMBP2 is a large capacity, rack-mount battery pack designed to push the operating time of APC Smart-UPS SRT series models, namely the 8kVA and 10kVA models. This battery pack is specially built to support mission-critical environments, such that during more prolonged outages, the servers, networking equipment, and other sensitive electronic equipment remain powered off. It is ideal in data centers, IT closets, and enterprise applications, and provides reliable and predictable backup power when needed most.
Key Features and Benefits
-
Long Run Time: Graciously increases the operating life of the matching APC SRT UPS units to allow emergency systems to still be available in the face of extended outages.
-
Hot-Swappable Design: This is the capability to replace batteries without disconnecting connecting equipment, reducing downtime and operation risk.
-
Greater Battery Management: Battery monitoring enables maximum functionality by means of providing precise runtime prediction and cell health condition (embedded), module health condition, and cabinet health condition.
-
Large Capacity 192 V output: It supplies reliable DC power to maintain the UPS at full loads.
-
Rack-Mountable 3U Form Factor: The form factor is used to manage the space utilization in a standard IT rack and promote the convenience of data center and server room use.
-
Strong Build: Sealed lead-acid (VRLA) modules are built to be strong and safe, which leads to low maintenance.
Technical Specifications
|
Feature |
Specification |
|
Battery Type |
Sealed Lead-Acid (VRLA) |
|
Nominal Output Voltage |
192 V DC |
|
Rack Height |
3U |
|
Battery Modules per Pack |
2 |
|
Hot-Swappable |
Yes |
|
Runtime Support |
Compatible with APC SRT 8kVA and 10kVA UPS |
|
Maximum Expandable Packs |
Up to 10 battery packs |
|
Dimensions (HxWxD) |
5.1" x 17" x 26.9" (130 x 432 x 683 mm) |
|
Weight |
200 lbs (91 kg) |
|
Operating Temperature |
0°C to 40°C |
|
Storage Temperature |
-15°C to 45°C |
|
Humidity (Operating/Storage) |
0–95% non-condensing |
|
Compliance |
RoHS Compliant |
|
Warranty |
2 years repair or replacement |
Product Information
The SRT192RMBP2 is designed to deliver high-uptime backup power to enterprise-level UPS systems. It has a 3U rack-mountable design, which means it is highly efficient in its space usage, and the hot-swappable battery modules can be maintained or replaced without causing downtime. The packs have sophisticated battery monitoring, which ensures the administrators can see battery health, performance, and estimated runtime.

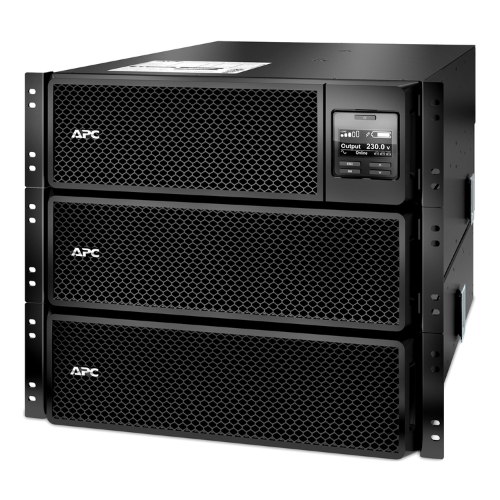

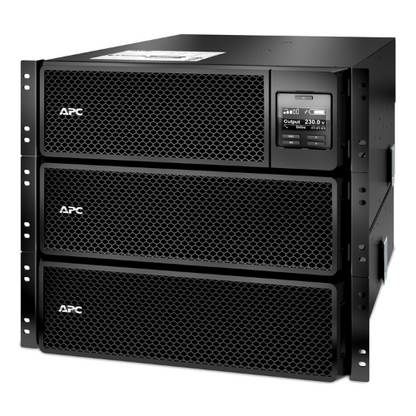

Supports up to 10 battery pack configurations. Compatible with APC SRT 8kVA and 10kVA UPS models, this battery pack is compatible with up to 10 battery packs, allowing longer run time in critical applications. The high-sealed lead-acid design increases maintenance efficiency and provides safe, reliable service in harsh conditions.
The SRT192RMBP2 has a 2-year warranty and the guarantee of a stable power supply to data centers, enterprise IT infrastructure, and other essential business operations
