Product Overview

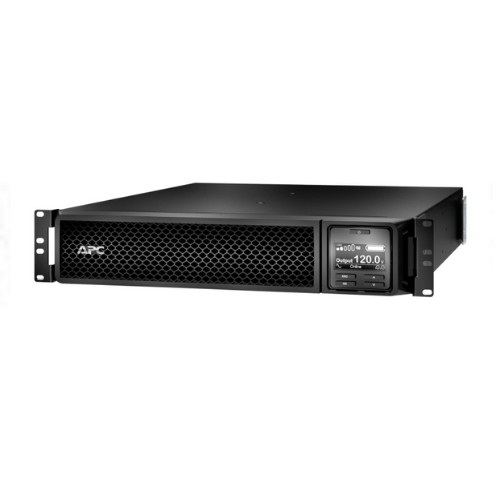

APC SRT2200RMXLA-NC Smart-UPS SRT 2200VA 120 V Rackmount 2U Network Card is a high-performance uninterruptible power supply (UPS) utilized to offer high-quality power protection to critical electronic devices. The 2200 VA, 1800 W, double-conversion online UPS is good due to its ability to provide high-quality continuous power to the sensitive equipment, hence its applications are in server, storage system, voice/data network, medical laboratories, and light industrial systems. It has a 2U rackmount body that fits well in server racks.
Key Features and Benefits
-
Online Topology Double-Conversion: Provides clean, steady power, converting incoming AC to DC, and then to AC, isolating connected equipment, and removing power disturbance.
-
Pure Sine Wave Output: This is an output that offers high-quality and stable power that is compatible with delicate electronics.
-
Network Management Card Included: Provides remote monitoring and control over a web interface, SNMP, or even a serial connection.
-
Long Run Time: Has a maximum of 10 external battery packs (SRT72RMBP) to allow a long backup in case of a long-time outage.
-
Rack/Tower Convertible: It can be easily mounted on a rail kit to fit into a 2U rackmount footprint; it can also be built as a tower unit when required.
-
Switched Outlet Groups: Individual outlet group control is provided to maximize load shedding and sequencing.
-
LCD Display: Real-time status and diagnostics have been offered, enabling easy management and monitoring.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
2200VA / 1800W |
|
Topology |
Double-Conversion On-Line |
|
Input Voltage |
120V AC ± 10% |
|
Output Voltage |
120V AC ± 10% |
|
Output Waveform |
Pure Sine Wave |
|
Output Frequency |
50/60Hz ± 3Hz (synchronized to mains) |
|

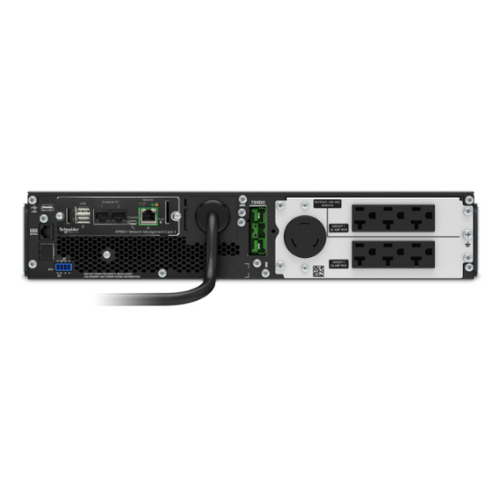

Outlets |
6 x NEMA 5-20R, 1 x NEMA L5-20R |
|
Input Connection |
NEMA 5-20P |
|
Battery Type |
Sealed Lead-Acid |
|
Battery Voltage |
72V |
|
Battery Modules Included |
1 |
|
Recharge Time |
Approximately 3 hours |
|
Extended Runtime |
Supports up to 10 external battery packs (SRT72RMBP) |
|
SmartSlot |
Yes (for optional accessories) |
|
Communication Ports |
USB, Serial, SmartConnect Ethernet Port |
|
Management Software |
PowerChute Business Edition |
|
Audible Noise Level |
40 dBA at 1 meter |
|
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
|
Storage Temperature |
-15°C to 45°C (5°F to 113°F) |
|
Operating Humidity |
0% to 95% (non-condensing) |
|
Operating Elevation |
0 to 10,000 ft (0 to 3,000 meters) |
|
Dimensions (WxHxD) |
17.2" x 3.5" x 17.2" (437 mm x 89 mm x 437 mm) |
|
Weight |
28.7 lbs (13 kg) |
|
Warranty |
3 years (repair or replace) |
|
Compliance |
ENERGY STAR Certified, UL1778, cUL, CSA C22.2, FCC Class A |
Product Information
The Smart-UPS APC SRT2200RMXLA-NC, Rackmount 2U 120 V with Network Card is designed to be a reliable power protection device for sensitive electronic equipment. Its double-conversion online topology allows it to withstand power anomalies, and the pure sine wave output guarantees its compatibility with a large variety of devices. The UPS has seven NEMA outlets, which provide a lot of connectivity to various devices. The installed Network Management Card can be monitored and managed remotely through a web portal, which provides the ability to proactively monitor the network and also update the firmware. It comes in different environments, such as 2U rackmount, which makes it easy to integrate. ENERGY STAR certification makes sure that the operation is energy efficient, the cost to operate is low, and the effect on the environment is less.
