Product Overview

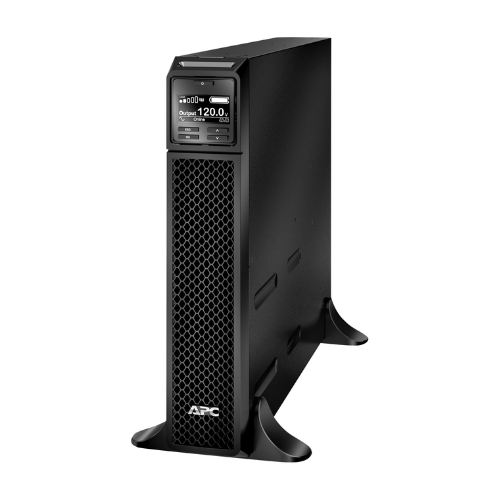

APC SRT2200XLA is a high-performance, double conversion online uninterruptible power supply (UPS) which is designed to offer security power to critical electronic equipment. This tower UPS will provide a steady supply of clean power to the devices that it is connected to, with a capacity of 2200 VA / 1980 W, which protects against any power interference like surges, spikes and outages.
Key Features and Benefits
-
Double-Conversion On-Line Topology: Provides a high-quality continuous power online with a good output through conversion of the incoming AC power into DC and back to AC, giving a pure sine wave output.
-
Long Runtime: Allows more battery packs to maintain long runtime when power is lost without the disconnection of connected equipment.
-
SmartSlot Optional Accessory Card: Can also install optional accessory cards, including network management cards, to provide a more functional and manageable appearance.
-
Pure Sine Wave Output: Provides clean and consistent power, which is appropriate when used with sensitive equipment such as servers, networking equipment, and point-of-sale systems.
-
Automatic Voltage Regulation (AVR): Adjusts small changes in power without changing to the battery to reduce battery life and maintain a steady current.
-
LCD Display: Provides precise and easy-to-understand information regarding UPS status, battery health and power conditions, making it easy to configure and monitor.
-
Energy Star Certified: It complies with rigorous energy efficiency standards, which saves power and lowers the operating expenses.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
2200 VA / 1980 W |
|
Topology |
Double-Conversion On-Line |
|
Waveform Output |
Pure Sine Wave |
|
Input Voltage |
120V AC |
|
Input Connector |
NEMA L5-20P |
|
Output Voltage |
120V AC |
|
Output Receptacles |
6 x NEMA 5-20R, 1 x NEMA L5-20R |
|
Form Factor |
Tower |
|
Battery Type |
Sealed Lead-Acid (VRLA) |
|
Runtime (Full Load) |
6.3 minutes |
|
Runtime (Half Load) |
14.5 minutes |
|
Recharge Time |
3 hours |
|
Dimensions (HxWxD) |
17.0" x 7.5" x 22.0" (432 x 191 x 559 mm) |
|
Weight |
98 lbs (44.5 kg) |
|
Warranty |
3 years |
Product Information
The APC SRT2200XLA Smart-UPS On-Line is developed with the intention of providing high-density, double-conversion, on-line power protection to a host of critical electronic equipment. A tower form factor gives it efficient use of space, and the long run time capacity allows adding more battery packs, which provides continued operation in the event of power outages.

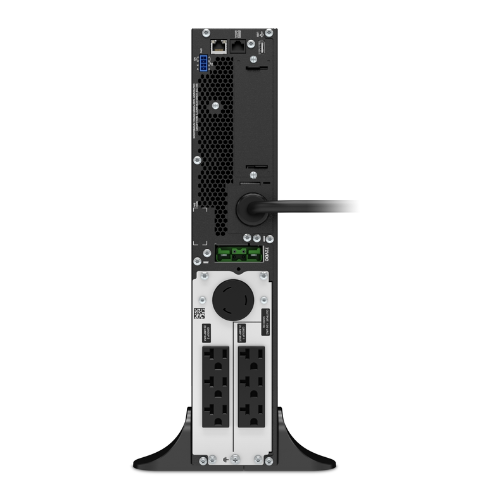

The UPS has 6 x NEMA 5-20R and 1 x NEMA L5-20R outlets, which, to a great degree, provide a wide range of connectivity options to different devices. The SmartSlot makes it possible to install additional accessory cards to add functionality and manageability; it supports the installation of optional accessory cards, like network management cards.
The LCD gives transparent and succinct data on the UPS condition, battery status and power situation, which makes it easy to set and control. Moreover, UPS has certification of Energy Star, which is highly energy efficient to minimize the use of electricity and operating expenses.
To make it run long, the UPS includes extra battery packs where the connected equipment can continue running when the power is discontinued. The warranty provided, 3 years, gives one confidence with full coverage of UPS and inner batteries.
The APC SRT2200XLA Smart-UPS On-Line has the benefit of providing efficient and effective protection of vital electronic equipment through the quality and reliability of Schneider Electric.
