Product Overview

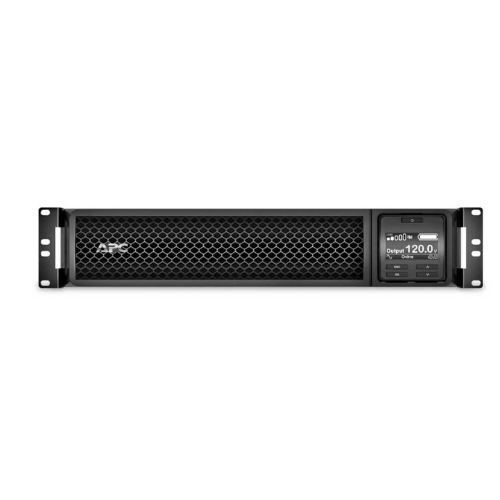

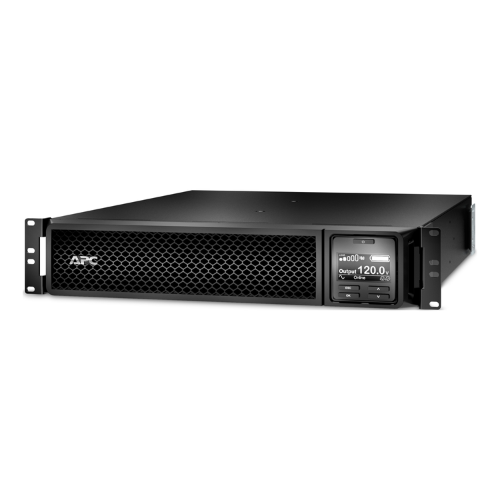

The APC SRT3000RMXLA-NC is a high-performance, online uninterruptible power supply (UPS) that is a double conversion, which is intended to supply high-performance power security to sensitive electronics. Having the capacity of 3000 VA / 2700 W, this 2U rackmount UPS will ensure that the devices connected to it will enjoy a consistent and clean power supply, which protects them against power disturbances like surges, spikes and outages.
Key Features and Benefits
-
Double-Conversion On-Line Topology: Provides pure sine wave power with continuous and high-quality power by converting incoming AC power to DC and then once more to AC.
-
Extended Run Time: Can use extra battery packs to have an extended run time when power interruptions occur and which would keep connected equipment running continuously.
-
SmartSlot of Optional Accessories: Optional accessories, cards as network management cards, can be installed to improve functionality and manageability.
-
Pure Sine Wave Output: Clean and stable power that is suitable for sensitive equipment such as servers, networking equipment and point of sale equipment.
-
Automatic Voltage Regulation (AVR): Adjusts small variations of the power supply without turning off to battery, prolongs battery life and provides consistent power output.
-
LCD Display: Provides simple and understandable data on UPS status, battery condition, and power state, which makes it simple to set up and monitor.
-
Energy Star Certified: Conforms to the strict standards of energy efficiency, which saves on electricity consumption and operating expenses.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
3000 VA / 2700 W |
|
Topology |
Double-Conversion On-Line |
|
Waveform Output |
Pure Sine Wave |
|
Input Voltage |
120V AC |
|
Input Connector |
NEMA L5-30P |
|
Output Voltage |
120V AC |
|
Output Receptacles |
8 x NEMA 5-20R, 1 x NEMA L5-30R |
|
Form Factor |
2U Rackmount |
|
Battery Type |
Sealed Lead-Acid (VRLA) |
|
Runtime (Full Load) |
6.3 minutes |
|
Runtime (Half Load) |
15.7 minutes |
|
Recharge Time |
3 hours |
|
Dimensions (HxWxD) |
3.5" x 17" x 22" (89 x 432 x 559 mm) |
|
Weight |
69 lbs (31.3 kg) |
|
Warranty |
3 years |
Product Information
The APC SRT3000RMXLA-NC Smart-UPS On-Line was designed to provide high-density, double-conversion online power protection against diverse, important electronic equipment. Its 2U rackmount design will enable efficient utilization of space, and the long run time features will support adding battery packs so that it can operate throughout a power failure.
The UPS should be used at the house with 8 x NEMA 5-20R and 1 x NEMA L5-30R outlets that enable it to be connected to different types of devices. The SmartSlot provides the ability to install optional accessory cards, like network management cards, to add functionality and manageability to the SmartSlot.
The LCD consists of vivid and succinct details of the UPS position, battery health, and power state, which ease the setup and monitoring process. The UPS is also an Energy Star-certified company to conducts operations that are full of energy efficiency to achieve low electricity consumption and operation costs.
The UPS can support more than two battery packs to ensure that connected equipment can work continuously during power outages. The 3-year warranty (included) is very gratifying and has an extended coverage of both UPS and internal batteries.
Through the reputation of quality and reliability of Schneider Electric, the APC SRT3000RMXLA-NC Smart-UPS On-Line is an efficient and reliable product to protect any critical electronic equipment.
