Product Overview

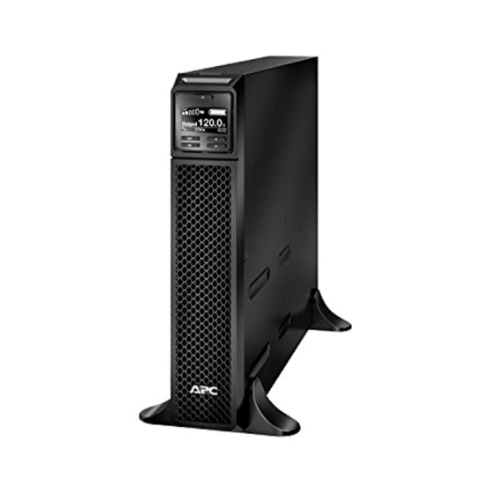

The APC SRT3000XLA is a high-performance and dual-conversion online uninterruptible power supply (UPS) designed to provide a reliable and clean supply of power to vital electronic devices. This tower UPS has 3000VA/2700W capacity, but the transfer time of this version is zero, ensuring the seamless adaptation to power outages. The sine wave of its output is pure and therefore can fit sensitive equipment, and the design can be made flexible, to be in tower or rackmount format, and thus can be applied to a wide variety of IT environments.
Key Features and Benefits
-
Topology Double-Conversion Online: This offers continuous power; it is achieved by converting AC to DC and then converting it to AC, such that there is no transfer time, and equipment is not exposed to any disturbances of power.
-
Pure Sine Wave Output: It offers continuous, intense, and shake-free power output, implying that it could be used with most sensitive electronic devices.
-
High Capacity: This has a capacity of 3000VA/2700W of power capacity; this implies that it will be able to operate several devices simultaneously, and it will not lead to a lapse in the functioning, even in case of a power interruption.
-
Long Run Time Application: It can be configured with up to 10 external battery packs, allowing it to be utilized with long backup time in long periods of power outages.
-
SmartSlot Network Management Card: UPS Remote monitoring and management of the system enables proactive maintenance of the system and gives system uptime.
-
ENERGY STAR Certified: Meets the high standards of energy efficiency, which is economical in terms of operation costs and effects on the environment.
-
Flexible Form Factor: is a tower UPS, although purchasable as a rackmount with an optional rail kit, and the advantage of being able to operate in either environment.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
3000VA / 2700W |
|
Topology |
Double-Conversion On-Line |
|
Output Waveform |
Pure Sine Wave |
|
Input Voltage |
120V AC ± 10% |
|
Output Voltage |
120V AC ± 10% |
|
Output Frequency |
50/60Hz ± 3Hz (synchronized to mains) |
|
Outlets |
8 x NEMA 5-20R, 1 x NEMA L5-30R |
|
Input Connection |
NEMA L5-30P |
|
Battery Type |
Maintenance-free sealed Lead-Acid |
|
Battery Voltage |
96V |
|
Battery Modules Included |
1 |
|
Recharge Time |
Approximately 3 hours |
|
Extended Runtime |
Supports up to 10 external SRT96BP battery packs |
|
SmartSlot |
Yes (for Network Management Card) |
|
Management Software |
PowerChute Network Shutdown |
|
Audible Noise Level |
55 dBA at 1 meter |
|
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
|
Storage Temperature |
-15°C to 45°C (5°F to 113°F) |
|
Operating Humidity |
0% to 95% (non-condensing) |
|
Operating Elevation |
0 to 10,000 ft (0 to 3,000 meters) |
|
Dimensions (WxHxD) |
8.5" x 17.0" x 25.0" (216 x 432 x 635 mm) |
|
Weight |
88.2 lbs (40 kg) |
|
Warranty |
3 years (repair or replace) |
|
Compliance |
ENERGY STAR Certified, UL1778, cUL, CSA C22.2, FCC Class A |
Product Information

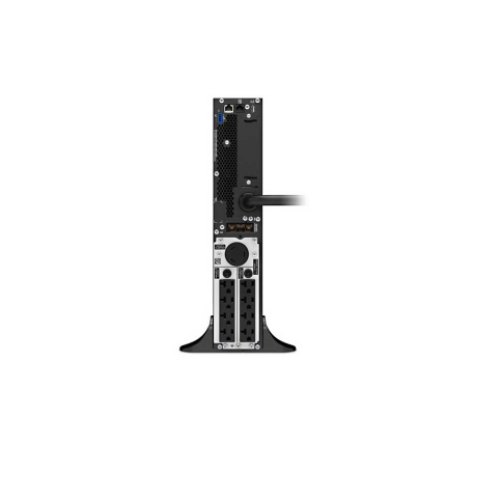

APC SRT3000XLA has been designed to offer high-density, double conversion online power protection with expandable runtime. Its capacity of 3000 VA/2700 W points out to the fact that the equipment that is connected to it will still run during a power outage. The UPS has nine outlets (8 NEMA 5-20R and 1 NEMA L5-30R) that provide sufficient connectivity to a variety of devices. SmartSlot has the option to install a Network Management Card that can be used to monitor and manage remotely. The UPS can offer extended operating time in case of an extended power outage since it can support up to 10 additional external SRT96BP battery packs. It is certified to be energy efficient through the ENERGY STAR, which lowers operation expenses and environmental effects. Its design is flexible and can be used either as a tower or rackmount system, which means it can fit any installation environment.
