Product Overview

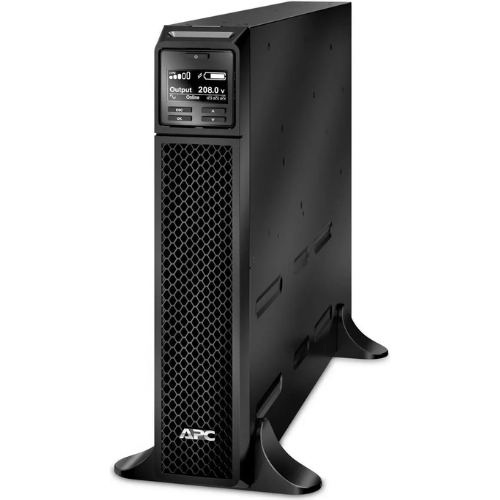

APC SRT3000XLT is an uninterruptible power supply (UPS), which is a high-performance, 2-conversion, online, non-upgradable, electronic power supply that is used to supply power protection to critical electronic equipment. This tower UPS has a capacity of 3000 VA / 2700 W, and this means that all the devices connected to this tower will access power that is steady and clean to protect them against electricity problems like surges, spikes, and outages.
Key Features and Benefits
-
Double-Conversion Online Topology: Provides high-quality continuous power by converting incoming AC power to DC and converting it back to AC, giving a pure sine wave output.
-
Extended Runtime Capability: Can include additional battery packs to have extended runtime when power is unavailable, so that equipment connected to it will continue operating.
-
SmartSlot to insert Additional Accessories: It can support the insertion of the optional accessory cards, like the network management card, to maximize its functionality and management.
-
Pure Sine Wave Output: Provides smoother and purer power, and thus it can be used with sensitive equipment such as servers, networking devices, and point-of-sale systems.
-
Automatic Voltage Regulation (AVR): Automatically corrects minor variations in the power supply without going to battery life, prolongs battery life, and maintains steady voltages.
-
LCD Display: Provides a compact and easy-to-understand display of UPS status, battery performance, and power status to enable easy configuration and monitoring of battery performance.
-
Energy Star Certified: Certified to be highly energy efficient, which lowers electricity usage and operating expenses.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
3000 VA / 2700 W |
|
Topology |
Double-Conversion On-Line |
|
Waveform Output |
Pure Sine Wave |
|
Input Voltage |
208V AC |
|
Input Connector |
NEMA L6-20P |
|
Output Voltage |
208V AC |
|
Output Receptacles |
2 x NEMA L6-20R, 1 x NEMA L6-30R |
|
Form Factor |
Tower |
|
Battery Type |
Sealed Lead-Acid (VRLA) |
|
Runtime (Full Load) |
4 minutes |
|
Runtime (Half Load) |
10 minutes |
|
Recharge Time |
3 hours |
|
Dimensions (HxWxD) |
17.0" x 7.5" x 22.0" (432 x 191 x 559 mm) |
|
Weight |
69 lbs (31.3 kg) |
|
Warranty |
3 years |
Product Information
The APC SRT3000XLT Smart-UPS Online has been designed to provide online power protection of high-density, double-conversion on a wide array of critical electronic devices. Its tower shape provides good utilization of space, and the long runtime feature is used to add battery packs to allow the device to operate throughout a power failure.

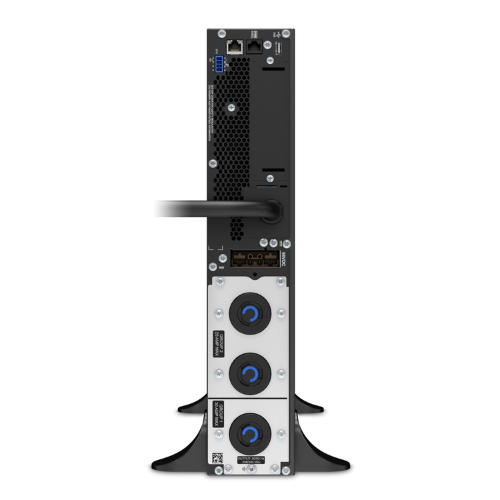

The UPS has a 2 x NEMA L6-20R and 1 x NEMA L6-30R outlet that provides a wide range of compatibility with different gadgets. The SmartSlot feature allows optional accessory cards, e.g., network management cards, to be installed to add functionality and manageability.
The LCD screen is easy to set up and read, displaying concise and transparent information on the UPS, battery health, and power conditions, which can be easily monitored. Furthermore, UPS is an Energy Star-certified company that complies with the strict rules of energy efficiency to minimize the use of electricity and operating expenses.
To prolong operation, the UPS will have backup battery packs, and the connected equipment will maintain its operation even when there is no power supply. The warranty that is included gives a 3-year warranty with complete coverage of both the UPS and internal batteries.
The APC SRT3000XLT Smart-UPS Online is a highly efficient and reliable power protection system with an intelligent UPS that is supported by the reputation of Schneider Electric as a quality and dependable product in this category.
