Product Overview

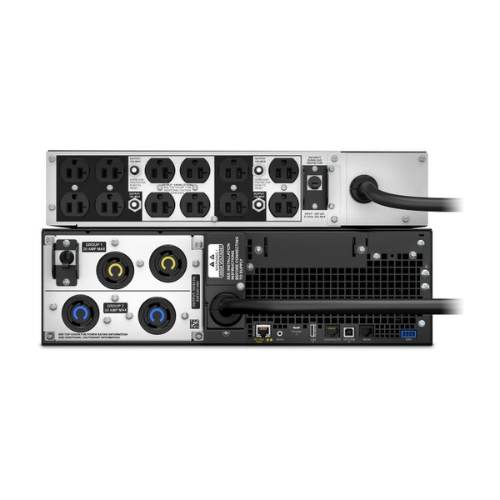

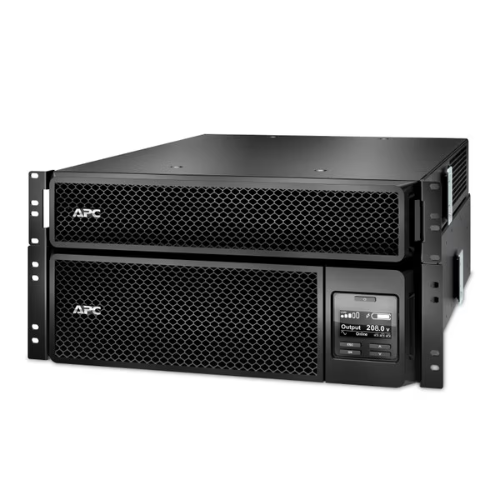

APC SRT5KRMTF Step-Down Transformer is a high-performance accessory that will be utilized in the Smart-UPS APC SRT 5kVA rackmount UPS systems. It is a two-unit rackmount transformer that is a high-performance device that can be effectively used to lower the 208 V AC input to 120 V AC output to provide a high-quality power supply to the essential IT equipment in the data center, server room, and industry. It has 12 NEMA 5-20R ports, which give it a diverse range of connections to an extensive range of devices.
Key Features and Benefits
-
High Capacity Conversion: 208V AC to 120V AC, with a five kVa capacity of output that can supply power to the required devices.
-
Visa Flexible Outlet Design: Can have 12 NEMA 5-20R outlets, which can be configured to share power with several pieces of equipment.
-
Efficient Rackmount Design: Occupies 2U of rackspace, which utilizes the maximum space in server racks.
-
Integrated Mounting Hardware: All the mounting hardware and hardware needed to install easily in 19-inch racks.
-
Enduring Construction: It will be built with quality materials that will ensure the longevity and reliability of its use.
-
Complete Warranty: It has a 2-year warranty that provides it with peace of mind and support.
Technical Specifications
|
Feature |
Specification |
|
Input Voltage |
208V AC |
|
Output Voltage |
120V AC |
|
Power Capacity |
5kVA |
|
Number of Outlets |
12 |
|
Outlet Type |
NEMA 5-20R |
|
Rack Height |
2U |
|
Dimensions (HxWxD) |
3.5" x 17" x 25.1" (89mm x 432mm x 637mm) |
|
Weight |
95 lbs (43.09 kg) |
|
Input Connection |
NEMA L6-30P |
|
Mounting Type |
Rackmount (19-inch) |
|
Warranty |
2 years |
Product Information
APC SRT5KRMTF Step-Down Transformer is a component that is needed in areas where a conversion of 208 V AC input to 120 V AC output will be required. It has 5kVA of capacity, which is sufficient to allow the equipment to work well. The outlets are either 12 NEMA 5-20R, and they are highly flexible in connecting with various devices at the same time.
The transformer is designed to be highly integrable to fit into, fitted with all the mounting hardware required, and can thus easily be installed to fit into 19-inch standard racks. The 2U form factor allows it to be efficient in its usage of rack space, and so it is the correct choice in places where rack space is a key factor.
The SRT5KRMTF was made to be very durable to ensure that it meets the demands of round-the-clock operations in a high-pressure setting. The 2-year warranty highlights the level at which quality and customer satisfaction are the point of focus at APC because it provides quality support and service.
