Product Overview

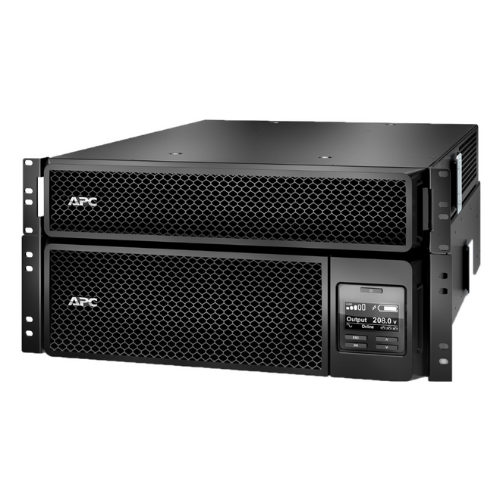

The APC SRT5KRMXLT-5KTF is an online uninterruptible power supply (UPS), high-performance, double-conversion power supply built to offer reliable power protection to critical electronic devices. This 5U rackmount UPS can protect connected equipment with a capacity of 5000 VA / 4250 W at a constant power, increasing their reliability to power outages, surges, and spikes, and allows equipment to operate on clean power at all times.
Key Features and Benefits
-
Double-Conversion On-Line Topology: Provides continuous and high-quality power by converting incoming AC power to DC, and then converting the DC to AC, which is a pure sine wave.
-
208 V to 120 V Step-Down Transformer with Integration: This type of transformer enables a smooth transition between voltages and is, therefore, appropriate in situations in which 120 V output is needed due to the use of a 208 V supply.
-

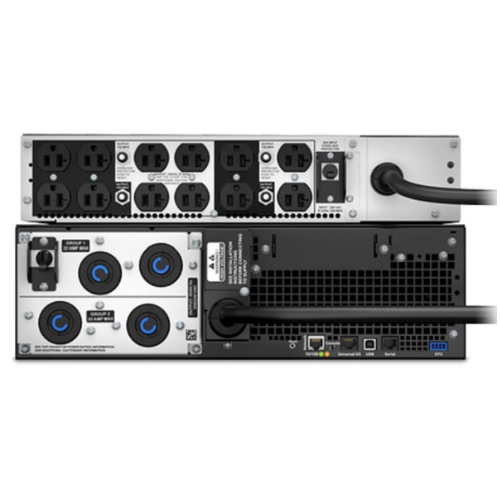

Multi-NEMA outlets: The system has 12 x NEMA 5- 20R, 2 x NEMA L6-20R, and 2 x NEMA L6-30R outlets that deliver high flexibility of connection to a wide range of devices.
-
Rack/Tower Convertible Design: It has a rail kit that can be easily added either in rack or tower format, providing flexibility to fit varying configurations.
-
Network Management Card: This includes the embedded Network Management Card, which can be used to monitor and control remotely, making the management of the UPS easier.
-
SmartSlot to Expansion: Has a SmartSlot where optional accessory cards (e.g., dry contact I/O cards) can be added to expand functionality.
-
Long charge life: Up to 10 external battery packs (SRT192RMBP) can be used to provide long run times, meaning that the system will always have power when required, during times of long outage.
-
PowerChute Network Shutdown Software: Enhanced shutdown of linked gear in the case of prolonged power outages without damaging information and hardware.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
5000 VA / 4250 W |
|
Topology |
Double-Conversion On-Line |
|
Waveform Output |
Pure Sine Wave |
|
Input Voltage |
208V AC |
|
Input Connection |
NEMA L6-30P |
|
Output Voltage |
120V AC |
|
Output Connections |
12 x NEMA 5-20R, 2 x NEMA L6-20R, 2 x NEMA L6-30R |
|
Form Factor |
5U Rack/Tower Convertible |
|
LCD Display |
Graphic LCD |
|
Network Management |
Embedded Network Management Card |
|
SmartSlot |
Yes |
|
Battery Pack Support |
Up to 10 x SRT192RMBP |
|
Rail Kit Included |
Yes |
|
Dimensions (HxWxD) |
8.58" x 17.01" x 28.31" |
|
Weight |
218 lbs |
|
Warranty |
3 years |
Product Information
APC SRT5KRMXLT-5KTF Smart-UPS On-Line is designed to provide high-density, double-conversion on-line power protection to a whole range of sensitive electronic devices. Its 5U rack mount configuration makes it use a moderate space efficiently, and the built-in 208 V-120 V step-down transformer ensures smooth conversion of voltage, and thus it can be adapted to any environment that needs 120 V output with 208 V input.
The UPS will have 12 x NEMA 5-20R, 2 x NEMA L6-20R, and 2 x NEMA L6-30R outlets, which will provide a high degree of flexibility and grant a wide range of connectivity options to a range of devices. The rack/tower convertible design has a rail kit to easily install it in rack mount or tower format, to provide flexibility to suit any system.
The built-in Network Management Card offers the ability to have remote monitoring and control, which enables the effective management of the UPS. Moreover, there is the SmartSlot feature that allows fitting optional accessory cards, including the dry contact I/O cards, to improve functionality.
The UPS can accommodate up to 10 external battery packs (SRT192RMBP) so that it will have constant power when the power goes off. The enclosed PowerChute Network Shutdown software can be used to gracefully shut down networked devices during longer blackouts to avoid loss of data and damage to hardware.
The APC SRT5KRMXLT-5KTF Smart-UPS On-Line is a reliable and efficient power protection for electronic devices that are critical and supported by a 3-year warranty.
