Product Overview

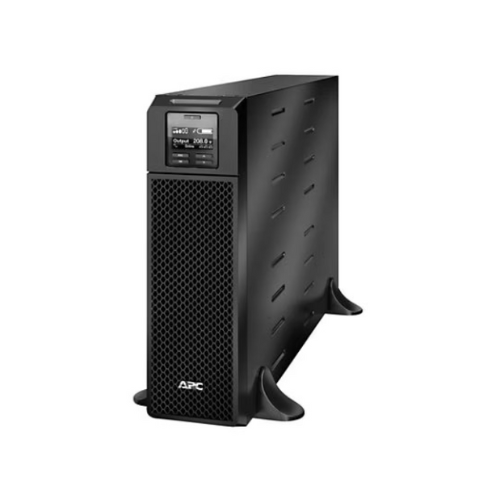

The APC SRT5KXLT is a power supply, a 5.4kVA (4.8kW) online, double-conversion uninterruptible power supply (UPS), which is available to provide reliable power security to critical IT infrastructure. This UPS has 208 V input/output and tower architecture, and this gives uninterrupted power protection to servers and storage systems, as well as networking devices and other fragile electronics. It has a sinus wave output that is pure, a long run time, and an elaborate monitoring system, which makes it an ideal match to data centers, medical work-labs, and edge computing systems.
Key Features and Benefits
-
High Capacity Power Protection: Provides 5.4kVA (4.8kW) of double-conversion online pure sine wave power, which provides clean and stable power to the devices attached to it.
-
Long runtime: Scalable runtime, 10 external battery packs (SRT192BP) can be added to ensure extended power outages.
-
Comprehensive Monitoring: It has a SmartConnect Ethernet port, and it can be used to monitor and manage remotely, over the cloud, through the EcoStruxure IT platform.
-
Rack/Tower Convertible: Has a rail kit to easily change between rackmount and tower apparatus, and gives it flexibility in its implementation.
-
Energy efficient: It has lead-acid battery technology and is highly efficient to minimize the energy usage and operating expense.
-
Strong Construction: The product is made using quality raw materials to ensure that it is durable and reliable in harsh conditions.
Technical Specifications
|
Feature |
Specification |
|
Model |
SRT5KXLT |
|
Form Factor |
Tower |
|
Input Voltage |
208V AC |
|
Output Voltage |
208V AC |
|
Capacity |
5400 VA / 4800 W |
|
Topology |
Double-Conversion On-Line |
|
Waveform |
Pure Sine Wave |
|
Outlets |
2 x NEMA L6-20R, 2 x NEMA L6-30R |
|
Input Plug |
NEMA L6-30P |
|
Surge Energy Rating |
680 Joules |
|
Transfer Time |
0 ms |
|
Battery Type |
Lead-Acid |
|
Battery Voltage |
192V |
|
Recharge Time |
1.5 hours |
|
LCD Display |
Multifunction, hot-swappable |
|
SmartConnect Port |
Yes |
|
SmartSlot |
Yes |
|
Operating Temperature |
0–40°C (32–104°F) |
|
Operating Humidity |
0–95% (non-condensing) |
|
Dimensions (W x D x H) |
17.008" x 10.2" x 28.3" |
|
Weight |
248 lbs (112.49 kg) |
|
Warranty |
1-Year Limited Warranty |
Product Information
The APC SRT5KXLT is designed to offer practical and dependable power protection to necessary IT devices. Its online design, which provides a double conversion of power, provides devices that are connected with clean and stable power, without the voltage fluctuations and troubles. The UPS has a pure sine output, hence it can be used in sensitive electronics that need quality power.
The SRT5KXLT has a SmartConnect Ethernet, which can be connected to remote monitoring and management using the EcoStruxure IT platform. This is a feature that is critical to the IT administrators who must maintain uninterrupted performance and rapidly address possible problems.
The UPS is an adaptable product; the tower shape enables the product to fit easily in any kind of setting. The 4 NEMA outlets will have sufficient connectivity to various devices, and the surge protection will divert excess voltage from the sensitive electronic devices during an AC power surge or power spike to avoid damage.
To have a longer duration of run time in case of power failure, SRT5KXLT will support up to 10 external battery packs (SRT192BP), which will enable businesses to continue operating longer without failure.
Overall, the APC SRT5KXLT is a powerful and flexible UPS solution that provides high-capacity power protection, extended runtime, and comprehensive monitoring solutions, making it a perfect option for protecting critical IT infrastructure.
