Product Overview

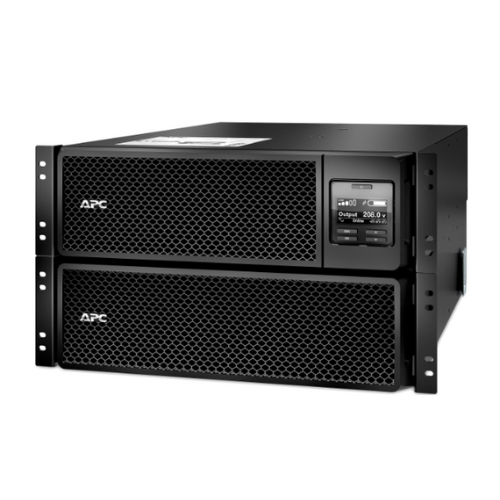

APC SRT8KRMXLT Smart-UPS Online is a fast uninterruptible power supply (UPS) that is intended to offer precise reserve power and surge security to a vital electronic device. Having a capacity of 8,000VA/8,000W, this 6U rackmount UPS guarantees that your equipment will stay online during a power outage and stay safe against voltage changes. Its two-way conversion online topology provides clean and reliable power, and the sine wave output is pure and remains compatible with sensitive electronics.
Key Features and Benefits
-
Double-Conversion Online Topology: This has the benefit of offering continuous, high-quality power due to the conversion of incoming AC power to DC and back to AC to maintain a steady and constant output voltage.
-
Pure Sine Wave Output: Provides clean and stable power to sensitive electronics to provide maximum performance and life span.
-
High Capacity: Has 8,000VA/8,000W power output, which is applicable in high-demand applications like servers, storage systems, and networking equipment.
-
Rackmount 6U Form Factor: The 6U design fits into the standard 19-inch server rack with ease, and the available space can be used to add an extra server.
-

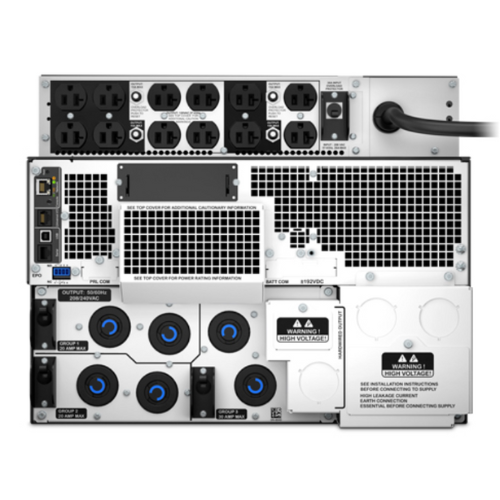

Various Outlet Options: The device has 4x NEMA L6-20R and 2x NEMA L6-30R outlets so that the device can be used with a wide range of plugs.
-
Network Management Card: This card will come with a Secure Network Management Card to remotely monitor and manage using a web interface.
-
SmartSlot Expansion: 5 features an optional SmartSlot up to which it can be expanded with optional accessories like environmental monitoring or dry contact I/O cards.
-
Long Run Time: Can run up to 10 external battery packs (sold separately) when there is a power outage.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
8,000 VA / 8,000 W |
|
Topology |
Double-Conversion On-Line |
|
Waveform |
Pure Sine Wave |
|
Input Voltage |
208V AC ± 10% |
|
Output Voltage |
208V AC ± 10% |
|
Outlets |
4x NEMA L6-20R, 2x NEMA L6-30R |
|
Form Factor |
Rackmount 6U |
|
Dimensions (WxHxD) |
17.3" x 10.4" x 28.2" (438 mm x 264 mm x 716 mm) |
|
Weight |
246 lbs (111.6 kg) |
|
Battery Type |
Sealed Lead-Acid |
|
Recharge Time |
1.5 hours |
|
Efficiency |
Up to 98.9% at full load |
|
Warranty |
3 years (UPS), 2 years (battery) |
Product Information
APC SRT8KRMXLT Smart-UPS Online: The ultrasonic APC is designed to give high-quality and fast power protection to essential electronic appliances. Its online topology, which is double converted, provides the equipment to which it is connected with a steady voltage, where the pure sine wave output is compatible with sensitive electronics. The UPS has a 6U rackmount form factor, which is easily integrated into a standard server rack. It has the ability of 8,000VA/8,000W which is applicable when the application is based on high demand. The Network Management Card provided can be monitored and managed remotely, enabling proactive maintenance of the component and reducing downtime.
