Product Overview

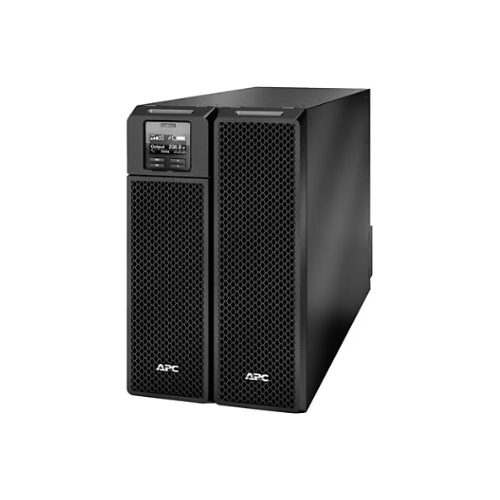

The APC Smart-UPS SRT 8000VA 208V (SRT8KXLT) is an online, high-performance, double-conversion Uninterruptible Power Supply (UPS), which is used to supply high-performance, clean, and continuous power to essential IT equipment. Having the capacity of 8000VA / 8000W and a pure sine output, this tower UPS protects servers, network equipment, storage boxes, and telecommunications devices against power disruptions like surges, spikes, and disturbances. It is designed in a universal format and can be installed in a rack-mounted format as well as tower format, thus it is suitable for enterprise environments and data centers.
Key Features and Benefits
-
Double-Conversion Topology: Provides uniform, clean, and virtually untainted power, independent of the state of incoming power.
-
Pure Sine Wave Output: Provides clean power that is stable to ensure peak performance and long life of delicate equipment.
-
Adjustable Output Voltage: Provides versatility of adjusting the output voltage to 208 V, 220 V, and 230 V.
-
Fast Charge Technology: It is a quick way to restore full backup power and reduce the downtime of an outage.
-
Expandable LCD Control Panel: This is a simple panel that can show real-time data on the UPS position, battery, and load, among other things.
-
Smart Battery Management: Maximizes battery efficiency and increases battery life with the use of advanced charging technology.
-
GreenPower UPS™ ECO Mode: Helps to save energy and operating expenses, since it enhances efficiency.
-
Generator Compatibility: Features Generator compatibility with generator sources.
-
Surge Protection: Guards against surges and spikes of power to the equipment connected.
-
Unconditional Warranty: The warranty period is 3 years, plus a $400,000 Connected Equipment Guarantee to have peace of mind.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
8000 VA / 8000 W |
|
Topology |
Double-Conversion On-Line |
|
Output Voltage (Configurable) |
208V, 220V, 230V ±2% |
|
Output Waveform |
Pure Sine Wave |
|
Input Voltage |
208V ±2% |
|
Frequency |
50/60 Hz ±3 Hz |
|
Power Factor |
0.9 |
|
Battery Type |
Valve Regulated Lead-Acid (VRLA) |
|
Battery Runtime (Full Load) |
Approximately 5 minutes |
|
Battery Runtime (Half Load) |
Approximately 10 minutes |
|
Recharge Time |
Approximately 1.5 hours |
|
Form Factor |
Tower/Rack Convertible (6U) |
|

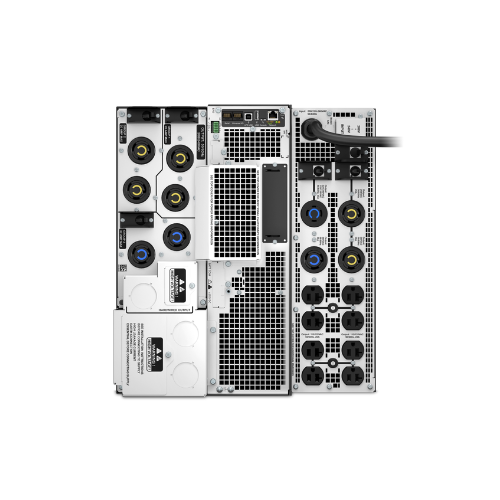

Outlets |
4 x NEMA L6-20R, 2 x NEMA L6-30R, 1 x Hard Wire 3-wire (2PH + G) |
|
Surge Energy Rating |
480 Joules |
|
Weight |
246 lbs (111.6 kg) |
|
Dimensions (WxDxH) |
17.0" x 10.4" x 28.1" (432 x 264 x 714 mm) |
|
Certifications |
UL1778, CSA C22.2 No. 107.3-05, FCC Class A |
|
Warranty |
3-year limited warranty |
Product Information
The APC Smart-UPS SRT 8000VA 208 V (SRT8KXLT) is designed to offer quality and reliable power protection to critical IT infrastructures. Its double-conversion topology can supply clean and steady power to connected equipment with no interference in the form of voltage sags, surges, and electrical noise. The output of the pure sine wave is also mostly convenient to sensitive devices such as servers and networking equipment, which are sensitive to power irregularities.
The UPS is also flexible in installation as it is available in the 6U rackmount format, hence it can be used in many locations, such as data centers, server rooms, and telecommunications buildings. An extendable LCD control panel allows real-time monitoring, and a Smart Battery management system is used to optimise battery performance and to increase battery life.
The SRT8KXLT is equipped with such functions as generator compatibility and surge protection, which make it resistant to operating even in the case of a power disturbance. The design is energy-efficient, which contributes to the low operation cost, but the overall warranty and the very big Connected Equipment Guarantee provide the users with the assurance that the UPS can be trusted to deliver the necessary services in instances where critical operations are needed.
