Product Overview

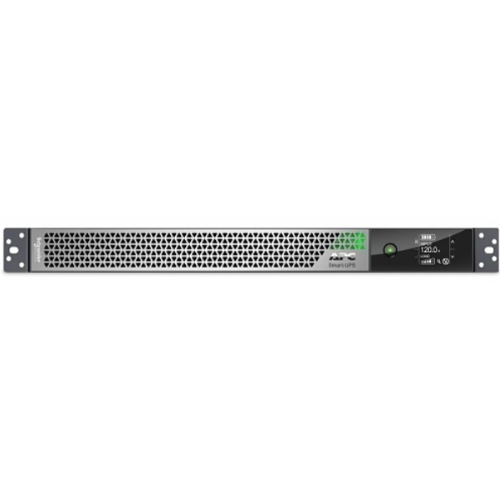

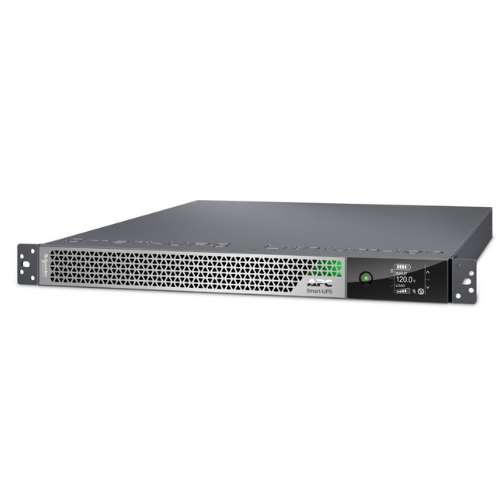

The APC SRTL2K2RM1UNC is an online uninterruptible power supply (UPS) of variable input (210 V) and variable output (450 V) that is a high-performance, double conversion power supply, which is designed to offer reliable power protection to sensitive electronic devices. The 1u rackmount UPS has a capacity of 2200 VA / 1950 W to make sure that devices connected to it are supplied with power of standard quality and that they are not affected by any disturbances in the power flow: surges, spikes, interruptions, etc.
Key Features and Benefits
-
On-Line Topology Double-Conversion: Provides high power, high-quality by converting the incoming AC power to DC and then back to AC to provide a pure sine wave output.
-
Lithium-Ion Battery Technology: Offers longer life and greater energy density than conventional VRLA batteries, which lessens the overall cost of ownership.
-
Long Run Time: Accepts extra battery packs in case of power failure to maintain a longer operating time of the equipment attached to it.
-
EcoStruxure Ready: Allows remote monitoring and operating with the use of the EcoStruxure IT platform by Schneider Electric, which provides real-time insight and proactive alerts.
-
Flexible Mounting: Opportunities are provided to mount the system in multiple orientations, like rackmount, tower, wall, ceiling, or under mount on the desk, to provide flexibility to suit any environment.
-
Network Management Card Included: This will enable remote control and monitoring of the UPS through a web interface, SNMP or email alerts.
-
5-Year Warranty: Provides a warranty of a lifetime that includes the UPS and internal batteries.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
2200 VA / 1950 W |
|
Topology |
Double-Conversion On-Line |
|
Waveform Output |
Pure Sine Wave |
|
Input Voltage |
120V AC |
|
Input Connector |
NEMA L5-20P |
|
Output Voltage |
120V AC |
|
Output Receptacles |
5 x NEMA 5-20R, 1 x NEMA L5-20R |
|
Form Factor |
1U Rack/Tower Convertible |
|
Battery Type |
Lithium-Ion |
|
Runtime (Full Load) |
6 minutes |
|
Runtime (Half Load) |
14 minutes |
|
Dimensions (HxWxD) |
1.75" x 19" x 24" |
|
Weight |
35.05 lbs (15.9 kg) |
|
Warranty |
5 years |
Product Information
The APC SRTL2K2RM1UNC Smart-UPS Ultra On-Line has been designed to provide on-line power protection in high-density environments and in the form of two conversions to various high-density electronic devices. Its 1U rackmount design means it is efficient in space utilisation, and the lithium-ion battery technology has a longer life-cycle and higher energy density than traditional VRLA batteries, making it cheaper to maintain ownership overall.
The UPS has 5 x NEMA 5-20R and 1 x NEMA L5-20R outlets, providing a wide range of connection possibilities with different devices. The rack/ tower convertible design can be installed in various positions, rackmount, tower, wall, ceiling, or desk under mount, which is flexible to suit multiple environments.
The Network Management Card built-in provides the possibility to monitor and control UPS remotely using a web-based interface, SNMP, or email. The UPS can also be configured to be EcoStruxure™ Ready, allowing remote control and management of the equipment via the EcoStruxure IT platform by Schneider Electric, allowing real-time understanding and alerts.
To be able to last longer on a run, the UPS can tolerate extra battery packs, which means that related devices will run continuously even in the event of a power outage. The 5-year warranty provided gives one the confidence of a wide coverage, both in the UPS and internal batteries.
Supported by the reputation of quality and reliability of Schneider Electric, the APC SRTL2K2RM1UNC Smart-UPS Ultra On-Line offers quality and reliable protection of power to important electronic devices.
