Product Overview

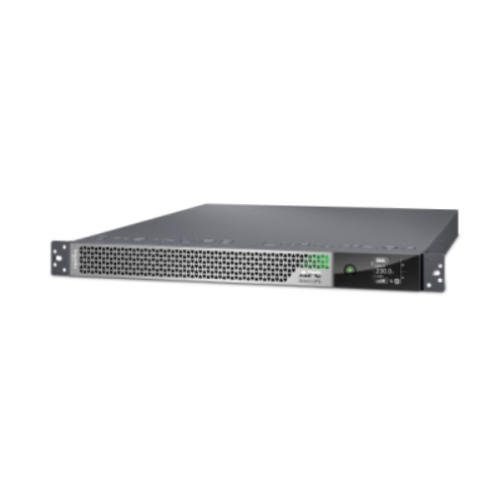

The APC SRTL3KRM1UWC is a 3kVA (3,000W) double-conversion online uninterruptible power supply (UPS) with a high-performance of 3,000W in an IT infrastructure-critical configuration. The UPS has a 208/230 V input and output and a 1U rackmount dimension, which guarantees a smooth power supply to servers, storage devices, networking devices, and other delicate electronics. Its pure sine-based output, long operating durability, and all-inclusive monitoring features qualify it to be the best fit in data centers, medical laboratories, and edge computing platforms.
Key Features and Benefits
-
High Capacity Power Protection: Provides 3kVA (3,000W) of 2x conversion online pure sine wave electric power, which provides clean and stable electricity to connected equipment.
-
Too Long to Run: Can accept up to 5 external battery packs (SRTL50RMBP1U-Li) to scale the runtime, supporting longer power outages.
-
Comprehensive Monitoring: The SmartConnect Ethernet port has the capability of controlling and monitoring remotely in the clouds using the EcoStruxure IT platform.
-
Rack/Tower Convertible: It has a rail kit to convert between rackmount and tower configurations, giving it flexibility in use.
-
Energy Efficient: It uses the lithium-ion battery technology that minimizes the rate at which it is replaced and has a longer life as opposed to the traditional lead-acid batteries.
-
Durability and reliability: Built using the best materials to offer a strong structure when working in harsh conditions.
Technical Specifications
|
Feature |
Specification |
|
Model |
SRTL3KRM1UWC |
|
Form Factor |
1U Rackmount / Tower Convertible |
|
Input Voltage |
208/230V AC |
|
Output Voltage |
208/230V AC |
|
Capacity |
3000 VA / 3000 W |
|
Battery Type |
Lithium-Ion |
|
Battery Life Expectancy |
5–10 years |
|
Outlets |
3 x IEC C13, 2 x IEC C19 |
|
Input Plug |
IEC 320 C14 |
|
Surge Energy Rating |
680 Joules |
|
LCD Display |
Multifunction, hot-swappable |
|
SmartConnect Port |
Yes |
|
SmartSlot |
Yes |
|
Operating Temperature |
0–40°C (32–104°F) |
|
Operating Humidity |
0–95% (non-condensing) |
|
Dimensions (W x D x H) |
17.3" x 12.6" x 1.7" |
|
Weight |
38.8 lbs (17.6 kg) |
|
Warranty |
5-Year Limited Warranty |
Product Information
APC SRTL3KRM1UWC is designed to offer reliable and efficient power safeguarding to essential IT equipment. It's an online design that converts to and from two concurrently banked systems, ensuring that the power received by connected devices does not contain any voltage fluctuations or disturbances. The UPS is characterized by a pure sine output wave and is therefore applicable in sensitive electronics that have high-quality power requirements.
The SRTL3KRM1UWC is powered with an ecoStruxure IT platform where cloud-based remote monitoring and management can be done using a SmartConnect Ethernet port. This functionality is mandatory for IT administrators who need to maintain continuous operation and swiftly address possible problems.
The UPS is flexible, and the rackmount 1U form factor can be easily converted to a tower shape with the supplied rail kit. This flexibility allows its use in different installation setups, data centers, and office areas.
The SRTL3KRM1UWC has a maximum of 5 external battery packs (SRTL50RMBP1U-Li) to provide extra extended operational time of the device during power failures and enable businesses to have a longer time without failure.
Its lithium-ion battery technology also provides the SRTL3KRM1UWC with efficient energy usage and less battery replacement frequency, as well as a longer life cycle than traditional lead-acid batteries.
To conclude, the APC SRTL3KRM1UWC is an efficient and multifunctional UPS solution that provides high capacity protection of the power supply, a long operating time, and a complete package of monitoring options, which is why it is an excellent solution to protect critical IT infrastructure.
