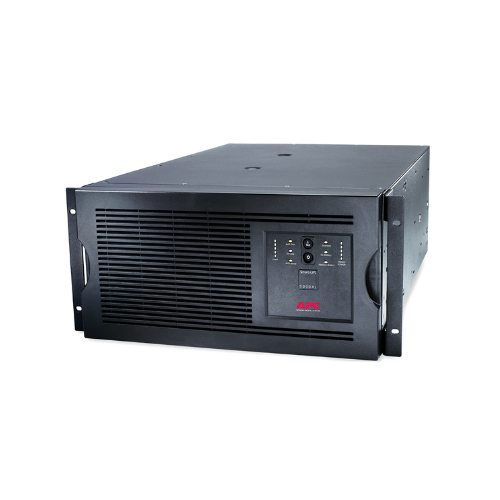

Product Overview
APC SUA5000RMT5U is a high-performance, line-interactive Uninterruptible Power Supply (UPS) that is aimed at supplying reliable, clean, and continuous power to critical IT equipment. Having a capacity of 5000VA / 4000W and a pure sine wave output, this 5U rackmount UPS protects servers, network equipment, storage equipment, and telecommunications equipment against power disturbances in the form of surges, spikes, and outages. It has a flexible design that gives it flexibility in installation, both in rack-mounted and tower setups, and, therefore, it is suitable in an enterprise setup and data centres.
Key Features and Benefits
-
Pure Sine Wave Output: Provides clean, stable power to ensure optimum operation and technology of delicate devices.
-
Automatic Voltage Regulation (AVR): Stabilizes the voltage fluctuation automatically without battery power, increases battery life, and safeguards connected gadgets.
-
SmartConnect Port: Allows cloud-based remote monitoring and management that will give real-time UPS state, diagnostics, and software updates.
-
SmartSlot Expansion: This is used to add optional network management cards to the smart slot to improve the monitoring and control of the card.
-
LCD Display: Provides an easy-to-understand real-time tracker of UPS position, battery status, and load capacity.
-
Multiple Outlets: With 2 NEMA L6-30R and 2 NEMA L6-20R outlets to provide flexibility of connection.
-
Energy-Saving Design: Saves operating expenses through designs that use minimum energy.
-
Extended Run Time Ability: Allows the use of secondary battery packs to ensure a continuous running time when there is an extended outage.
-
Extensive Warranty: A 2-year warranty and a 150,000 Connected Equipment Guarantee are included to ensure the confidence of the customers.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
5000 VA / 4000 W |
|
Topology |
Line-Interactive |
|
Output Voltage (Battery Mode) |
208V ±5% |
|
Output Waveform |
Pure Sine Wave |
|
Input Voltage |
208V ±10% |
|
Frequency |
50/60 Hz ±5 Hz |
|
Power Factor |
0.8 |
|
Battery Type |
Valve Regulated Lead-Acid (VRLA) |
|
Battery Runtime (Half Load) |
Approximately 26.7 minutes |
|
Recharge Time |
Approximately 3 hours |
|
Form Factor |
5U Rack/Tower Convertible |
|
Outlets |
2 x NEMA L6-30R, 2 x NEMA L6-20R |
|
Dimensions (WxDxH) |
17.5" x 26" x 8.75" (445 x 660 x 222 mm) |
|
Weight |
123.5 lbs (56 kg) |
|
Certifications |
UL1778, CSA C22.2 No. 107.3-05, FCC Class B |
|
Warranty |
2-year limited warranty |
|
Connected Equipment Guarantee |
$150,000 |
Product Information
The APC SUA5000RMT5U is designed to offer consistent and quality power protection to vital IT conveniences. Its line-interactive topology provides the equipment connected to it with clean and constant power without any distractions like voltage sags, surges, and electrical noise. The raw sine wave output is also of specific use to sensitive devices such as servers and networking equipment, which need consistent power in order to perform optimally.
The UPS is flexible enough to be installed in any type of environment, and the 5U rackmount design ensures that it can be used in data centers, server rooms, and telecommunications facilities. The SmartConnect port enables remote monitoring and management, enabling administrators to receive real-time updates and perform diagnostics remotely.
The SUA5000RMT5U is flexible to fit the requirements of your infrastructure, with such features as SmartSlot expansion and support of an extended battery module. Its energy-saving design will limit the costs of operation, and its all-inclusive warranty and the huge Connected Equipment Guarantee will assure those using the UPS to rely on its services to perform crucial functions.
