Product Overview

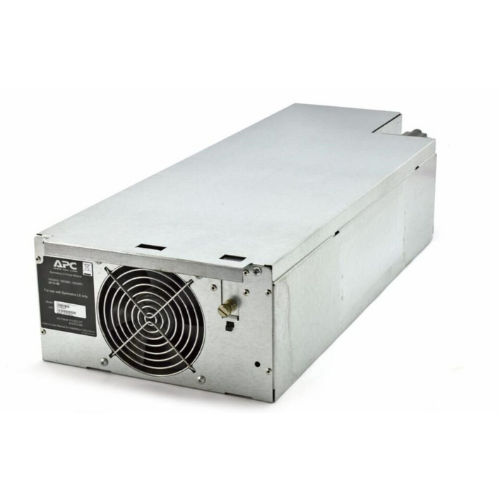

APC SYPM4KP Symmetra LX 4kVA Power Module: A high-performance modular power module to provide reliable and scalable power protection to key IT infrastructure. Its online topology is engineered to use 2-conversion, which makes sure that sensitive equipment is provided with a constant and high-quality power supply and is suitable in data centers, server rooms, and enterprise environments. This power module is designed to be easy to integrate with existing Symmetra LX systems with its configurable output voltages.
Key Features and Benefits
-
Modular Scalability: Capacity can easily be added or scaled back by adding or removing power modules with minimal downtime.
-
High Output Capacity: Delivers 4000 VA (3200 W) of power, which can supply a broad variety of critical loads.
-
Variable Output Voltage: adjustable output voltages of 100 V, 120 V, 200 V, or 208 V to suit particular equipment.
-
Double-Conversion Online Topology: Provides pure, steady power by converting incoming AC to DC, and back to AC, insulating the connected equipment against power noise.
-
High Efficiency: It works with an input frequency rate of 45-65 Hz and has low distortion of output voltage (less than 5 percent in full load), which makes it efficient in delivering power.
-
Small Form Factor: Can be mounted in a rack with a size of 5.9 (H) x 9.8 (W) x 22.2 (D), and this is space-saving.
-
Quality Warranty: Supported by a 2-year repair or replace warranty, or guaranteeing quality and support of products.
Technical Specifications
|
Feature |
Specification |
|
Model |
APC SYPM4KP |
|
Topology |
Double-Conversion Online |
|
Input Voltage |
200V AC or 208V AC |
|
Input Current |
18 A |
|
Output Voltage |
Configurable: 100V, 120V, 200V, 208V |
|
Output Power |
4000 VA (3200 W) |
|
Output Frequency |
47–63 Hz (synchronized to mains) |
|
Output Waveform |
Sine Wave |
|
Output Voltage Distortion |
<5% at full load |
|
Receptacle Type |
Hard Wire 4-wire (2PH+N+G) |
|
Dimensions (WxHxD) |
9.8" x 5.9" x 22.2" (249 mm x 150 mm x 565 mm) |
|
Weight |
33.07 lbs (15 kg) |
|
Certifications |
CSA, RoHS |
|
Warranty |
2 years (repair or replace) |
Product Information
APC SYPM4KP Symmetra LX 4kVA Power Module is developed to fit perfectly in the APC Symmetra LX UPS systems, and it offers a modular power protection that can easily be expanded to address the increasing requirements. Its online topology is double converted and provides equipment connected with a steady and clean power supply without any disturbances (surges, sags, and harmonic distortions). It has a large output capacity of 4000 VA (3200 W) and is compatible with a large number of critical loads, including servers, networking equipment, and telecommunications equipment. The small size of the module allows it to be used efficiently in the rack space, and the ability to flexibly configure the output voltage will mean that it can be used in a variety of equipment setups. Moreover, the SYPM4KP has a 2-year warranty of repair or replacement, which indicates the quality of the product offered by APC, as well as its dedication to customer satisfaction.
