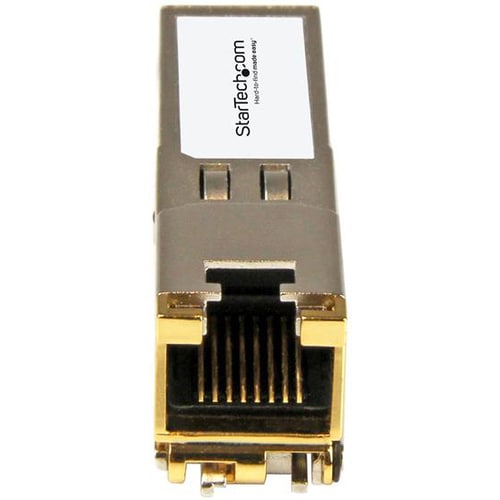

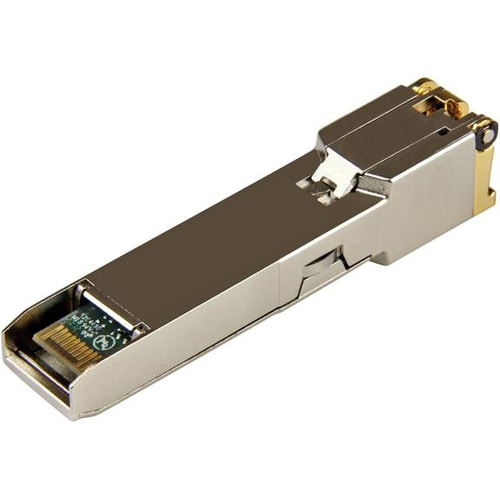

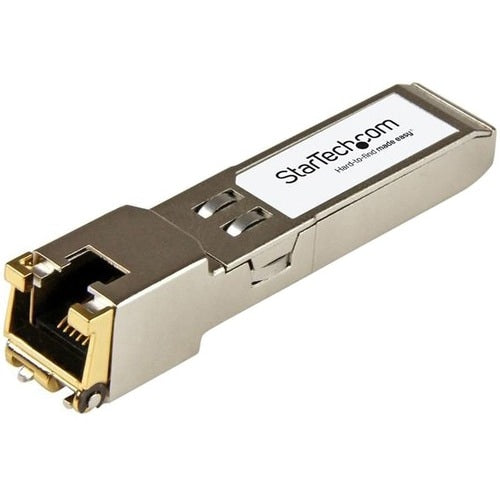

The AR-SFP-1G-T-ST is an Arista Networks compatible copper transceiver module that has been designed, programmed and tested to work with Arista Networks brand switches and routers. It delivers dependable 1 GbE connectivity over copper cable, for 10/100/1000Base-TX compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
- Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
- Type: Copper
- Connection Type: RJ-45
- Maximum Transfer Distance: 100 m (328 ft)
- MTBF: 510,469,759 hours
- Power Consumption: Low power consumption
- Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
More from the Manufacturer
More from the Manufacturer
Key Features
- 100% ARISTA NETWORKS SFP-1G-T COMPATIBLE SFP TRANSCEIVER: Designed, programmed and tested to work with compatible Arista Networks switches and routers to deliver dependable 1GbE connectivity
- TECHNICAL SPECS: 1000BASE-T
- 1Gbps
- Copper
- RJ-45 Connector
- Distances up to 100m (328ft)
Dimensions
| Height | 1.1 inches |
|---|---|
| Width | 3.5 inches |
| Length | 4.5 inches |
| Weight | 0.14 pounds |
| Product Type | SFP (mini-GBIC) |
| Form Factor | Hot-swappable |
| Network Technology | 10/100/1000Base-TX |
| Brand Name | StarTech.com |
| Country of Origin | China |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Total Number of Ports | 1 |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | SFP (mini-GBIC) |
| Manufacturer Part Number | AR-SFP-1G-T-ST |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Arista Networks SFP-1G-T Compatible SFP Transceiver Module - 10/100/1000Base-TX |
| Brand Name | StarTech.com |
| Interfaces/Ports Details | 1 x RJ-45 10/100/1000Base-TX LAN |
| Total Number of Ports | 1 |
| Network Technology | 10/100/1000Base-TX |
| Media Type Supported | Twisted Pair |
| Compatibility | MSA Conpliant |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
