The Aruba 2930F Switch Series is designed for customers creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave. With support from Aruba Central, you can quickly set up remote branch sites with little or no IT support. A powerful Aruba ProVision ASIC delivers performance and flexibility to meet the needs of today and tomorrow's network programmability and automation requirements. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access OSPF routing, Tunnel Node, robust QoS, RIP routing, and IPv6 with no software licensing required.
The Aruba 2930F Switch Series provides a convenient and costeffective access switch solution that can be quickly set up with Zero Touch Provisioning and built-in 10GbE uplinks. The robust Layer 3 feature set includes a limited lifetime warranty
FEATURES AND BENEFITS
Unified Wired and Wireless
The Aruba 2930F Switch Series provides a convenient and costeffective access switch solution that can be quickly set up with Zero Touch Provisioning and built-in 10GbE uplinks. The robust Layer 3 feature set includes a limited lifetime warranty
FEATURES AND BENEFITS
Unified Wired and Wireless
- Aruba ClearPass Policy Manager supports unified wired and wireless policies using Aruba ClearPass Policy Manager
- Switch auto-configuration automatically configures switch for different settings such as VLAN, CoS, PoE max. power, and PoE priority when an Aruba access point is detected
- User Role defines a set of switch-based policies in areas such as security, authentication, and QoS. A user role can be assigned to a group of users or devices, using switch-based local user role or download from ClearPass
- Tunnel Node provides a secure tunnel that transports network traffic on a per-port or per-user role basis to an Aruba Controller. In a per-user role Tunnel Node, users are authenticated by the ClearPass Policy Manager which directs traffic to be tunneled to an Aruba controller or switch locally
- HTTP redirect function supports HPE Intelligent Management Center (IMC) bring your own device (BYOD) solution
- Static IP visibility allows ClearPass to do accounting for clients with static IP address
- Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting
- Traffic prioritization (IEEE 802.1p) Allows real-time traffic classification into eight priority levels mapped to eight queues
- Layer 4 prioritization enables prioritization based on TCP/ UDP port numbers
- Class of Service (CoS) sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
- Rate limiting sets per-port ingress enforced maximums and per-port, per-queue minimums
- Large buffers provide graceful congestion management
- Unknown Unicast Rate Limiting throttles unicast packets with unknown destination addresses and limits flooding on the VLAN
Key Features
- Supports layer 3 switching for enhanced performance and usability
- Rack mounting enables you to organize wires & secure cables for professional installation
- Management capability allows maximum efficiency and with unrestricted control
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 48 ports
- Layer 3 Switch provides reliable, efficient connectivity to ensure maximum feasibility
Dimensions
| Height | 4.5 inches |
|---|---|
| Width | 18.5 inches |
| Length | 22 inches |
| Weight | 16 pounds |
| Product Type | Layer 3 Switch |
| Power Source | Power Supply |
| Layer Supported | 3 |
| Form Factor | Rack-mountable |
| Power Consumption | 980 W |
| Brand Name | HPE |
| Expansion Slot Type | SFP |
| Manageable | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Product Family | 2930F |
| Stack Port | No |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 48 |
| Total Number of Expansion Slots | 4.0 |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | JL557A#ABA |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |

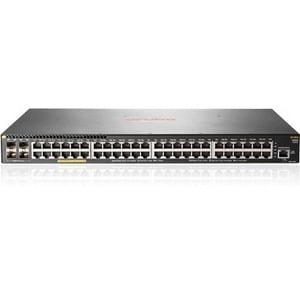

| Product Model | 2930F 48G PoE+ 4SFP |
| Product Name | 2930F 48G PoE+ 4SFP 740W Switch |
| Product Series | 2930F |
| Brand Name | HPE |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 4.0 |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | No |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| Manageable | Yes |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10GBase-X |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Layer Supported | 3 |
| Weight (Approximate) | 10.56 lb |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 12.8" |
| Compatible Rack Unit | 1U |
