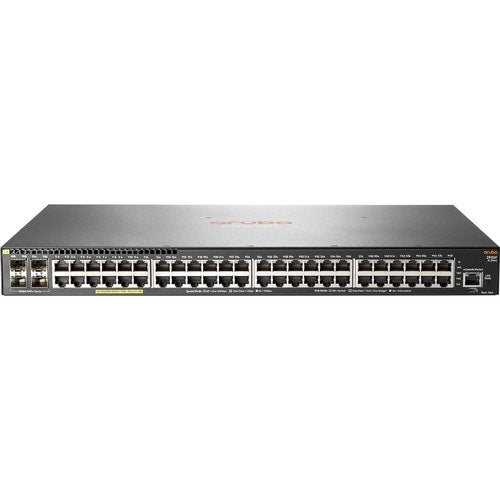

The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
What's new
- Aruba Layer 3 switch series that is easy to deploy and manage with Aruba ClearPass Policy Manager and Aruba AirWave
- Simplify with Zero Touch Provisioning and cloud-based Aruba Central support
- Scale with 4 chassis VSF stacking
- Convenient built-in 1GbE or 10GbE uplinks and up to 740W PoE+
Features
High-Performance Access Layer Switches
The Aruba 2930F Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.
Optimized for the digital workplace with unified management tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
Stacking with Virtual Switching Framework (VSF) and convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.
Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.
Performance and Power at the Edge
The Aruba 2930F Switch Series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.
Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.
Virtual Switching Framework (VSF) virtualizes up to four physical switches into one logical device for simpler, flatter, more agile networks.
Supports up to 740W of internal PoE+ power for wireless access points, cameras and phones.
Security and Quality of Service You Can Rely on
The Aruba 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.
Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.
Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.
Simplify with Integrated Wired/Wireless Management
The Aruba 2930F Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
Supports Aruba Airwave Network Management software to provide common platform for Zero Touch Provisioning management, and monitoring for wired and wireless network devices.
Key Features
- Can work as layer 3 routing for scalable network design
- Rack mounting enables you to organize wires & secure cables for professional installation
- Management capability provides control over setup and configuration of your network
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Twisted Pair media support for a dependable and productive connectivity
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 48 ports
- Layer 3 Switch provides dependable and powerful connectivity for maximum usability
Dimensions
| Height | 4.6 inches |
|---|---|
| Width | 18.7 inches |
| Length | 22.3 inches |
| Weight | 15.25 pounds |
| Product Type | Layer 3 Switch |
| Power Source | Power Supply |
| Layer Supported | 3 |
| Form Factor | Rack-mountable |
| Power Consumption | 980 W |
| Brand Name | HPE |
| Expansion Slot Type | SFP+ |
| Manageable | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Product Family | 2930F |
| Stack Port | Yes |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Total Number of Network Ports | 48 |
| Total Number of Expansion Slots | 4.0 |
| Redundant Power Supply Supported | No |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | JL558A#ABA |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | 2930F 48G PoE+ 4SFP+ |
| Product Name | 2930F 48G PoE+ 4SFP+ 740W Switch |
| Product Series | 2930F |
| Brand Name | HPE |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 4.0 |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| Manageable | Yes |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10GBase-X |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Layer Supported | 3 |
| Weight (Approximate) | 9.83 lb |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 12" |
| Redundant Power Supply Supported | No |
