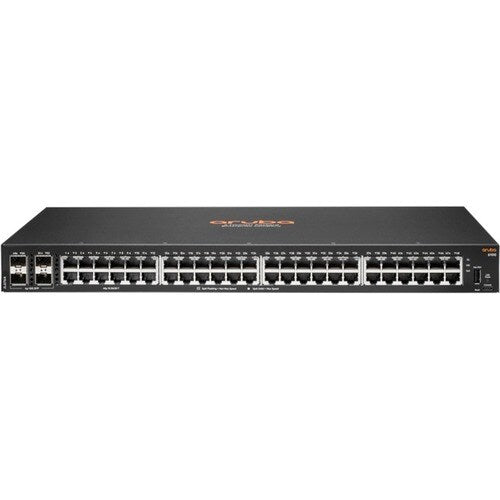

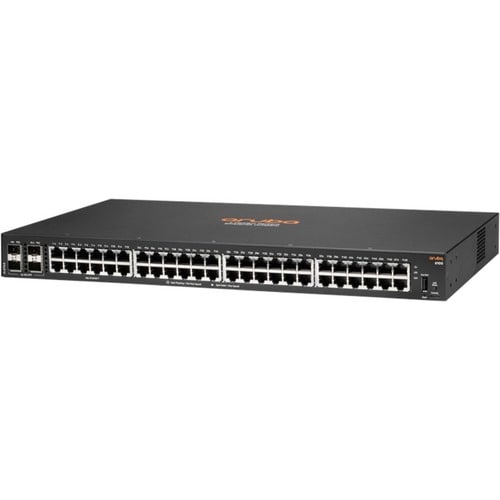

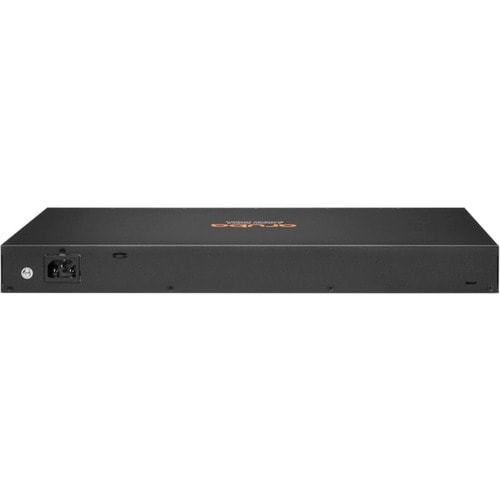

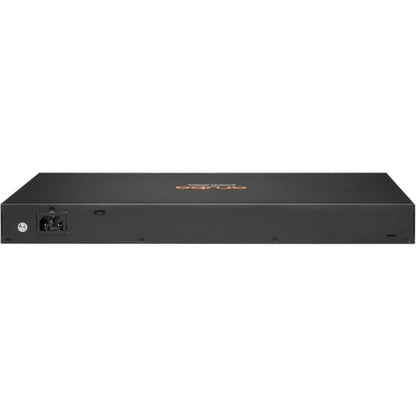

Aruba 6100 Switch Series
The Aruba CX 6100 Switch Series is modern family of entry level access switches ideal for enterprise branch offices and SMB networks. Optimized for reliable, simple and secure access, the CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile and cloud applications.
The CX 6100 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of PoE to support IoT devices such as security cameras and wireless APs, and includes acompact and fanless model ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the CX 6100 also simplifies ownership with no software licensing requirements..
Key Features
- Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS and static routing
- Convenient built-in 1/10GbE uplinks and up to 370W of Class 4 PoE for support of IoT devices
- Compact and fanless 12 port model for quiet deployment
- Automated configuration and verification with Aruba NetEdit
- Software defined ready with REST APIs
- Simplify adds, moves and changes with colorless ports
Dimensions
| Height | 5.2 inches |
|---|---|
| Width | 14.1 inches |
| Length | 23 inches |
| Weight | 9.75 pounds |
| Product Type | Ethernet Switch |
| Power Source | Power Supply |
| Layer Supported | 3 |
| Form Factor | Rack-mountable |
| Form Factor | Wall Mountable |
| Power Consumption | 44.20 W |
| Brand Name | HPE |
| Expansion Slot Type | SFP+ |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Product Family | 6100 |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 48 |
| Total Number of Expansion Slots | 4.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | JL676A#ABA |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | 6100 48G 4SFP+ |
| Product Name | 6100 48G 4SFP+ Switch |
| Product Series | 6100 |
| Brand Name | HPE |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Total Number of Expansion Slots | 4.0 |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network |
| Network Technology | 10GBase-X |
| Network Technology | 10/100/1000Base-T |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Layer Supported | 3 |
| Weight (Approximate) | 7.54 lb |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 9.7" |
| Compatible Rack Unit | 1U |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
