Built from the ground up with a combination of cutting-edge hardware, software and analytics and automation tools, the stackable 6300 switches are part of the Aruba CX switching portfolio, designed for today's enterprise campus, branch and data center networks. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the 6300 switches provide industry leading monitoring and troubleshooting capabilities for the access layer.
A powerful Aruba Gen7 ASIC architecture delivers performance and robust feature support with flexible programmability for tomorrow's applications. The Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in wirespeed 1/10/25/50GbE uplinks and supports high density IEEE 802.3bt high power PoE. HPE Smart Rate multi-gigabit Ethernet paves the way for high speed access points and IoT devices by delivering fast connectivity and high power PoE using existing cabling. Modular models offer redundancy and PoE customization. Modular power supplies and field replaceable fans are also supported.
Aruba Dynamic Segmentation extends Aruba's foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.
Key Features
- Stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS
- High performance 880 Gbps system switching capacity, 660 MPPS of system throughput and up to 200 Gbps stacking bandwidth
- Compact 1U switches with full density HPE Smart Rate (1/2.5/5GbE) multi-gigabit, 60W PoE and SFP+ models
- Built-in high speed 10GbE/25GbE/50GbE uplinks
- Intelligent monitoring, visibility, and remediation with Aruba Network Analytics Engine
- One touch deployment with the Aruba CX Mobile App
- Aruba NetEdit support for automated configuration and verification
- Aruba Dynamic Segmentation enables secure and simple access for users and IoT
Dimensions
Height | 7.3 inches |
---|---|
Width | 19.3 inches |
Length | 23.3 inches |
Weight | 15.9 pounds |
Product Type | Ethernet Switch |
Power Source | Power Supply |
Layer Supported | 3 |
Form Factor | Rack-mountable |
Power Consumption | 67 W |
Brand Name | HPE |
Expansion Slot Type | SFP |
Manageable | Yes |
Ethernet Technology | 50 Gigabit Ethernet |
Ethernet Technology | Gigabit Ethernet |
Product Family | CX 6300 |
Stack Port | Yes |
Media Type Supported | Twisted Pair |
Media Type Supported | Optical Fiber |
Total Number of Network Ports | 24 |
Total Number of Expansion Slots | 4.0 |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Product Type | Ethernet Switch |
Manufacturer Part Number | JL666A#ABA |
Manufacturer Website Address | http://www.hpe.com |
Manufacturer | Hewlett Packard Enterprise |
Product Model | 6300F |

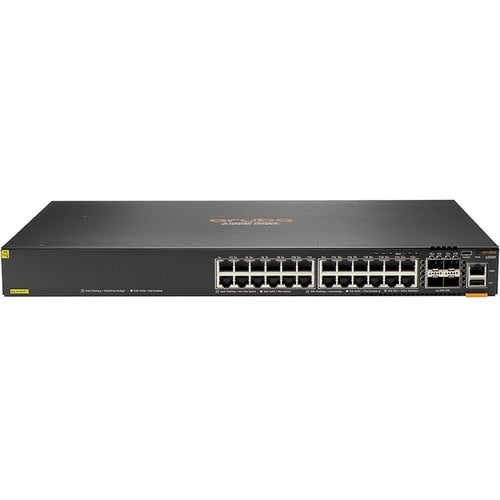

Product Name | 6300F 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch |
Product Series | CX 6300 |
Brand Name | HPE |
Expansion Slot Type | SFP |
Number of SFP Slots | 4 |
Total Number of Expansion Slots | 4.0 |
Modular | Yes |
Uplink Port | Yes |
Stack Port | Yes |
Total Number of Network Ports | 24 |
Port/Expansion Slot Details | 4 x 50 Gigabit Ethernet Uplink |
Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE |
Manageable | Yes |
Network Technology | 50GBase-X |
Network Technology | 10/100/1000Base-T |
Media Type Supported | Twisted Pair |
Media Type Supported | Optical Fiber |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Layer Supported | 3 |
Weight (Approximate) | 10.91 lb |
Height | 1.7" |
Width | 17.4" |
Depth | 12.9" |
Compatible Rack Unit | 1U |
