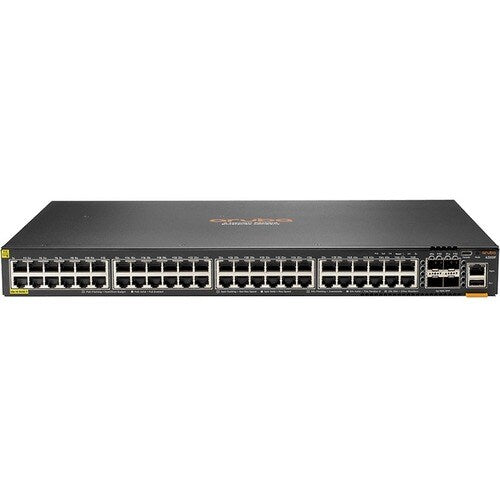

Hpe JL665A#ABA Aruba 6300f 48g Cl4 Poe 4sfp56 Sw Us Pl-wb

Hpe JL665A#ABA Aruba 6300f 48g Cl4 Poe 4sfp56 Sw Us Pl-wb

Availability: In Stock

Vendor: HPE

SKU:JL665A#ABA

Regular price $9,912.33 USD
Regular price $9,912.33 USD Sale price $9,912.33 USD
Sale Sold out
Shipping is Free.
Get a Quote

Shipping information

Order processing time for in-stock items is 2-3 business days and shipping time is 5-8 business days, depending upon courier & location.

View full details
The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of stackable switches ideal for enterprise network access, aggregation and core. Created for game- changing operational efficiency with built-in security and resiliency, the 6300 switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications.

Built from the ground up with a combination of cutting-edge hardware, software and analytics and automation tools, the stackable 6300 switches are part of the Aruba CX switching portfolio, designed for today's enterprise campus, branch and data center networks. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the 6300 switches provide industry leading monitoring and troubleshooting capabilities for the access layer.

A powerful Aruba Gen7 ASIC architecture delivers performance and robust feature support with flexible programmability for tomorrow's applications. The Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in wirespeed 1/10/25/50GbE uplinks and supports high density IEEE 802.3bt high power PoE. HPE Smart Rate multi-gigabit Ethernet paves the way for high speed access points and IoT devices by delivering fast connectivity and high power PoE using existing cabling. Modular models offer redundancy and PoE customization. Modular power supplies and field replaceable fans are also supported.

Aruba Dynamic Segmentation extends Aruba's foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.



Key Features

  • Stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS
  • High performance 880 Gbps system switching capacity, 660 MPPS of system throughput and up to 200 Gbps stacking bandwidth
  • Compact 1U switches with full density HPE Smart Rate (1/2.5/5GbE) multi-gigabit, 60W PoE and SFP+ models
  • Built-in high speed 10GbE/25GbE/50GbE uplinks
  • Intelligent monitoring, visibility, and remediation with Aruba Network Analytics Engine
  • One touch deployment with the Aruba CX Mobile App
  • Aruba NetEdit support for automated configuration and verification
  • Aruba Dynamic Segmentation enables secure and simple access for users and IoT


Dimensions

Height 7.5 inches
Width 20.1 inches
Length 23.6 inches
Weight 16.2 pounds
Product Type Ethernet Switch
Power Source Power Supply
Layer Supported 3
Form Factor Rack-mountable
Power Consumption 86 W
Brand Name HPE
Expansion Slot Type SFP
Manageable Yes
Ethernet Technology 50 Gigabit Ethernet
Ethernet Technology Gigabit Ethernet
Product Family CX 6300
Stack Port Yes
Media Type Supported Twisted Pair
Media Type Supported Optical Fiber
Total Number of Network Ports 48
Total Number of Expansion Slots 4.0
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Product Type Ethernet Switch
Manufacturer Part Number JL665A#ABA
Manufacturer Website Address http://www.hpe.com
Manufacturer Hewlett Packard Enterprise
Product Model 6300F
Product Name 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch
Product Series CX 6300
Brand Name HPE
Expansion Slot Type SFP
Number of SFP Slots 4
Total Number of Expansion Slots 4.0
Modular Yes
Uplink Port Yes
Stack Port Yes
Total Number of Network Ports 48
Port/Expansion Slot Details 48 x Gigabit Ethernet PoE+
Port/Expansion Slot Details 4 x 50 Gigabit Ethernet Uplink
Manageable Yes
Network Technology 50GBase-X
Network Technology 10/100/1000Base-T
Media Type Supported Twisted Pair
Media Type Supported Optical Fiber
Package Contents
  • 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch
  • 2-post Rack Kit
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Layer Supported 3
Weight (Approximate) 11.24 lb
Height 1.7"
Width 17.4"
Depth 15.2"
Compatible Rack Unit 1U
