KEY FEATURES
- Ideal for remote office/branch office (ROBO) use and everyday business environments
- Powered by eight-core Intel Xeon E-2300-series processor with support for up to 95 W TDP

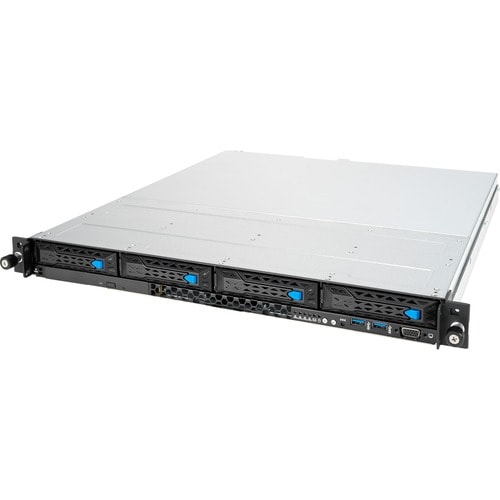

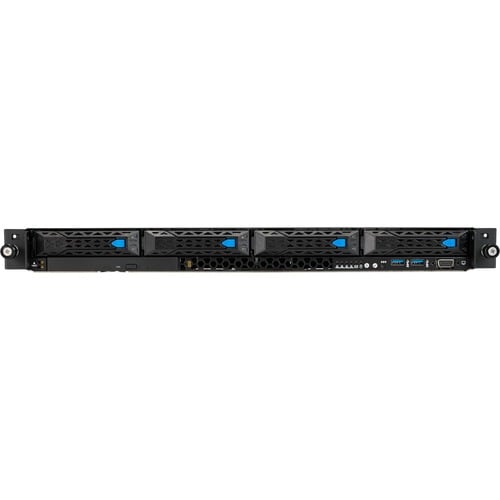

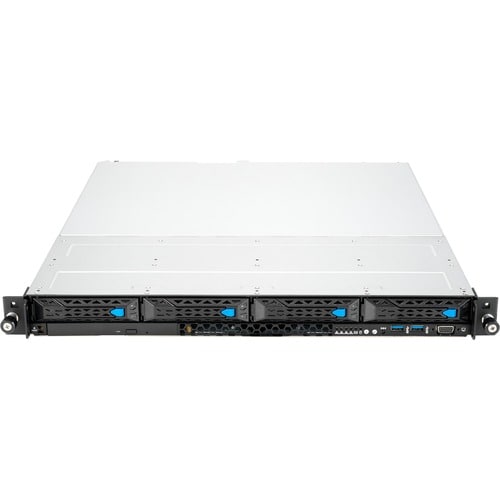

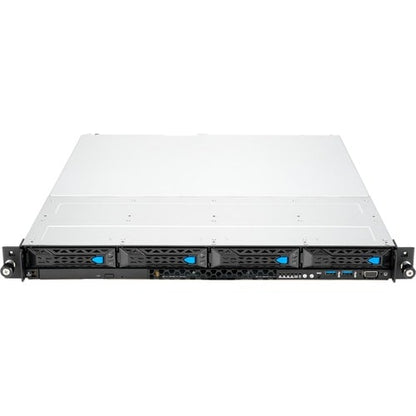

- Four 3.5" or 2.5" hot-swap drives on front panel and one M.2 to enable extensive storage
- Up to two PCIe® 4.0 slots and one PCIe® 3.0 proprietary slot to drive higher bandwidth
- High power efficiency with redundant 450 W 80 PLUS Platinum power supplies
- Dual Intel I210AT Gigabit Ethernet with teaming support
- Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS RS300-E11 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking - enabling flexible scalability for demanding or increasing workloads.
Redundant Platinum PSU support

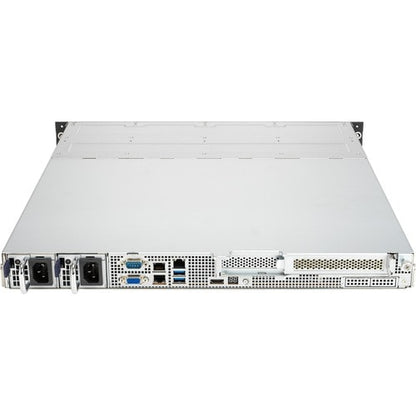

RS300-E11-RS4 supports redundant 450W 80 PLUS Platinum power supplies, which are 96%+ efficient, directly reducing operating costs and capital expenses. The 1+1 power-supply design allows the server to keep working even if one power supply requires maintenance, enabling uninterrupted operation.
Enhanced security
ASUS RS300-E11 servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.
In addition, all RS300-E11 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
High-resolution HDMI monitoring
RS300-E11 server features a HDMI 1.4 port directed from CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring.
Key Features
- With Intel Pentium processor, experience splendid PC performance; enjoy songs, movies and get your work completed concurrently
- With Serial ATA/600 interface get superb reliability and high-speed data transfer
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- Can connect up to 4 USB peripherals
Dimensions
| Height | 7.3 inches |
|---|---|
| Width | 23.5 inches |
| Length | 32.8 inches |
| Weight | 33.8 pounds |
| Product Type | Barebone System |
| Maximum Memory Supported | 128 GB |
| Limited Warranty | 1 Year |
| Chipset | Intel C252 |
| Form Factor | Rack-mountable |
| Processor Supported | Pentium |
| Processor Supported | Xeon |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket LGA-1200 |
| Rack Height | 1U |
| Brand Name | Asus |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Number of External 5.25" Bays | 1 |
| Graphics Controller Model | AST2600 |
| Number of SATA Interfaces | 6 |
| Graphics Memory Capacity | 64 MB |
| Number of Processors Supported | 1 |
| Ethernet Technology | Gigabit Ethernet |
| Number of 3.5" Bays | 4 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Maximum Power Supply Wattage | 450 W |
| Product Family | RS300-E11-RS4 |
| Total Number of USB Ports | 4 |
| Total Number of Expansion Slots | 3 |
| Total Number of Memory Slots | 4 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Chipset Manufacturer | Intel |
| Chipset Model | C252 |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Product Type | Barebone System |
| Manufacturer Part Number | RS300-E11-WOCPU011Z |
| Manufacturer Website Address | http://usa.asus.com |
| Manufacturer | ASUS Computer International |
| Product Name | RS300-E11-RS4 Barebone System |
| Product Series | RS300-E11-RS4 |
| Brand Name | Asus |
| Number of External 5.25" Bays | 1 |
| Number of Total Expansion Bays | 5 |
| Number of 3.5" Bays | 4 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of Expansion Slots | 3 |
| Number of SATA Interfaces | 6 |
| Total Number of USB Ports | 4 |
| Number of VGA Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| Maximum Memory | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 4 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Weight (Approximate) | 22.71 lb |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 19.6" |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 450 W |
| Processor Supported | Xeon |
| Processor Supported | Pentium |
| Processor Socket | Socket LGA-1200 |
| 64-bit Processing | Yes |
| Number of Processors Supported | 1 |
| Processor Supported | Xeon |
| Processor Supported | Pentium |
| Processor Socket | Socket LGA-1200 |
| 64-bit Processing | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | C252 |
| Number of Processors Supported | 1 |
| Limited Warranty | 1 Year |
