Easily Upgrade to Business WiFi 6 Network

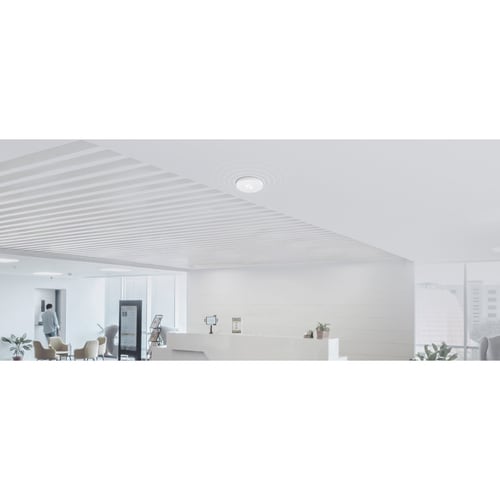

AX1800 Ceiling Mount WiFi 6 Access Point
AX1800 WiFi 6 Speed
574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz
Seamless Roaming
Uninterrupted streaming when moving between APs

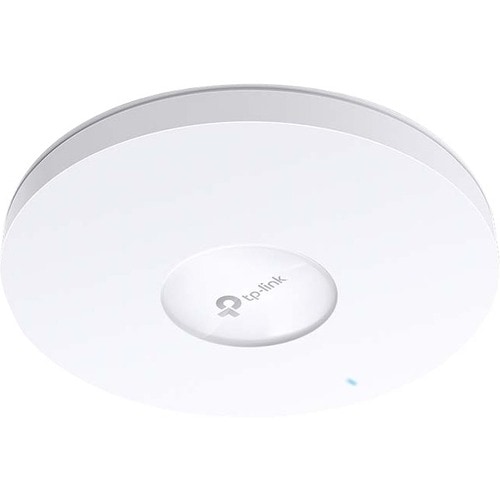

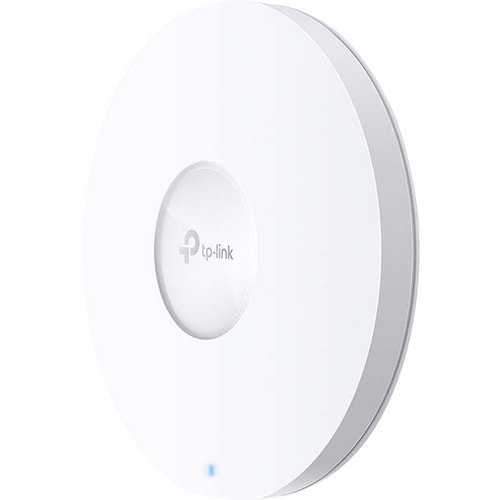

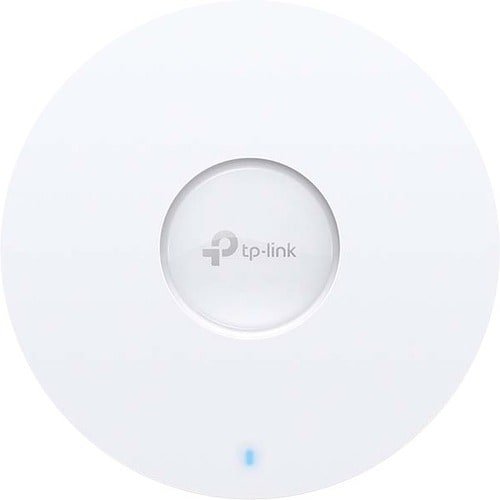

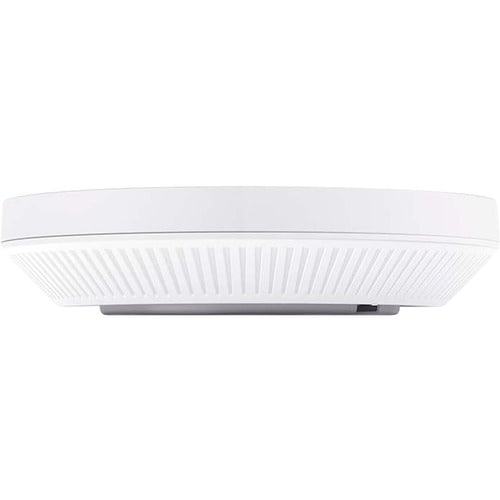

Ultra-Slim Design
Φ160 mm × 33.6 mm elegant design brings more agility
High-Efficiency WiFi 6
More connected devices can enjoy faster speeds
Omada Mesh Technology
More flexible and convenient wireless deployment

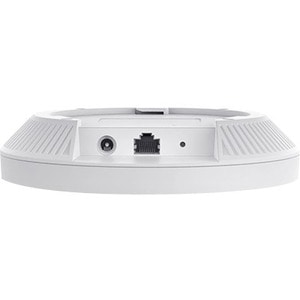

Gigabit Wired Performance
Boosts overall throughput with a Gigabit Ethernet port
Centralized Cloud Management
Manage the whole network locally or from the cloud

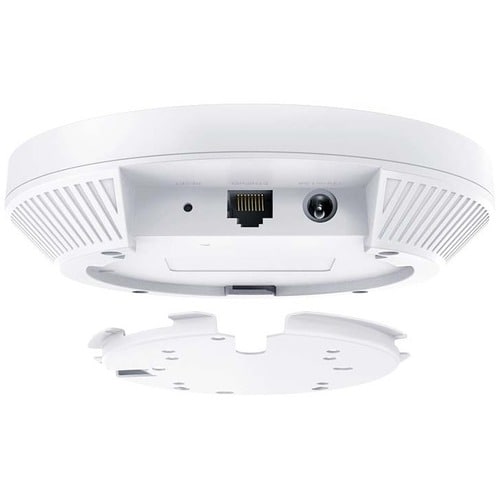

PoE+ Powered
Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations
Optimized WiFi Performance
With Portal Authentication, MU-MIMO, Band Steering, Airtime Fairness, and Load Balance
Upgrade to WiFi 6, Power up Your Business
WiFi 6 brings faster speeds, less lag, and higher capacity.
Superior WiFi 6 Speeds
Upgrade to WiFi 6 with speeds up to 1775 Mbps brings 50% faster speeds than WiFi 5. Every application feels more fluid with drastically improved Wi-Fi speeds.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
- Hardware, Software, or Cloud-Based Controllers
- Centralized Cloud Management
- Intelligent Monitoring
- Zero-Touch Provisioning (ZTP)
Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.
Easy Deployment & Higher Performance by Omada Mesh | Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Key Features
- Ultra-Fast True Wi-Fi 6 Speeds: Designed with the latest wireless Wi-Fi 6 technology featuring 1024-QAM and Long OFDM Symbol, the EAP613 boosts dual-band Wi-Fi speeds up to 1800 Mbps. With 4 Spatial streams, multi-user throughput is incredibly increased to drive more applications. (Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.)

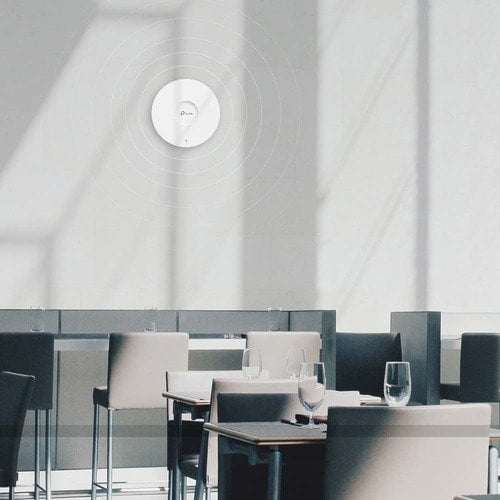

- Ultra-Slim Design: Compact design ensures simple installation while saving space. The elegant appearance makes EAP613 a perfect blend into any modern office, hotel, classroom, or café.
- Integrated into Omada SDN: Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches & gateways with multiple control options offered - Omada Hardware controller, Software Controller or Cloud-based controller*(Contact TP-Link for Cloud-Based Controller Details). Standalone mode also supported.
- Cloud Access & Omada Compatibility: Remote Cloud access and Omada app enables centralized cloud management of the whole network from different sites-all controlled from a single interface anywhere, anytime. For devices that are compatible with SDN firmware, please visit 'From the manufacturer - Q&A' section or TP-Link website.
- Advanced Wireless Tech: Supports Mesh WiFi, Seamless Roaming*(Omada Mesh & Seamless Roaming require the use of Omada SDN controllers), Band Steering, Load Balancing, Airtime Fairness and Beamforming technologies.

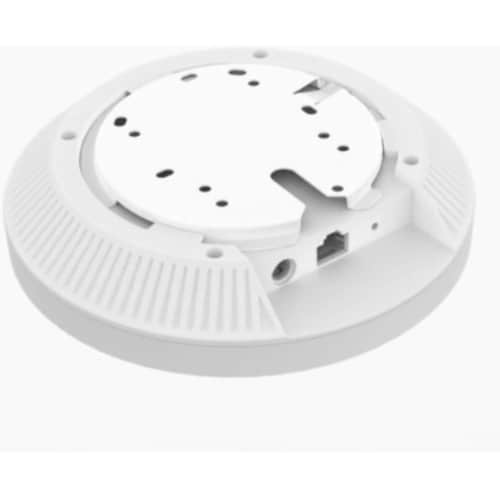

- PoE+ for Easy Installation: EAP613 supports 802.3at PoE+, 48V/0.5A Passive PoE (Suggested TP-Link Model: TL-PoE4824G) and 12V/1.5A DC power supply for flexible deployment and convenient installation. (DC power adapter is NOT included in package.)
Dimensions
| Height | 2.6 inches |
|---|---|
| Width | 9 inches |
| Length | 9.75 inches |
| Weight | 1.16 pounds |
| Product Type | Wireless Access Point |
| Network Band | Dual Band |
| Form Factor | Junction Box Mount |
| Form Factor | Compact |
| Form Factor | Ceiling Mountable |
| Form Factor | Wall Mountable |
| Wireless Transmission Speed | 1.73 Gbit/s |
| Brand Name | TP-Link |
| Country of Origin | Vietnam |
| Frequency Band | 5 GHz |
| Frequency Band | 2.40 MHz |
| Antenna Form Factor | Internal |
| Wireless LAN Standard | IEEE 802.11ax |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | Wireless Access Point |
| Manufacturer Part Number | EAP613 |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Model | EAP613 |
| Product Name | AX1800 Ceiling Mount WiFi 6 Access Point |
| Brand Name | TP-Link |
| Number of Network (RJ-45) Ports | 1 |
| Additional Information | Legal Disclaimer: Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions. |
| Package Contents |
|
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Height | 1.3" |
| Width | 6.3" |
| Depth | 6.3" |
| Antenna Form Factor | Internal |
| Network Band | Dual Band |
| Wireless Transmission Speed | 1.73 Gbit/s |
| Frequency Band | 5 GHz |
| Frequency Band | 2.40 MHz |
| Wireless LAN Standard | IEEE 802.11ax |
| Encryption Standard | WPA3-ENT |
| Encryption Standard | WPA-PSK |
| Encryption Standard | WPA3-PSK |
| Encryption Standard | WPA-ENT |
| Encryption Standard | WPA2-PSK |
| Encryption Standard | WPA2-ENT |
| Data Encryption | Yes |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
