Product Overview

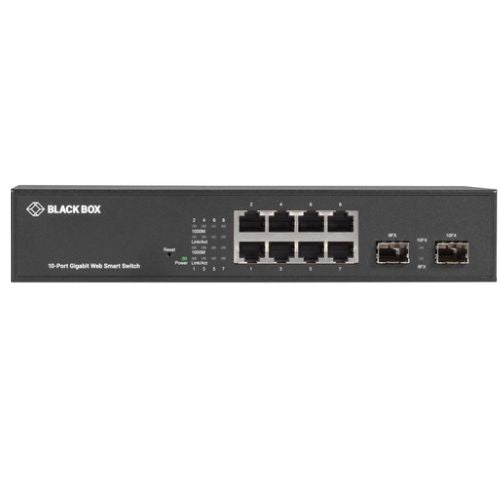

The Black Box LGB710A is a 10-port web smart Gigabit switch that is suited in small and medium sized business network. It offers two 100/1000 Mbps SFP and eight 10/100/1000 Mbps copper ports with the option of providing flexibility during connection both to copper and fiber devices. The switch offers Layer 2 administration with easy to use web based interface, which enables users to easily set up the VLANs, QoS, link aggregation as well as port monitoring. Due to its energy efficiency that is achieved through the absence of fans, it is suitable in offices and industries as it operates quietly and is reliable in the long run.
Key Features
-
10-Port 8 RJ-45 Gigabit port and 2 SFP uplink ports are included to provide flexible connectivity.
-
Web Smart Management: Provides SNMP, link aggregation, QoS and support of VLAN, which allows ease of network control.
-
Fanless Design: this offers zero noise operation plus less maintenance.
-
Great Switching Capacity: Provides up to 20 Gbps switching capacity in order to support a seamless transfer of data.
-
Energy Efficient: IEEE Protocol Energy efficient Supports IEEE 802.3az Energy Efficient Ethernet to save energy.
-
Small & Sturdy Construction: Rack or desktop construction that can therefore fit into many environments.
-
Reliable Performance: Best suited in linking workstations, access points and servers in small networks.
Technical Specifications
|
Feature |
Specification |
|
Brand |
Black Box |
|
Model |
LGB710A |
|
Product Type |
Web Smart Gigabit Switch |
|
Ports |
8 × 10/100/1000 RJ-45, 2 × 100/1000 SFP |
|
Switching Capacity |
20 Gbps |
|
Forwarding Rate |
14.88 Mpps per Gigabit port |
|
MAC Address Table |
8K entries |
|
Buffer Memory |
512 KB |
|
Management |
Web GUI, VLAN, QoS, SNMP v1/v2c |
|
Power Input |
100–240V AC, 50/60 Hz |
|
Power Consumption |
≤ 15 W |
|
Design |
Fanless, Desktop or Rack-mountable |
|
Dimensions (H × W × D) |
1.7" × 9.0" × 4.9" (44 × 230 × 124 mm) |
|
Operating Temperature |
0°C to 45°C (32°F to 113°F) |
|
Warranty |
1 Year (Standard Manufacturer Warranty) |
