Product Overview

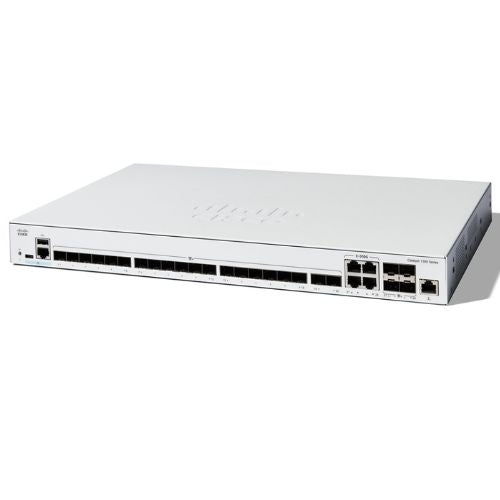

Cisco C1300-24XS Catalyst 1000 Series Switch is a switch with an enterprise-level networking performance in a rack mountable form. Constructed to suit small and medium-sized companies and branch offices, the Layer 3 managed switch offers 24 SFP+ 10 Gigafinally controlled Ethernet ports, which allows the high transfer speed of data and smooth scalability in a demanding network setting.
The C1300-24XS runs on a strong ARM processor, 1GB of RAM, and 512MB of flash memory, which guarantees seamless operation and fast processing of data. It facilitates high switching capability like VLAN segmentation, Quality of service (QoS) and effective layer three routing, which makes it the right option in effective traffic management and secure connectivity.
The switch comes with energy-efficient components, low noise levels, and compatibility with power systems around the world (100 VAC, 50 VAC, 60 VAC, etc.), which is configured to suit a modern IT infrastructure. With a 1U rack-mountable form factor, it is easy to deploy in either a data center or an enterprise network rack, and wide-ranging management choices, including web GUI, CLI, or SNMP, give it flexibility and control.
The Cisco C1300-24XS supports reliable performance, security and scalability as needed by the changing business environment whether deployed in high-speed backbone connections, aggregation, or access-layer applications.
Key Features
-
Fast Interconnect: 24 SFP+ ports, with 10 Gbps per port, of data throughput.
-
High-level Layer 3 Switching: Facilities intelligent traffic routing protocols.
-
Efficient Processing: ARM CPU, 1GB RAM and 512MB flash memory.
-
Enterprise Reliability: Made to operate continuously with the time-tested build quality of Cisco.
-
Energy Saving: Consumption of low power without affecting the performance of a network.
-
Easy to configure and monitor: Flexible Management: Web GUI, CLI and SNMP.
-
Safe Connection: VLANs, Access Control Lists (ACLs), and port security increase protection of data.
-
Rack-Mountable Design: Smaller design of 1U mountable chassis comes in standard racks.
-
Power Compatibility: 100-240 V AC, 50-60 Hz input to operate in any area of the world.
Technical Specifications
|
Feature |
Specification |
|
Brand |
Cisco |
|
Model |
C1300-24XS |
|
Series |
Catalyst 1000 Series |
|
Product Type |
Managed Ethernet Switch |
|
Total Ports |
24 x 10G SFP+ |
|
Data Transfer Rate |
10 Gbps per port |
|
Switching Capacity |
Up to 480 Gbps |
|
Processor Type |
ARM |
|
RAM |
1 GB |
|
Flash Memory |
512 MB |
|
Network Layer Support |
Layer 2 / Layer 3 |
|
Management Options |
Web GUI, CLI, SNMP, RMON |
|
Network Standards |
IEEE 802.3, 802.3u, 802.3z, 802.3ae |
|
Power Input |
100–240V AC, 50–60 Hz |
|
Mount Type |
Rack-Mountable (1U) |
|
Cooling |
Low-noise or fanless design (model-dependent) |
|
Operating Temperature |
0°C to 45°C (32°F to 113°F) |
|
Security Features |
VLANs, Port Security, ACLs, 802.1X Authentication |
|
QoS (Quality of Service) |
Traffic prioritization and bandwidth control |
|
LED Indicators |
System, Link/Activity, Speed |
|
Form Factor |
1U Rack-Mountable |
|
Warranty |
Limited Lifetime Hardware Warranty |
