Product Overview

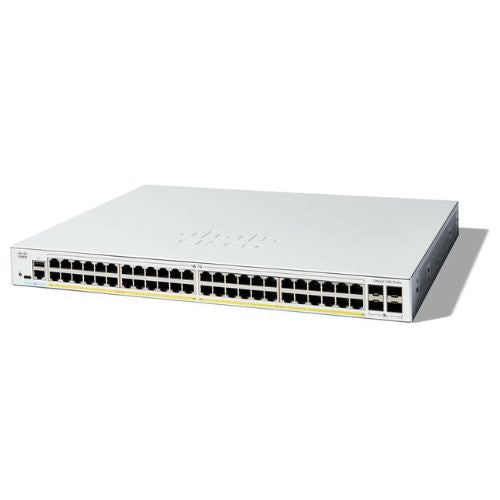

Cisco C1300-48FP-4X Catalyst 1300 series switch is a high-performance, next-generation and layer 3 managed switch aimed at providing small and medium-sized enterprises with high-performance connection, security, and power delivery. This switch is suitable as it has 48 Gigabit Ethernet ports with Full PoE+ (up to 740W) and 4 x 10G SFP+ uplink ports that are powerful to support the latest networks with IP phones, wireless access points, and IoT devices.
The C1300-48FP-4X is designed to be easy to use and reliable, and has the capabilities of the enterprise, like high-level security, QoS, VLAN segmentation, and the ability to operate with little energy. The user-friendly Cisco DNA Center and Web UI simplify configuration, monitoring and troubleshooting. This switch is perfect for expanding organizations, as it is an intelligent switch with scalable power and speed, which provides availability and high performance.
Key Features
-
48 Full PoE+ Ports: Support up to 30W/port, ideal for powering VoIP phones, cameras and powering access points.
-
High-Speed Uplinks: The 4 x 10G SFP+ uplinks provide it with a strong and scalable network.
-
Layer 3 Functionality: This is routing that would allow dynamic IP management and optimized traffic flow.
-
Better Security: 802.1X, MACsec, ACLs, and high-level threat protection are provided to protect the assets of the network.
-
Smart Power Management: Provides the maximum PoE budget (up to 740W) to allow efficient use of power.
-
Simple Operations: Can be configured through Cisco DNA Center, Web UI, or CLI.
-
High Reliability: Provides 24/7 operation and a redundant power solution, as well as intelligent fan cooling.
-
Flexible Deployment: Best used with enterprise edge and campus, as well as branch network setups.
-
Silent Operation: Energy-efficient design reduces heat and noise, which is perfect in an office setup.
-
Future Ready Performance: 10G uplinks will be scalable to future applications and workloads.
Technical Specifications
|
Feature |
Specification |
|
Brand |
Cisco |
|
Model |
C1300-48FP-4X |
|
Series |
Catalyst 1300 Series |
|
Product Type |
Managed Layer 3 Network Switch |
|
Total Ethernet Ports |
48 x 10/100/1000Base-T Gigabit Ethernet |
|
Uplink Ports |
4 x 10G SFP+ |
|
PoE Support |
Full PoE+ (up to 30W per port) |
|
PoE Power Budget |
740W |
|
Switching Capacity |
176 Gbps |
|
Forwarding Rate |
130.9 Mpps |
|
MAC Address Table |
32,000 entries |
|
VLAN Support |
Up to 4,000 VLANs |
|
Layer Support |
Layer 2 and Layer 3 |
|
Security Features |
802.1X, ACLs, MACsec, DHCP Snooping |
|
Management Interfaces |
Cisco DNA Center, Web UI, CLI, SNMP |
|
Energy Efficiency |
IEEE 802.3az (Energy Efficient Ethernet) |
|
Dimensions (H x W x D) |
1.73 x 17.5 x 14.4 in |
|
Weight |
13.5 lbs (approx.) |
|
Mounting Type |
Rack-Mountable |
|
Warranty |
Limited Lifetime Hardware Warranty |
|
Part Number |
C1300-48FP-4X |
