Product Overview

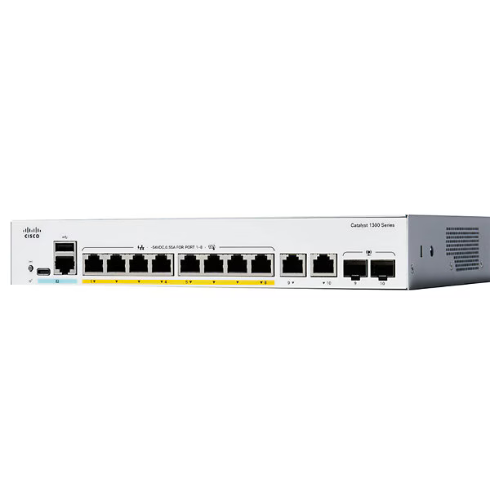

The Cisco C1300-8P-E-2G Catalyst 1000 Series Switch is the perfect choice for small to medium-sized businesses and branch offices needing reliable, high-performance networking. With 8 Gigabit Ethernet Ports that can deliver power over Ethernet and two combo 1G uplinks, you can be sure to get your data and devices transferred smoothly and efficiently. Built to last and run as quietly as a mouse, this switch is perfect for any busy office or retail setting.
It's built-in advanced Layer 2 management gives you all the security and energy-saving tools you need to keep your network running smoothly. Plus, it's got plenty of memory to handle all the demands of a modern network, with features like VLAN segmentation, QoS prioritization, and network monitoring to give you complete control.
The Cisco C1300-8P-E-2G is super compact & rack-mountable. When it comes to running this little switch, you won't even notice it's there - it's got fanless operation, so you can grab a coffee without being woken up by a humming noise. Under the hood, it's got 1GB RAM and 512MB of flash memory, which is no-nonsense for all the heavy networking it does.
Key Features
-
8 Gigabit Ethernet Ports with PoE: You can power IP phones, access points, and cameras all through Ethernet cables - no need for extra power cables.
-
2 Combo Uplink Ports: You've got flexibility with these - copper or fiber - you choose.
-
Layer 2 Managed Switch: If you're in business and need to have a bit of control over your network, this is the one for you.
-
Enhanced Security: 802.1X auth, ACLs, and network protection tools all keep your network safe and sound.
-
Plenty of Memory: With 1GB RAM and 512MB of flash memory, this switch is built for the demands of modern networking.
-
Eco-Friendly: It's been designed to use as little power as possible and to run nice and quiet.
-
Sticks it in the Rack: Nicely compact, you can stash this switch in any networking cabinet or rack.
-
No Noise Pollution: Its fanless design means this switch runs so quietly you almost forget it's even on.
-
Manage it with Ease: Do it all with Cisco IOS and an intuitive web interface.
Technical Specifications
|
Feature |
Specification |
|
Brand |
Cisco |
|
Model |
C1300-8P-E-2G |
|
Series |
Catalyst 1000 Series |
|
Port Configuration |
8 × Gigabit Ethernet (PoE), 2 × 1G Combo Uplink Ports |
|
PoE Power Budget |
Up to 120W |
|
Memory (RAM) |
1 GB |
|
Flash Memory |
512 MB |
|
Switching Capacity |
20 Gbps |
|
Forwarding Rate |
14.88 Mpps |
|
Layer Support |
Layer 2 |
|
Management |
Web UI, CLI, SNMP, Cisco Network Assistant |
|
Security |
802.1X, ACLs, DHCP Snooping, Port Security |
|
QoS Support |
Yes |
|
Energy Efficiency |
Energy Efficient Ethernet (EEE) |
|
Mounting Type |
Rack-Mountable |
|
Fan Configuration |
Fanless |
|
Power Supply |
Internal |
|
Input Voltage |
100–240V AC |
|
Operating Temperature |
0°C to 45°C |
|
Dimensions (W × D × H) |
10.6 × 9.4 × 1.7 inches |
|
Weight |
4.6 lbs (2.1 kg) |
|
Color |
Metallic Gray |
|
Warranty |
Limited Lifetime Warranty |
