Product Description

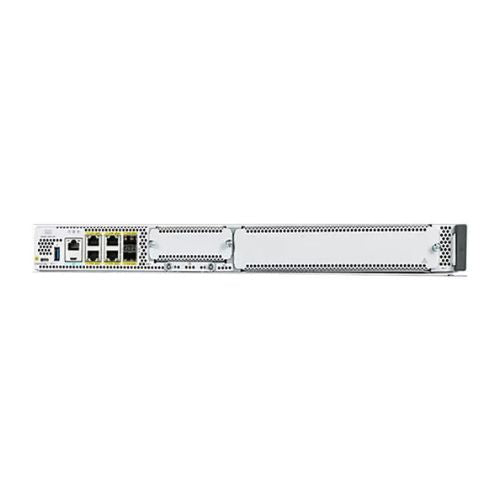

Cisco C8300-1N1S-6T Catalyst 8300 Series Router is a next-generation branch routing platform, which is destined to provide high performance, security, and scalability to the current enterprise networks. Constructed as SD-WAN and hybrid cloud-ready, the router features state-of-the-art networking functionality and a high level of security and application optimisation, which is why it can be implemented in any distributed organisation and digital transformation project.
The C8300-1N1S-6T has a throughput of up to 16 Gbps and is based on Cisco UADP (Unified Access Data Plane) architecture to support workloads, cloud-based services, and real-time applications with high reliability. The router has 6 Gigabit Ethernet ports, which can be used to support high-speed LAN/WAN connectivity, and also has an inbuilt management port to facilitate easy configuration and monitoring.
The router has flexibility in its modular interface with NIM (Network Interface Modules) and SM (Service Modules), which allows scalability in the future as well as tailored connectivity. It will provide safe data transmission over enterprise networks, which is designed with hardware-accelerated encryption and advanced threat defence capabilities of Cisco.
Catalyst 8300 Series also provides Cisco SD-WAN that offers centralised control, application visibility and intelligent path choice to use in optimising performance and reliability. The C8300-1N1S-6T is a highly available server that provides redundant power capabilities, higher operating temperature, and a smaller enclosure that can be used in branch and edge applications.
Key Features
-
High-Performance Routing: Provides up to 16 Gbps throughput of up-to-date branch applications.
-
6 Gigafilters: Supplies flexibility and high-speed LAN/WAN connections.
-
Integrated Management Port: Makes administration, monitoring and configuration easy.
-
SD-WAN Ready: Provides centralised routing and application-aware routing.
-
Modular Design: Enables NIMs and SMs to expand and customise.
-
Improved Security: Hardware-based encryption, IPSec and threat safeguarding.
-
Cloud-Optimised: Hybrid cloud and edge-connected.
-
Enterprise Reliability: Provides N+1 power and high operating life.
-
Small Form: Best suited to the branch office and edge systems.
Technical Specifications
|
Feature |
Specification |
|
Brand |
Cisco |
|
Model / Part Number |
C8300-1N1S-6T |
|
Product Series |
Catalyst 8300 Series |
|
Product Type |
Enterprise Branch Router |
|
Performance Throughput |
Up to 16 Gbps |
|
Ethernet Ports |
6 x Gigabit Ethernet |
|
Management Port |
1 x RJ-45 |
|
Expansion Slots |
1 x NIM slot, 1 x SM slot |
|
SD-WAN Support |
Yes |
|
Security Features |
Hardware encryption, IPSec, firewall, secure boot |
|
Routing Protocols |
BGP, OSPF, EIGRP, RIP, static routing |
|
Network Standards |
IEEE 802.3, 802.3u, 802.3ab |
|
Power Supply |
Internal, redundant options supported |
|
Operating System |
Cisco IOS XE |
|
Mounting Options |
Rack-mountable |
|
Dimensions |
Compact 1RU chassis |
|
Throughput Capacity |
16 Gbps |
|
Use Case |
Branch offices, enterprise networks, hybrid cloud |
|
Warranty |
Limited Lifetime Warranty |
