Product Overview

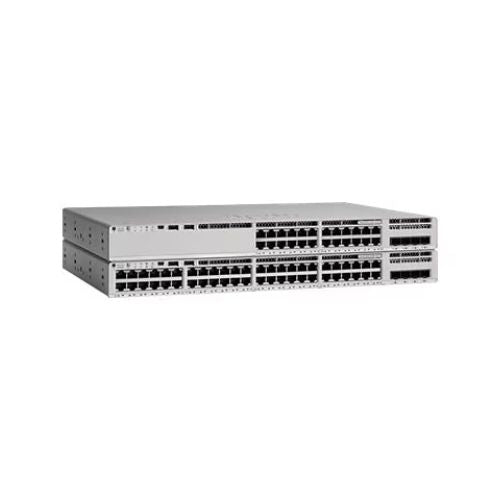

The Cisco C9200-24P-A Catalyst 9200 Series Switch provides high-performance, security, and scalability to the current network systems. It offers scalability and connectivity speed, so it is designed to support the mid-size to large business environment with 24 Gigabit Ethernet PoE+ and 4 x 10G SFP+ uplinks. The Layer 3 managed switch is scalable.
The C9200-24P-A is designed using the Network Advantage software by Cisco, which guarantees better visibility of the network, automation, and security, thereby being suitable for the wired access network. Its robust architecture, power efficiency, PoE+, and rack-mountable 1U features make it a secure option in the case of the branch offices, campuses, and enterprise applications.
Key Features
-
Enterprise-Class Switching: Provides secure, scalable, and high-performance Layer 3 switching.
-
24 PoE+ Ports: IEEE 802.3at enabled: Supports IP phones, cameras, and access points.
-
4 x 10G SFP+ Uplink: Provides high-bandwidth backbone interconnection and network upgrading.
-
Cisco Network Advantage Software: It offers superior security, segmentation, and automation appliances.
-
Strong Security: MACsec encryption and TrustSec are some of the features that offer security to data.
-
StackWise-160 Technology: Provides an easy scalability up to 160 Gbps of stacking bandwidth.
-
Energy Efficiency: Intelligently designed to have power management and low power consumption.
-
Advanced Management: Cisco DNA Center, CLI, SNMP, and web-based configuration.
-
High Availability: Backup power and fans to enhance high uptime and reliability.
-
Rack-Mountable Design: 1U form factor to easily accommodate in standard racks.
Technical Specifications
|
Feature |
Specification |
|
Brand |
Cisco |
|
Model |
C9200-24P-A |
|
Product Type |
Managed Layer 3 Network Switch |
|
Series |
Catalyst 9200 |
|
Software Feature Set |
Network Advantage |
|
Total Ethernet Ports |
24 x 10/100/1000 (PoE+) |
|
Uplink Ports |
4 x 10G SFP+ |
|
PoE Standard |
IEEE 802.3at (PoE+) |
|
PoE Power Budget |
445W |
|
Switching Capacity |
128 Gbps |
|
Forwarding Rate |
95.23 Mpps |
|
Stacking Bandwidth |
Up to 160 Gbps |
|
MAC Address Table Size |
32,000 entries |
|
Network Layer Support |
Layer 2 and Layer 3 |
|
Management Interface |
Web UI, CLI, SNMP, Cisco DNA Center |
|
Power Supply |
Internal, replaceable |
|
Cooling |
Redundant variable-speed fans |
|
Mount Type |
Rack-Mountable (1U) |
|
Operating Temperature |
32°F – 113°F (0°C – 45°C) |
|
Dimensions (H x W x D) |
1.73 x 17.5 x 13.8 in (approx.) |
|
Weight |
14.8 lbs (approx.) |
|
Part Number |
C9200-24P-A |
